Name: Catalyst 5: Catalyst Stroller Handle Back Post With Removable Stroller Handle Extension (depth Adjustable)
Manufacturer: Ki Mobility

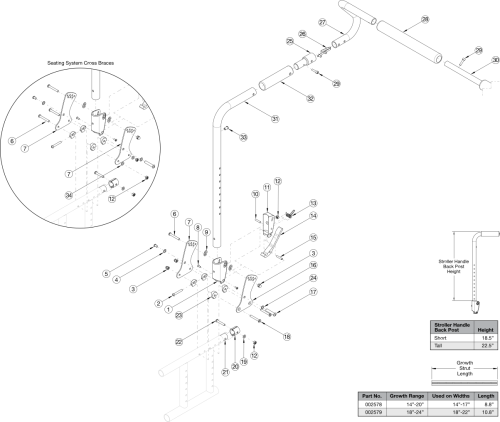

Catalyst Stroller Handle Back Post With Removable Stroller Handle Extension (depth Adjustable) parts diagram
(Click on image to enlarge)

This backrest style and removable stroller handle extension was released February 8th, 2021 If changing from another style backrest and the Drum Brake is present, a new Drum Brake Cable Kit may be required
Pos. Part # Description Price UOM Buy
25, 26, 27a, 27b, 28, 29, 30a, 31a, 32, 33 112640 Stroller Handle Back Post, Short, with Removable Stroller Handle Extension Assembly, 14-17" Wide, Catalyst/Spark, PAIR- This kit does not contain any backrest hardware. For a complete retrofit, select this kit and the desired Depth Adjustable Backrest Hardware Assembly. If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake.
$315.90
EA
25, 26, 27a, 27b, 28, 29, 30a, 31b, 32, 33 112641 Stroller Handle Back Post, Tall, with Removable Stroller Handle Extension Assembly, 14-17" Wide, Catalyst/Spark, PAIR- This kit does not contain any backrest hardware. For a complete retrofit, select this kit and the desired Depth Adjustable Backrest Hardware Assembly. If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake.
$315.90
EA
25, 26, 27a, 27b, 28, 29, 30b, 31a, 32, 33 112642 Stroller Handle Back Post, Short, with Removable Stroller Handle Extension Assembly, 18-22" Wide, PAIR- This kit does not contain any backrest hardware. For a complete retrofit, select this kit and the desired Depth Adjustable Backrest Hardware Assembly. If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake.
$318.60
EA
25, 26, 27a, 27b, 28, 29, 30b, 31b, 32, 33 112643 Stroller Handle Back Post, Tall, with Removable Stroller Handle Extension Assembly, 18-22" Wide, PAIR- This kit does not contain any backrest hardware. For a complete retrofit, select this kit and the desired Depth Adjustable Backrest Hardware Assembly. If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake.
$318.60
EA
25, 26, 27a, 27b, 28, 29, 30a 112644 Removable Stroller Handle Extension Assembly, 14" - 17" Wide, Catalyst/Spark, PAIR- This kit does not contain back posts or backrest hardware
$210.42
EA
25, 26, 27a, 27b, 28, 29, 30b 112645 Removable Stroller Handle Extension Assembly, 18" - 22" Wide, PAIR- This kit does not contain back posts or backrest hardware
$213.11
EA
31a, 32, 33 112646 Stroller Handle Back Post for Removable Stroller Handle Extension, Short- If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake
$52.74
EA
31b, 32, 33 112647 Stroller Handle Back Post for Removable Stroller Handle Extension, Tall- If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake
$52.74
EA
1 - 15, 16a, 17 - 20, 22 - 24 112603 Depth Adjustable Backrest Hardware Assembly, for Std Cross Braces, Left Side
$149.55
EA
1 - 15, 16b, 17 - 20, 22 - 24 112604 Depth Adjustable Backrest Hardware Assembly, for Std Cross Braces, Right Side
$149.55
EA
1 - 15, 17 - 20, 22, 23, 34 112605 Depth Adjustable Backrest Hardware Assembly, for Seating Cross Braces, One Side
$154.85
EA
1 - 15, 17 - 20, 22, 23, 34 112606 Depth Adjustable Backrest Hardware Assembly, for Seating Cross Braces, PAIR
$309.67
EA
1, 9 503834 Cover Plate, Latch Insert Kit
$28.36
EA
2 100797 M6 x 40 BHCS BLK ZC
$1.17
EA
3 100558 M6 NYL INS Domed Cap L/N ZC
$1.17
EA
4 101701 Washer 3.315/.350 x .425/.525 x .059/.067 18-8 F/W
$2.94
EA
5 101184 M6 x 10 BTN SHCS BLKZC w/Patch
$1.77
EA
6 100670 M6 x 45 BTN SHCS BLK ZC
$1.77
EA
7 111833 Depth Adjustable Back Plate, Folding- Use quantity 1 per side if standard cross braces are present. Use quantity 2 per side if seating system cross braces are present.
$25.98
EA
8 101818 M4 x 10 FHCS BLKZC w/Patch
$1.17
EA
9 001897 Washer, Dual, PSA
$2.34
EA
10 102694 Dowel Pin, M5 X 24, Blk Zn
$1.77
EA
11 001895 Latch Insert, Folding Backrest
$7.39
EA
12 100658 M6 Nylock Nut Blk Zn- Use quantity 2 per side if standard cross braces are present. Use quantity 4 per side if seating system cross braces are present.
$1.17
EA
13 001896 Spring, Backrest Latch
$0.60
EA
14 001893 Latch Lever, Backrest
$14.94
EA
15 002513 Threaded Barrel, 5mm OD x M4
$2.17
EA
16a 111835 Depth Adjustable Back Plate, Inner, Folding, Left- Only used when standard cross braces are present
$25.98
EA
16b 111834 Depth Adjustable Back Plate, Inner, Folding, Right- Only used when standard cross braces are present
$25.98
EA
17 003284 Binding Post, 8mm x 40mm x M6
$1.64
EA
18 101592 M6 x 45 CLS10.9 DIN7991 FHCS BLKZC
$2.94
EA
19 100746 M6 Flat Washer Blk Zn
$1.77
EA
20 114443 Tube Spacer, Black, 1" OD x .083" x .80 LG- Replacement for part number 001230
$3.78
EA
21 000605 Depth Adjustable Frame Extension Tube, Catalyst/Spark
$41.58
EA
22 101811 M6 x 35 BHCS Blk Zn
$1.17
EA
23 000612 1" Half Saddle Washer
$2.15
24 101861 Nylon Washer 5/16 x 1/2 x .03- Only used when standard cross braces are present
$0.60
EA
25 001243 Stroller Handle Adaptor
$36.24
EA
26 100533 Detent Button
$4.02
EA
27a, 28 501091 Stroller Handle with Foam Grip, Left
$57.28
EA
27b, 28 501090 Stroller Handle with Foam Grip, Right
$57.28
EA
29 101843 M5 x 20 SHCS Blk Zn
$0.60
EA
30a 002578 Growth Strut, Stroller, Short- Used on chair widths 14-17" Wide
$28.79
EA
30b 002579 Growth Strut, Stroller, Long- Used on chair widths 18-22" Wide
$31.51
EA
34 102803 Washer Flat .250 x .500 x .027 HX BLZ- Only used when seating system cross braces are present
$1.77
EA
