Catalyst E And 4e

Name: Catalyst E and 4E: Catalyst E Back Upholstery Padded Hook And Loop Adjustable
Manufacturer: Ki Mobility

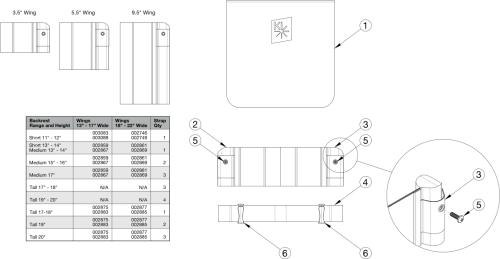

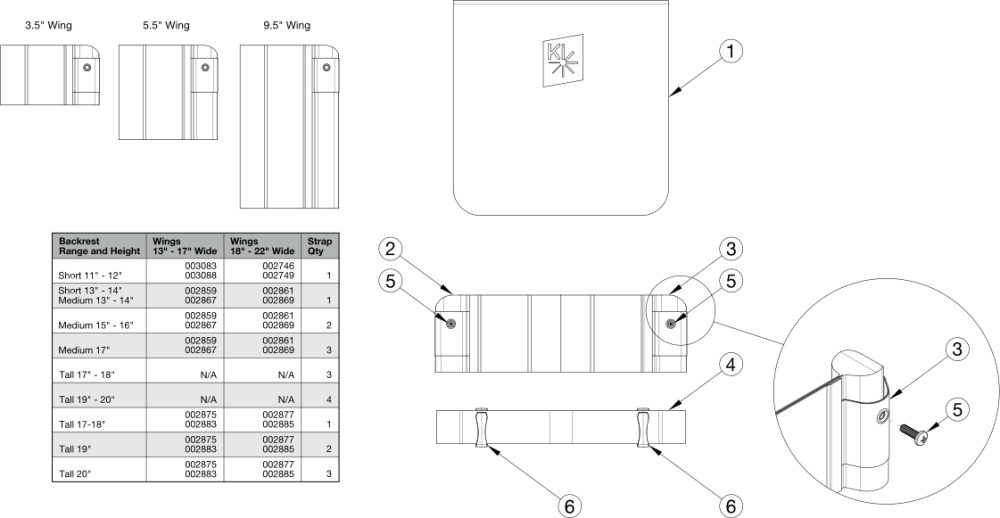

Catalyst E Back Upholstery Padded Hook And Loop Adjustable parts diagram
(Click on image to enlarge)

Pos. Part # Description Price UOM Buy
1a, 2a, 3a, 4a, 5, 6 115856 Back Upholstery Assembly Hook and Loop Adjustable 14" Wide, 11-12 Height
$365.03
EA
1a, 2c, 3c, 4a, 5, 6 115857 Back Upholstery Assembly Hook and Loop Adjustable 14" Wide, 13-14 Height
$365.03
EA
1b, 2c, 3c, 4a, 5, 6 115858 Back Upholstery Assembly Hook and Loop Adjustable 14" Wide, 15-16 Height
$410.07
EA
1c, 2e, 3e, 4a, 5, 6 115859 Back Upholstery Assembly Hook and Loop Adjustable 14" Wide, 17-20 Height
$454.87
EA
1d, 2a, 3a, 4b, 5, 6 115860 Back Upholstery Assembly Hook and Loop Adjustable 16" Wide, 11-12 Height
$376.23
EA
1d, 2a, 3a, 4b, 5, 6 115861 Back Upholstery Assembly Hook and Loop Adjustable 16" Wide, 13-14 Height
$376.23
EA
1e, 2c, 3c, 4b, 5, 6 115862 Back Upholstery Assembly Hook and Loop Adjustable 16" Wide, 15-16 Height
$421.25
EA
1f, 2e, 3e, 4b, 5, 6 115863 Back Upholstery Assembly Hook and Loop Adjustable 16" Wide, 17-20 Height
$454.87
EA
1g, 2b, 3b, 4c, 5, 6 115864 Back Upholstery Assembly Hook and Loop Adjustable 18" Wide, 11-12 Height
$387.43
EA
1g, 2d, 3d, 4c, 5, 6 115865 Back Upholstery Assembly Hook and Loop Adjustable 18" Wide, 13-14 Height
$387.43
EA
1h, 2d, 3d, 4c, 5, 6 115866 Back Upholstery Assembly Hook and Loop Adjustable 18" Wide, 15-16 Height
$432.46
EA
1i, 2f, 3f, 4c, 5, 6 115867 Back Upholstery Assembly Hook and Loop Adjustable 18" Wide, 17-20 Height
$454.87
EA
1j, 2b, 3b, 4d, 5, 6 115868 Back Upholstery Assembly Hook and Loop Adjustable 20" Wide, 11-12 Height
$400.88
EA
1j, 2d, 3d, 4d, 5, 6 115869 Back Upholstery Assembly Hook and Loop Adjustable 20" Wide, 13-14 Height
$400.88
EA
1k, 2d, 3d, 4d, 5, 6 115870 Back Upholstery Assembly Hook and Loop Adjustable 20" Wide, 15-16 Height
$450.38
EA
1l, 2f, 3f, 4d, 5, 6 115871 Back Upholstery Assembly Hook and Loop Adjustable 20" Wide, 17-20 Height
$472.80
EA
1m, 2d, 3d, 4e, 5, 6 115872 Back Upholstery Assembly Hook and Loop Adjustable 22" Wide, 13-16 Height
$467.19
EA
1n, 2f, 3f, 4e, 5, 6 115873 Back Upholstery Assembly Hook and Loop Adjustable 22" Wide, 17-20 Height
$489.60
EA
1a 002498 Backrest Cover 13" Rigid / 14" Cat x 11-14"
$238.51
EA
1b 002499 Backrest Cover 13" Rigid / 14" Cat x 13-16"
$238.51
EA
1c 003043 Backrest Cover 13" Rigid - 14" CAT/Liberty x 17-20"
$262.02
EA
1d 002506 Backrest Cover 15" Rigid / 16" Cat x 11-14"
$250.26
EA
1e 002507 Backrest Cover 15" Rigid / 16" Cat x 13-16"
$250.26
EA
1f 003045 Backrest Cover 15" Rigid - 16" CAT/Liberty x 17-20"
$262.02
EA
1g 003049 Backrest Cover 17" Rigid / 18" Cat x 11-14"
$262.02
EA
1h 003050 Backrest Cover 17" Rigid / 18" Cat x 13-16"
$262.02
EA
1i 003052 Backrest Cover 17" Rigid - 18" CAT/Liberty x 17-20"
$262.02
EA
1j 003061 Backrest Cover 19" Rigid / 20" Cat x 11-14"
$273.79
EA
1k 003062 Backrest Cover 19" Rigid / 20" Cat x 13-16"
$273.79
EA
1l 003064 Backrest Cover 19" Rigid - 20" CAT/Liberty x 17-20"
$273.79
EA
1m 003072 Backrest Cover 21" Rigid / 22" Cat x 13-16"
$291.44
EA
1n 003074 Backrest Cover 21" Rigid - 22" CAT/Liberty x 17-20"
$291.44
EA
2a 003088 Standard Upholstery Wing 3.5" Height 13" - 17" Wide, Left
$58.80
EA
2b 002749 Standard Upholstery Wing 3.5" Height 18" - 22" Wide, Left
$58.80
EA
2c 002867 Standard Upholstery Wing 5.5" Height 13-17" Wide Left
$58.80
EA
2d 002869 Standard Upholstery Wing 5.5" Height 18-22" Wide Left
$58.80
EA
2e 002883 Standard Upholstery Wing 9.5" Height 13-17" Wide Left
$70.57
EA
2f 002885 Standard Upholstery Wing 9.5" Height 18-22" Wide Left
$70.57
EA
3a 003083 Standard Upholstery Wing 3.5" Height 13" - 17" Wide, Right
$58.80
EA
3b 002746 Standard Upholstery Wing 3.5" Height 18" - 22" Wide, Right
$58.80
EA
3c 002859 Standard Upholstery Wing 5.5" Height 13-17" Wide Right
$58.80
EA
3d 002861 Standard Upholstery Wing 5.5" Height 18-22" Wide Right
$58.80
EA
3e 002875 Standard Upholstery Wing 9.5" Height 13-17" Wide Right
$70.57
EA
3f 002877 Standard Upholstery Wing 9.5" Height 18-22" Wide Right
$70.57
EA
4a 002537 Back Upholstery Strap 27.3"- Used on 14" chair widths
$17.65
EA
4b 002539 Back Upholstery Strap 31.3"- Used on 16" chair widths
$17.65
EA
4c 002741 Back Upholstery Strap 35.3"- Used on 18" chair widths
$17.65
EA
4d 002743 Back Upholstery Strap 39.3"- Used on 20" chair widths
$19.99
EA
4e 002745 Back Upholstery Strap 43.3"- Used on 22" chair widths
$19.99
EA
5 100734 M5 x 16 PHMS ZC
$1.77
EA
6 102736 Quick-Slip Keeper
$2.99
