Catalyst E And 4e

Name: Catalyst E and 4E: Catalyst E Handrims - Projection
Manufacturer: Ki Mobility

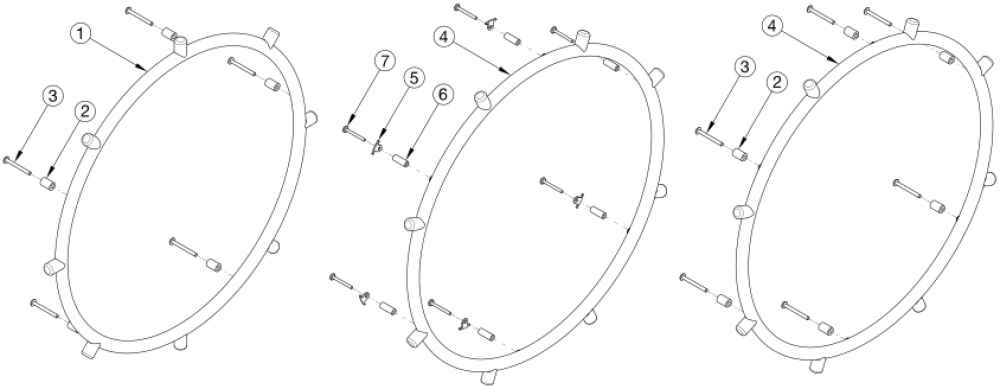

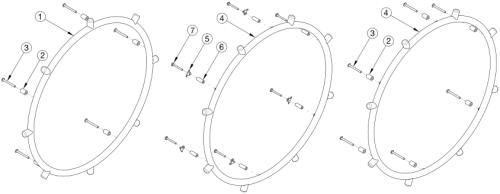

Catalyst E Handrims - Projection parts diagram
(Click on image to enlarge)

Handrim Hardware ChartFor more information see Handrim Hardware Chart. Quantity in Handrim Hardware Kits are for one wheel.
Pos. Part # Description Price UOM Buy
2, 3a 502171 Handrim Hardware Kit, 5 Rivet Nut, EACH- Used with X Core Mag wheels
$35.28
EA
5 - 7 502168 Handrim Hardware Kit, 6 Rivet Nut, EACH- Used with MAXX Spoke wheels
$41.16
EA
2, 3b 117377 Handrim Hardware Kit, Standard Mount, MAXX Mag, EACH- Used with MAXX Mag wheels
$34.80
EA
4a 112824 Handrim Projection, Vertical, 6 Rivet Nut 22"- Used on 22" MAXX Spoke and 22" MAXX Mag wheels. Replaced 100569.
$218.31
EA
4b 112825 Handrim Projection, Vertical, 6 Rivet Nut 24"- Used on 24" MAXX Spoke and 24" MAXX Mag wheels. Replaced part 200547.
$229.23
EA
4c 200548 Handrim Projection, Vertical, 6 Rivet Nut 25"- Used on 25" MAXX Spoke wheels
$229.23
EA
2 100629 Handrim Spacer Alum Ano Riv- Used with X Core Mag wheels (Qty 5 needed) and MAXX Mag wheels (Qty 6 needed)
$1.23
EA
3a 100724 M5 x 55 PH TRS HD M/S ZC- Used with X Core Mag wheels
$1.17
3b 103545 M5 x 50 DIN7985 PH PAN HD M/S BLK ZC- Used with MAXX Mag wheels
$4.56
5 100698 Handrim Tab- Used with MAXX Spoke wheels
$4.45
6 100653 Handrim Spacer Spoke- Used with MAXX Spoke wheels
$1.17
7 100654 M5 x 40 DIN7985 PH Pan HD M/S ZC- Used with MAXX Spoke wheels
$1.77
