Name: Ethos: Ethos Push And Pull To Lock
Manufacturer: Ki Mobility

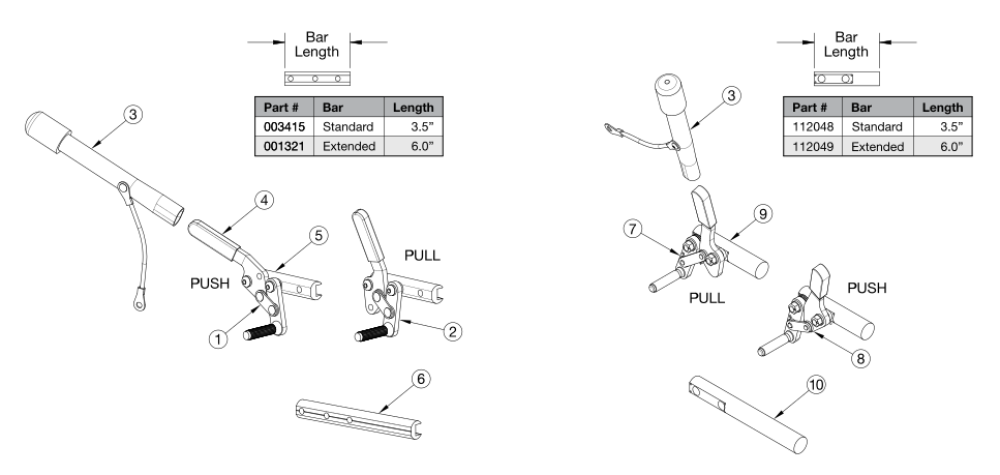

Ethos Push And Pull To Lock parts diagram
(Click on image to enlarge)

Notice: Chair configuration review required prior to parts being quoted or ordered. If adding Wheel Locks to a chair, new Front ISO Towers are required.
Pos. Part # Description Price UOM Buy
1a, 4, 5 503206 Wheel Lock Assembly, Push Right w/ Instruction- This kit contains 200251 wheel lock along with an instruction for reversing the wheel lock.
$43.69
EA
1b, 4, 5 503205 Wheel Lock Assembly, Push Left w/ Instruction- This kit contains 200252 wheel lock along with an instruction for reversing the wheel lock.
$43.69
EA
2a, 4, 5 503207 Wheel Lock Assembly, Pull Right w/ Instruction- This kit contains 200253 wheel lock along with an instruction for reversing the wheel lock.
$43.69
EA
2b, 4, 5 503208 Wheel Lock Assembly, Pull Left w/ Instruction- This kit contains 200254 wheel lock along with an instruction for reversing the wheel lock.
$43.69
EA
1a, 3 - 5 503209 Wheel Lock Assembly, Push Extension Right w/ Instruction- This kit contains 200410 wheel lock along with an instruction for reversing the wheel lock.
$57.37
EA
1b, 3 - 5 503210 Wheel Lock Assembly, Push Extension Left w/ Instruction- This kit contains 200411 wheel lock along with an instruction for reversing the wheel lock.
$57.37
EA
2a, 3 - 5 503211 Wheel Lock Assembly, Pull Extension Right w/ Instruction- This kit contains 200412 wheel lock along with an instruction for reversing the wheel lock.
$57.37
EA
2b, 3 - 5 503212 Wheel Lock Assembly, Pull Extension Left w/ Instruction- This kit contains 200413 wheel lock along with an instruction for reversing the wheel lock.
$57.37
EA
3 200369 Wheel Lock Extension
$39.98
EA
4 102336 Wheel Lock Cover Plastic
$2.44
EA
5 003415 Standard Wheel Lock Bar
$19.11
EA
6 001321 Wheel Lock Mount Bar Extended- Used as needed
$11.21
EA
8 - 9 115308 Wheel Lock Assembly, Push, Right with Instruction
$43.69
EA
8 - 9 115307 Wheel Lock Assembly, Push, Left with Instruction
$43.69
EA
7, 9 115305 Wheel Lock Assembly, Pull, Right with Instruction
$43.69
EA
7, 9 115306 Wheel Lock Assembly, Pull, Left with Instruction
$43.69
EA
3, 8 - 9 115311 Wheel Lock Assembly, Push w/ Extension, Right with Instruction
$57.37
EA
3, 8 - 9 115312 Wheel Lock Assembly, Push w/ Extension, Left with Instruction
$57.37
EA
3, 7, 9 115309 Wheel Lock Assembly, Pull w/ Extension, Right with Instruction
$57.37
EA
3, 7, 9 115310 Wheel Lock Assembly, Pull w/ Extension, Left with Instruction
$57.37
EA
10 112049 Wheel Lock Mount Bar Extended- Used as needed
$10.67
EA
