Name: Focus CR: Focus Cr Height Adjustable With Adjustable Handle Backrest
Manufacturer: Ki Mobility

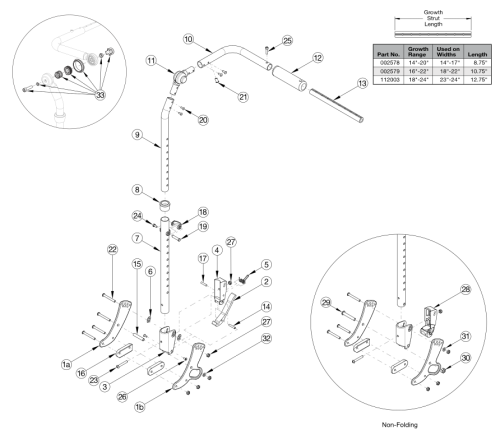

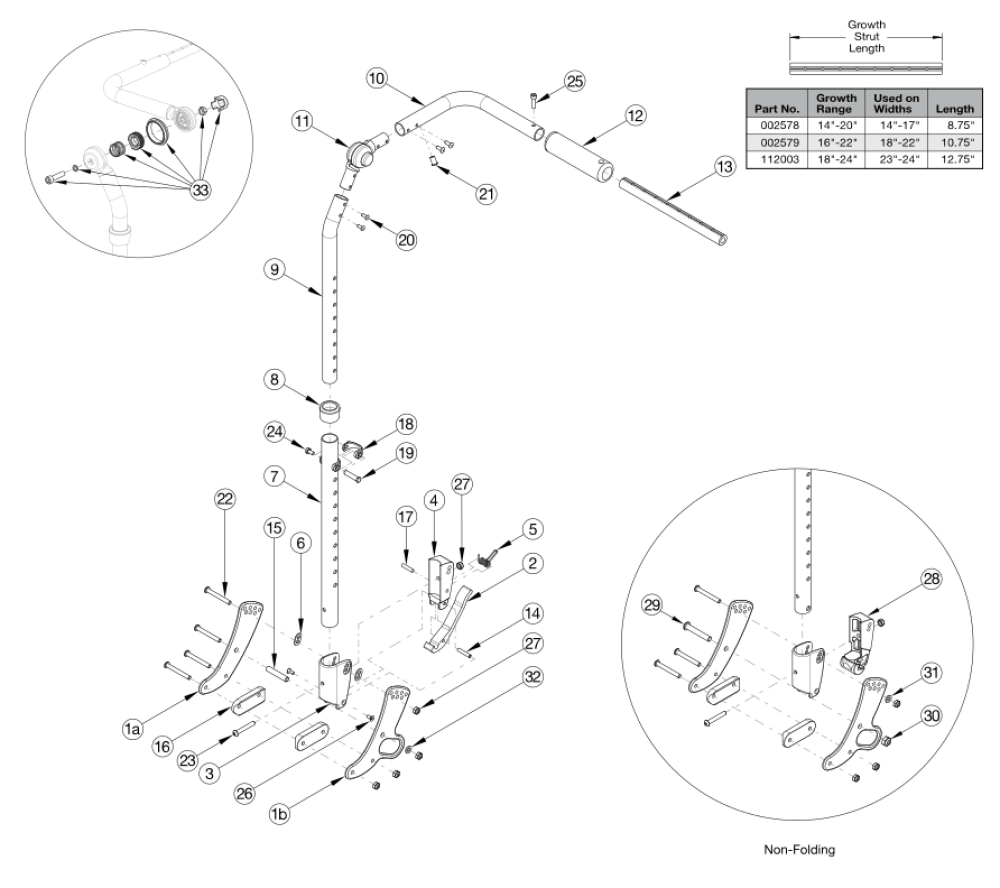

Focus Cr Height Adjustable With Adjustable Handle Backrest parts diagram
(Click on image to enlarge)

This Focus CR Height Adjustable Backrest is effective starting October 2015 with serial numbers prior to FCR0026599 and FCHD002333, unless a foot tilt or power tilt is present. If foot tilt or power tilt is present, this design effective starting with serial numbers FCR0033747 and FCHD002467. If changing from another style backrest and the hand tilt is present, a new Hand Tilt Cable/Trigger Kit may be required. If retrofitting from a foot tilt or power tilt to hand tilt and serial number is prior to FCR0033747 and FCHD002467, new back cane assemblies are required in addition to the hand tilt mechanism.
Pos. Part # Description Price UOM Buy
2 - 6, 7a, 8, 14, 17 - 19, 23, 24, 26, 27 502663 Back Assembly w/Latch Insert Lower Tube Height Adjustable Short Focus/CR45/Flip
$113.76
EA
2 - 6, 7b, 8, 14, 17 - 19, 23, 24, 26, 27 502664 Back Assembly w/Latch Insert Lower Tube Height Adjustable Tall Focus/CR45/Flip
$115.00
EA
3, 7a, 8, 18, 19, 24, 28 502673 Lower Tube w/Latch Insert Height Adjustable Back Short Non-Folding Focus/CR45/Flip
$97.64
EA
3, 7b, 8, 18, 19, 24, 28 502674 Lower Tube w/Latch Insert Height Adjustable Back Tall Non-Folding Focus/CR45/Flip
$98.86
EA
9, 10a, 11, 12, 20, 21 502665 Upper Back Tube Assembly Height Adj, Right Focus/Flip- Used if foot tilt or power tilt is present and serial number is prior to FCR0033747 and FCHD002467.
$290.34
EA
9, 10b, 11, 12, 20, 21 506758 Upper Back Tube Assembly Height Adjustable, Right Focus- Use if hand tilt mechanism is present and the serial number is after FCR0026599 and FCHD002333. If changing to a new hand tilt mechanism and serial number is prior to FCR0026599 and FCHD002333, this kit is required in addition to the hand tilt mechanism. Used if foot tilt or power tilt is present and serial number is or after FCR0033747 and FCHD002467.
$281.87
EA
9, 10a, 11, 12, 20, 21 502666 Upper Back Tube Assembly Height Adj, Left Focus/Flip- Used if foot tilt or power tilt is present and serial number is prior to FCR0033747 and FCHD002467.
$290.34
EA
9, 10b, 11, 12, 20, 21 506759 Upper Back Tube Assembly Height Adjustable, Left Focus- Use if hand tilt mechanism is present and the serial number is after FCR0026599 and FCHD002333. If changing to a new hand tilt mechanism and serial number is prior to FCR0026599 and FCHD002333, this kit is required in addition to the hand tilt mechanism. Used if foot tilt or power tilt is present and serial number is or after FCR0033747 and FCHD002467.
$281.87
EA
1a, 15, 16, 22, 27, 32 502675 Backrest Hardware Assembly, Single Side, Std Focus
$209.93
EA
1a, 1b, 15, 16, 22, 27, 32 502676 Backrest Hardware Assembly, Single Side, Transit Focus
$252.11
EA
1a, 16, 22, 27, 29 - 31 503102 Backrest Hardware Assembly, Single Side, Std Non-Folding Focus
$210.73
EA
1a, 1b, 16, 22, 27, 29 - 31 503103 Backrest Hardware Assembly, Single Side, Transit Non-Folding Focus
$252.92
EA
13a, 25 503107 Growth Strut Assembly Short, Focus/Flip- Used on chairs 14"-17" wide
$29.26
EA
13b, 25 503108 Growth Strut Assembly Long, Flip/Focus- Used on chairs 18"-22" wide
$31.96
EA
13c, 25 114289 Growth Strut Assembly Extra Long, Focus- Used on chairs 23"-24" wide
$35.35
EA
1a 001071 Back Plate Std TILT- Quantity of 4 used with non-transit. Quantity of 2 used with transit.
$94.89
1b 001421 Back Plate Transit Inner TILT- Quantity of 2 used with transit.
$137.09
EA
2 001893 Latch Lever, Backrest
$14.94
EA
3, 6 503834 Cover Plate, Latch Insert Kit
$28.36
EA
4 001895 Latch Insert, Folding Backrest
$7.39
EA
5 001896 Spring, Backrest Latch
$0.60
EA
6 001897 Washer, Dual, PSA
$2.34
EA
8 001083 Bushing Height Adjustable Back Tilt
$7.81
EA
13a 002578 Growth Strut, Stroller, Short
$28.79
EA
13b 002579 Growth Strut, Stroller, Long
$31.51
EA
13c 112003 Growth Strut, Stroller, Extra Long
$34.17
EA
14 002513 Threaded Barrel, 5mm OD x M4
$2.17
EA
15 002738 Spacer .313 OD x .243 ID x 1.68 long
$4.39
EA
16 002594 Saddle, Dual, 1" OD X 1.75 SP
$3.43
17 102694 Dowel Pin, M5 X 24, Blk Zn
$1.77
EA
18 000988 Fastener Retainer
$4.41
EA
19 000987 Threaded Fastener
$4.23
EA
22 101781 M6 x 50mm Partial Thread BHCS Blk ZC
$1.77
EA
23 100797 M6 x 40 BHCS BLK ZC
$1.17
EA
24 200427 M5 x 10 CLS8.8 HHCS ZC w/Patch DIN933
$0.60
EA
25 101843 M5 x 20 SHCS Blk Zn
$0.60
EA
26 101818 M4 x 10 FHCS BLKZC w/Patch
$1.17
EA
27 100658 M6 Nylock Nut Blk Zn
$1.17
EA
28 002035 Insert, Backrest, Non-Folding
$16.10
EA
29 101815 M8 x 50 BHCS Blk Zn
$4.12
EA
30 100659 M8 Nylock Nut Blk Zn
$1.17
EA
31 100746 M6 Flat Washer Blk Zn
$1.77
EA
32 101861 Nylon Washer 5/16 x 1/2 x .03
$0.60
EA
33 110524 Locking Hinge Button Assembly with Instruction- This kit contains the contents inside callout # 11. This assembly may not be compatible if chair was invoiced prior to 6/22/16
$41.11
EA
