Catalyst 5vx

Name: Catalyst 5Vx: Catalyst 5vx Drum Brake
Manufacturer: Ki Mobility

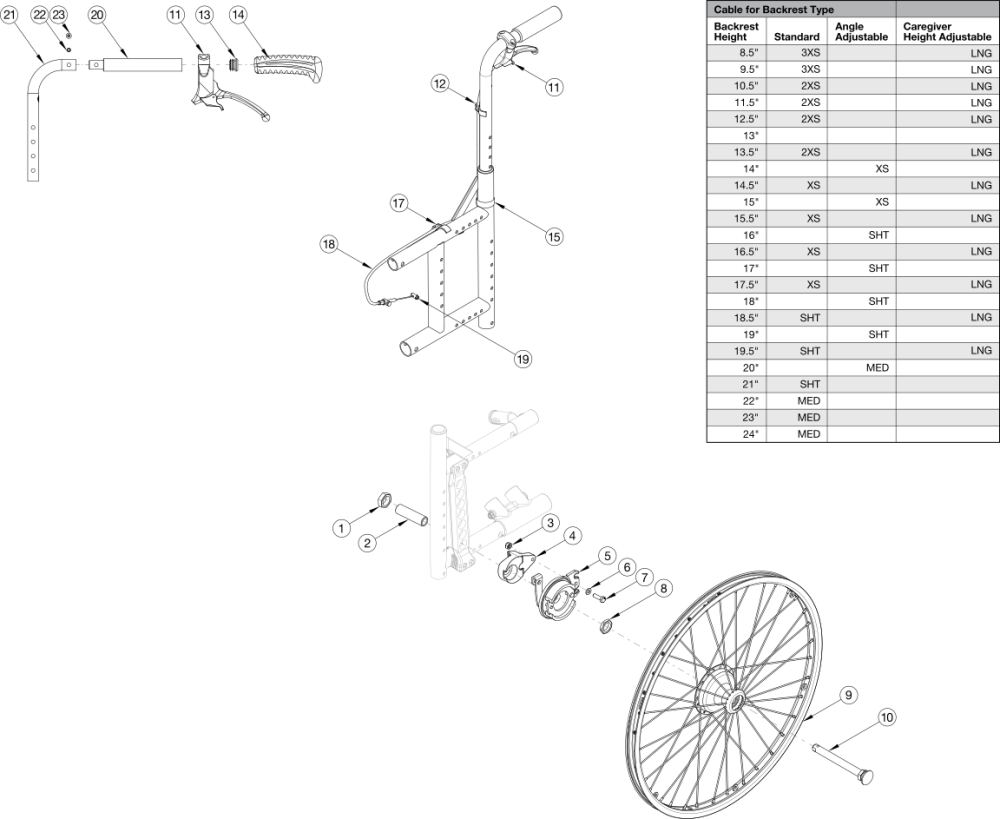

Catalyst 5vx Drum Brake parts diagram
(Click on image to enlarge)

Rotor ReferenceFor a complete retrofit, quote a drum brake retrofit kit (qty 1), backtube kit (qty 2) and drum brake cable kit (qty 2). Most Drum Brake Retrofit Kits contain two wheels, but do not contain rear tires or handrims. If 24" Pneumatic w/ Airless Insert tires are needed, please see kit 116569 which includes Pneumatic w/ Airless Insert tires and the inserts but no handrims.
Pos. Part # Description Price UOM Buy
1 - 4, 5a, 5b, 7, 8, 9a, 10, 18 113322 Drum Brake Retrofit Kit 20" MAXX Spoke, Catalyst 5VX
$889.62
EA
1 - 4, 5a, 5b, 7, 8, 9b, 10, 18 113323 Drum Brake Retrofit Kit 22" MAXX Spoke, Catalyst 5VX
$892.19
EA
1 - 4, 5a, 5b, 7, 8, 9c, 10, 18 113324 Drum Brake Retrofit Kit 24" MAXX Spoke, Catalyst 5VX
$893.92
EA
1 - 4, 5a, 5b, 7, 8, 9c, 10, 18 116569 Drum Brake Retrofit Kit 24" MAXX Spoke, Pneumatic w/ Airless Insert Tire (Gray), Cat 5Vx N/A EA Please Call
1 - 4, 5a, 5b, 7, 8, 9c, 10, 18 118239 Drum Brake Retrofit Kit 24" MAXX Spoke, Pneumatic w/ Airless Insert Tire (Black), Cat 5Vx- Replaced part number 116569
$1,055.76
EA
13, 14, 19, 20a, 21, 22 113299 Backtube Straight w/ Push Handle Short with Backcane Extension, Drum Brake, Catalyst 5/VX
$57.93
EA
13, 14, 19, 20b, 21, 22 113300 Backtube Straight w/ Push Handle Medium with Backcane Extension, Drum Brake, Catalyst 5/VX
$57.93
EA
13, 14, 19, 20c, 21, 22 113301 Backtube Straight w/ Push Handle Tall with Backcane Extension, Drum Brake, Catalyst 5/VX
$57.93
EA
13, 14, 19, 20d, 21, 22 113302 Backtube 8ยฐ Bend w/ Push Handle Medium with Backcane Extension, Drum Brake, Catalyst 5/VX
$67.11
EA
13, 14, 19, 20e, 21, 22 113303 Backtube 8ยฐ Bend w/ Push Handle Tall with Backcane Extension, Drum Brake, Catalyst 5/VX
$67.11
EA
13, 14, 19, 20f, 21, 22 113304 Backtube Straight Half Folding Back Upper w/ Push Handle Short with Backcane Extension, Drum Brake, Catalyst 5/VX- This is just the upper backtube assembly. If the Half Folding Backrest is not already present, you will need this kit along with backrest hinge latch assemblies and lower tube found on the Catalyst Half Folding Backrest page.
$51.86
13, 14, 19, 20g, 21, 22 113305 Backtube Straight Half Folding Back Upper w/ Push Handle Tall with Backcane Extension, Drum Brake, Catalyst 5/VX- This is just the upper backtube assembly. If the Half Folding Backrest is not already present, you will need this kit along with backrest hinge latch assemblies and lower tube found on the Catalyst Half Folding Backrest page.
$51.86
13, 14, 19, 20h, 21, 22 113306 Backtube 8ยฐ Bend Half Folding Back Upper w/ Push Handle Short with Backcane Extension, Drum Brake, Catalyst 5/VX- This is just the upper backtube assembly. If the Half Folding Backrest is not already present, you will need this kit along with backrest hinge latch assemblies and lower tube found on the Catalyst Half Folding Backrest page.
$68.88
13, 14, 19, 20i, 21, 22 113307 Backtube 8ยฐ Bend Half Folding Back Upper w/ Push Handle Tall with Backcane Extension, Drum Brake, Catalyst 5/VX- This is just the upper backtube assembly. If the Half Folding Backrest is not already present, you will need this kit along with backrest hinge latch assemblies and lower tube found on the Catalyst Half Folding Backrest page.
$68.88
13, 14, 19, 20j, 21, 22 113315 Backtube Angle Adjustable Upper w/ Push Handle Short with Backcane Extension, Drum Brake, Catalyst 5/VX- This is just the upper backtube assembly. If the Angle Adjustable Backrest is not already present, you will need this kit along with the Angle Adjustable Back Post Lower Assembly found on the Catalyst Angle Adjustable Backrest page.
$54.22
EA
13, 14, 19, 20k, 21, 22 113308 Backtube Angle Adjustable Upper w/ Push Handle Medium with Backcane Extension, Drum Brake, Catalyst 5/VX- This is just the upper backtube assembly. If the Angle Adjustable Backrest is not already present, you will need this kit along with the Angle Adjustable Back Post Lower Assembly found on the Catalyst Angle Adjustable Backrest page.
$54.22
EA
13, 14, 19, 20l, 21, 22 113309 Backtube Angle Adjustable Upper w/ Push Handle Tall with Backcane Extension, Drum Brake, Catalyst 5/VX- This is just the upper backtube assembly. If the Angle Adjustable Backrest is not already present, you will need this kit along with the Angle Adjustable Back Post Lower Assembly found on the Catalyst Angle Adjustable Backrest page.
$54.22
EA
11, 12, 15, 16, 17a 113292 Drum Brake Cable Kit with Brake Lever for 7/8" Tubing, 3XS, Catalyst 5/VX- Used with Straight with Push Handle, 8ยฐ Bend with Push Handle, Angle Adjustable with Push Handle or Half Folding back posts.
$46.43
11, 12, 15, 16, 17b 113293 Drum Brake Cable Kit with Brake Lever for 7/8" Tubing, 2XS, Catalyst 5/VX- Used with Straight with Push Handle, 8ยฐ Bend with Push Handle, Angle Adjustable with Push Handle or Half Folding back posts.
$46.43
11, 12, 15, 16, 17c 113294 Drum Brake Cable Kit with Brake Lever for 7/8" Tubing, XS, Catalyst 5/VX- Used with Straight with Push Handle, 8ยฐ Bend with Push Handle, Angle Adjustable with Push Handle or Half Folding back posts.
$46.43
11, 12, 15, 16, 17d 113295 Drum Brake Cable Kit with Brake Lever for 7/8" Tubing, Short, Catalyst 5/VX- Used with Straight with Push Handle, 8ยฐ Bend with Push Handle, Angle Adjustable with Push Handle or Half Folding back posts.
$43.69
11, 12, 15, 16, 17e 113296 Drum Brake Cable Kit with Brake Lever for 7/8" Tubing, Medium, Catalyst 5/VX- Used with Straight with Push Handle, 8ยฐ Bend with Push Handle, Angle Adjustable with Push Handle or Half Folding back posts.
$43.69
1 - 4, 5a, 5b, 7, 8, 10, 18 113317 Drum Brake Rotor Kit with Hardware PAIR, Catalyst 5VX
$630.99
EA
1 - 4, 7, 8, 10, 18 113318 Hardware Kit for Drum Brake Rotor PAIR, Catalyst 5VX
$263.72
EA
1 - 4, 5a, 7, 8, 10, 18 113319 Drum Brake Rotor Kit with Hardware, Side B, Catalyst 5VX
$315.49
EA
1 - 4, 5b, 7, 8, 10, 18 113320 Drum Brake Rotor Kit with Hardware, Side A, Catalyst 5VX
$315.49
EA
1 - 4, 7, 8, 10, 18 113321 Hardware Kit for Drum Brake Rotor, One Side, Catalyst 5VX
$131.86
EA
9a 111731 Wheel 20" MAXX Spoke, Drum Brake
$129.32
EA
9b 111732 Wheel 22" MAXX Spoke, Drum Brake
$130.61
EA
9c 111733 Wheel 24" MAXX Spoke, Drum Brake
$131.47
EA
9d 118358 24" Spoke for Drum Brake, Pneumatic w/ Airless Insert Tire (Black)- Replaced part number 117432. Does not include the handrim. Quote handrim hardware if needed.
$212.39
10 101191 Axle Quick Release w/ Button 1/2" x 110MM
$62.32
EA
11 111735 Brake Lever, Lock, Ang, 22mm
$14.90
12 001118 Cable Clip 7/8"
$4.28
EA
15 111806 Cable Tie, 8"
$3.18
16 001117 Cable Clip 1"
$4.28
EA
17a 111606 Cable, Drum Brake, 3XS
$17.13
17b 111545 Cable, Drum Brake, 2XS
$17.13
17c 111546 Cable, Drum Brake, XS
$17.13
EA
17d 002468 Cable, Drum Brake, Short
$14.40
EA
17e 002469 Cable, Drum Brake, Medium
$14.40
EA
18 111598 Drum Brake, Pinch Bolt
$2.64
EA
