Catalyst E And 4e

Name: Catalyst E and 4E: Catalyst E Armrests - Tall Height Adjustable Flip Back T-arm
Manufacturer: Ki Mobility

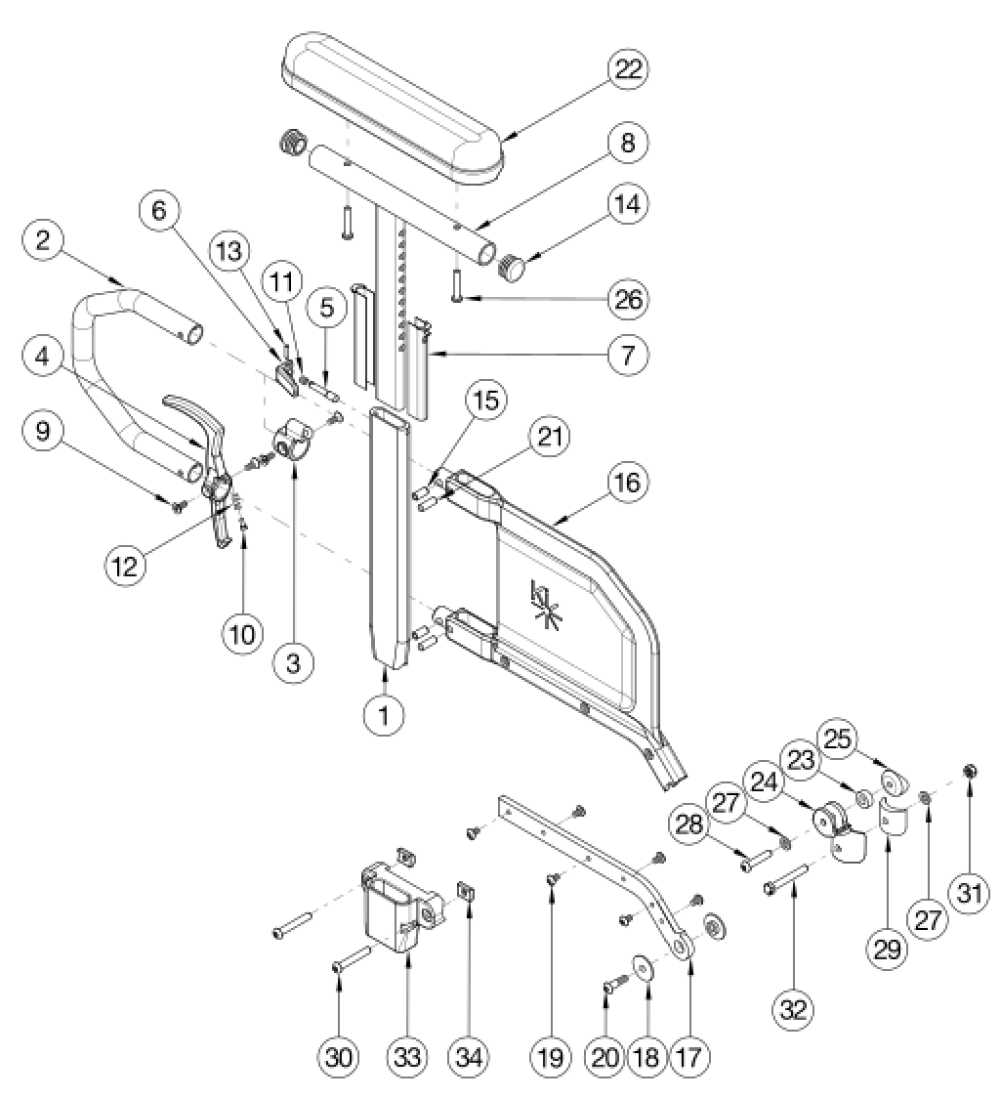

Catalyst E Armrests - Tall Height Adjustable Flip Back T-arm parts diagram
(Click on image to enlarge)

Short assemblies used with 14" - 17" Seat Depths. Long assemblies used with 18" - 20" Seat Depths.
Pos. Part # Description Price UOM Buy
1 - 7, 8a, 9 - 15, 16a, 17a, 18 - 21, 22b, 24 - 26, 30 - 35 116560 Height Adjustable Flip Back Tall T-Arm Short Desk with Standard Pad and Receiver Assembly, Catalyst E
$460.61
EA
1 - 7, 8b, 9 - 15, 16a, 17a, 18 - 21, 22a, 24 - 26, 30 - 35 116561 Height Adjustable Flip Back Tall T-Arm Short Full with Standard Pad and Receiver Assembly, Catalyst E
$460.61
EA
1 - 7, 8a, 9 - 15, 16b, 17b, 18 - 21, 22b, 24 - 26, 30 - 35 116562 Height Adjustable Flip Back Tall T-Arm Long Desk with Standard Pad and Receiver Assembly, Catalyst E
$460.61
EA
1 - 7, 8b, 9 - 15, 16b, 17b, 18 - 21, 22a, 24 - 26, 30 - 35 116563 Height Adjustable Flip Back Tall T-Arm Long Full with Standard Pad and Receiver Assembly, Catalyst E
$460.61
EA
1 - 7, 8a, 9 - 15, 16a, 17a, 18 - 21, 22b, 24 - 26, 31, 32 116556 Height Adjustable Flip Back Tall T-Arm Short Desk with Standard Pad Assembly, Catalyst E
$394.17
EA
1 - 7, 8b, 9 - 15, 16a, 17a, 18 - 21, 22a, 24 - 26, 31, 32 116557 Height Adjustable Flip Back Tall T-Arm Short Full with Standard Pad Assembly, Catalyst E
$394.17
EA
1 - 7, 8a, 9 - 15, 16b, 17b, 18 - 21, 22b, 24 - 26, 31, 32 116558 Height Adjustable Flip Back Tall T-Arm Long Desk with Standard Pad Assembly, Catalyst E
$394.17
EA
1 - 7, 8b, 9 - 15, 16b, 17b, 18 - 21, 22a, 24 - 26, 31, 32 116559 Height Adjustable Flip Back Tall T-Arm Long Full with Standard Pad Assembly, Catalyst E
$394.17
EA
1 - 7, 9 - 13, 15, 16a, 17a, 19, 21 114152 Height Adjustable Flip Back T-Arm Short Lower Assy, Tall- Does not include t-arm upper, arm pad or arm pad screws
$170.30
EA
1 - 7, 9 - 13, 15, 16b, 17b, 19, 21 114153 Height Adjustable Flip Back T-Arm Long Lower Assy, Tall- Does not include t-arm upper, arm pad or arm pad screws
$170.30
EA
1 - 7, 8a, 9 - 15, 16a, 17a, 19, 21 114436 Height Adjustable Flip Back T-Arm Desk, Short, Tall- Does not include arm pad or arm pad screws
$325.86
EA
1 - 7, 8b, 9 - 15, 16a, 17a, 19, 21 114437 Height Adjustable Flip Back T-Arm Short, Full, Tall- Does not include arm pad or arm pad screws
$325.86
EA
1 - 7, 8a, 9 - 15, 16b, 17b, 19, 21 114438 Height Adjustable Flip Back T-Arm Long, Desk, Tall- Does not include arm pad or arm pad screws
$325.86
EA
1 - 7, 8b, 9 - 15, 16b, 17b, 19, 21 114439 Height Adjustable Flip Back T-Arm Long, Full, Tall- Does not include arm pad or arm pad screws
$325.86
EA
1 - 7, 9 - 13, 15, 16a, 17a, 18 - 21, 24, 25, 31, 32 504567 Height Adjustable Flip Back T-Arm Short Retrofit Assembly, Catalyst 5- This kit is used to retrofit from a Height Adjustable T-Arm to a Height Adjustable Flip Back Tall T-Arm. This kit is to retrofit one side.
$223.44
EA
1 - 7, 9 - 13, 15, 16b, 17b, 18 - 21, 24, 25, 31, 32 504568 Height Adjustable Flip Back T-Arm Long Retrofit Assembly, Catalyst 5- This kit is used to retro fit from a Height Adjustable T-Arm to a Height Adjustable Flip Back Tall T-Arm. This kit is to retrofit one side.
$223.44
EA
18, 20, 24, 25 112958 Armrest Flip Back Height Adj T-Arm Hinge Assembly, PAIR, Catalyst 5- This kit is for a pair of hinge assemblies. A pair is required as a replacement as of May 19th, 2021
$46.12
EA
30, 33 - 34 116058 Height Adjustable Flip Back Receiver Assm Cat E
$19.19
EA
31, 32 504577 Height Adjustable Flip Back T-Arm Mounting Hardware Assembly- This kit contains various mounting hardware for multiple configurations
$15.29
EA
3, 5, 6, 9, 11, 13 504560 Height Adjustable Flip Back T-Arm Latch Assembly
$50.87
EA
4, 9, 10, 12 504561 Height Adjustable Flip Back T-Arm Release Lever Assembly
$13.03
EA
1 115983 Height Adjustable Flip Back T-Arm Post Tall
$28.10
EA
2 113138 Height Adjustable T-Arm Transfer Tube, Tall
$36.74
EA
7 000090 Height Adjustable T Armrest Shim
$2.86
8a, 14 116564 Height Adj Tall T Armrest Upper Desk w/ Tube End Plug
$85.82
EA
8b, 14 116565 Height Adj T Armrest Upper Full w/ Tube End Plug
$85.82
EA
14 100803 Tube End Plug 7/8"
$1.77
EA
15, 16a, 21 113143 Height Adjustable Flip Back T-Arm Short Shield, Tall
$37.31
EA
15, 16b, 21 113142 Height Adjustable Flip Back T-Arm Long Side Shield, Tall
$37.31
EA
17a, 19 504564 Height Adjustable Flip Back T-Arm Metal Insert Short
$37.63
EA
17b, 19 504565 Height Adjustable Flip Back T-Arm Metal Insert Long
$39.99
EA
22a 100500 Arm Pad Full
$26.45
EA
22b 100501 Arm Pad Desk
$26.45
EA
23 003260 Spacer, .62ODx.316IDx.090L
$0.43
EA
26 100696 M5 x 30mm PPH Capscrew
$1.77
EA
27 100746 M6 Flat Washer Blk Zn
$1.77
EA
28 102625 M6 X 30 BHCS BLK ZC
$1.77
EA
29 111976 Flip Back T-Arm Spacer, Catalyst E
$7.09
EA
30 100797 M6 x 40 BHCS BLK ZC
$1.17
EA
33 112010 T-Arm Receiver
$3.42
EA
34 111954 Threaded Half Nut Plate
$6.72
EA
35 100831 1/2" Washer OD .040" Thick
$1.77
EA
