Cr45
Name: CR45: Cr45 Axle Plate
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

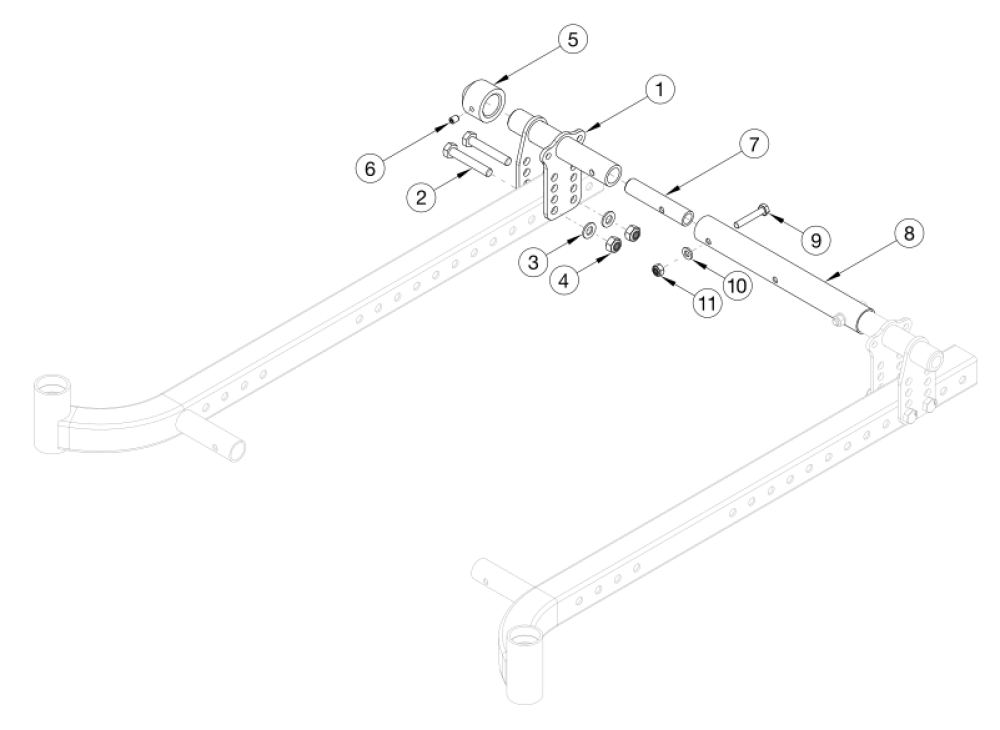

Part Picture
(Click on image to enlarge)
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1 | 112500 | Weldment Axle Plate, CR45 |
$56.48
|
|
||
| 2 | 112533 | HHCS, M8x1.25x50, CLS10.9, BLZ, ISO7380 |
$1.45
|
EA |
|
|
| 3 | 101858 | Washer Flat M8 Blk Zn |
$0.61
|
EA |
|
|
| 4 | 100659 | M8 Nylock Nut Blk Zn |
$1.19
|
EA |
|
|
| 5 | 112503 | Spacer, Wheel, .47"- Used when the Attendant Foot Lock and 12" or 16" wheels are present. Also used when the Attendant Foot Lock OR T-Arms are present in combination with the MAXX Mag wheels. | Used when the Attendant Foot Lock and 12" or 16" wheels are present. Also used when the Attendant Foot Lock OR T-Arms are present in combination with the MAXX Mag wheels. |
$19.03
|
EA |
|
| 6 | 102090 | M6 Set Screw Flat Point |
$3.00
|
EA |
|
|
| 7 | 112501 | Threaded Axle Receiver |
$21.53
|
EA |
|
|
| 8a | 112450 | Frame Strut Tube 14W |
$16.70
|
EA |
|
|
| 8b | 112451 | Frame Strut Tube 15W |
$17.41
|
EA |
|
|
| 8c | 112452 | Frame Strut Tube 16W |
$18.13
|
EA |
|
|
| 8d | 112453 | Frame Strut Tube 17W |
$18.83
|
EA |
|
|
| 8e | 112454 | Frame Strut Tube 18W |
$19.90
|
EA |
|
|
| 8f | 112455 | Frame Strut Tube 19W |
$21.13
|
EA |
|
|
| 8g | 112456 | Frame Strut Tube 20W |
$21.85
|
EA |
|
|
| 8h | 112457 | Frame Strut Tube 21W |
$21.85
|
EA |
|
|
| 8i | 112458 | Frame Strut Tube 22W |
$23.46
|
EA |
|
|
| 9 | 102386 | M6 x 35mm HHCS Blk Zc |
$1.19
|
EA |
|
|
| 10 | 100746 | M6 Flat Washer Blk Zn |
$1.81
|
EA |
|
|
| 11 | 100658 | M6 Nylock Nut Blk Zn |
$1.19
|
EA |
|
