Cr45

Name: CR45: Cr45 Footplates - Angle Adjustable Extension Mount
Manufacturer: Ki Mobility

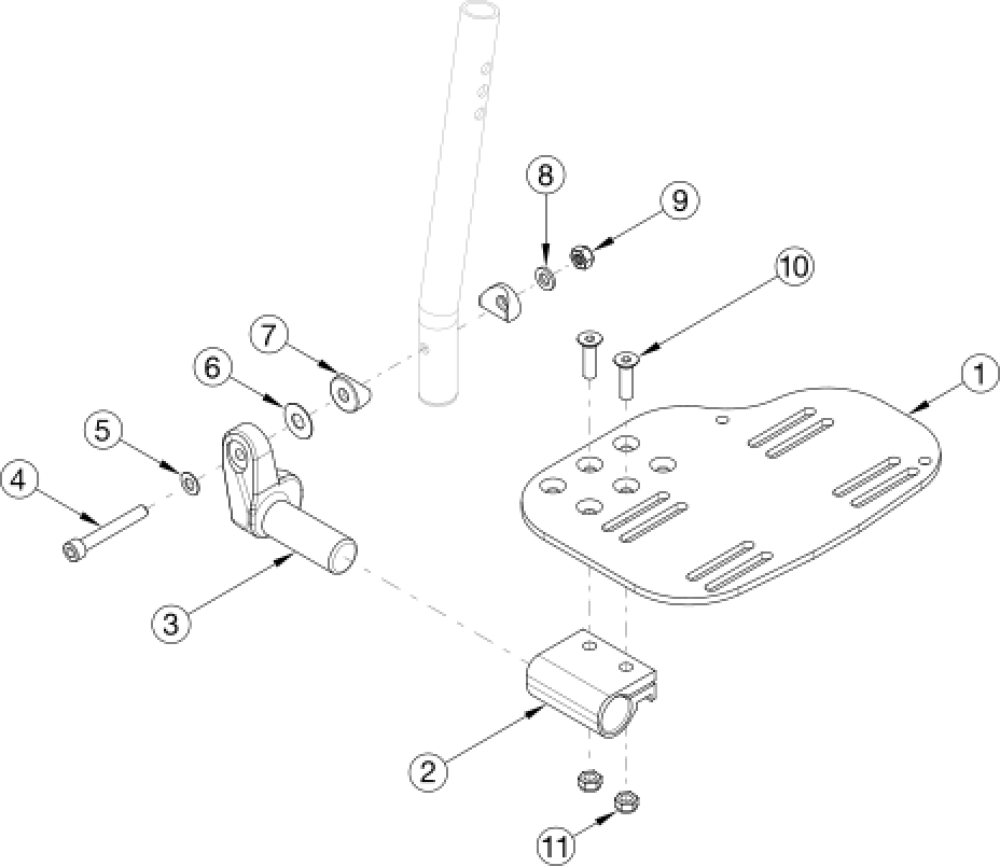

Cr45 Footplates - Angle Adjustable Extension Mount parts diagram
(Click on image to enlarge)

Pos. Part # Description Price UOM Buy
2, 3b, 4 - 11 502202 Footplate Hardware Assembly Angle Adjustable Extension Mount/ELR Left
$53.24
EA
2, 3a, 5 - 12 502203 Footplate Hardware Assembly Angle Adjustable Extension Mount/ELR Right
$53.24
EA
2, 3a, 3b, 4 - 11 502204 Footplate Hardware Assembly Angle Adjustable Extension Mount/ELR Pair
$106.48
EA
1a, 2, 3b, 4 - 11 100252 Footplate Angle Adjustable 14-15 Wide Extension Mount Left/ELR Right Assembly
$132.48
EA
1b, 2, 3a, 4 - 11 100253 Footplate Angle Adjustable 14-15 Wide Extension Mount Right/ELR Left Assembly
$132.48
EA
1a, 1b, 2, 3a, 3b, 4 - 11 100254 Footplate Angle Adjustable 14-15 Wide Extension Mount/ELR PAIR Assembly
$264.98
EA
1c, 2, 3b, 4 - 11 100255 Footplate Angle Adjustable 16-17 Wide Extension Mount Left/ELR Right Assembly
$132.48
EA
1d, 2, 3a, 4 - 11 100256 Footplate Angle Adjustable 16-17 Wide Extension Mount Right/ELR Left Assembly
$132.48
EA
1c, 1d, 2, 3a, 3b, 4 - 11 100257 Footplate Angle Adjustable 16-17 Wide Extension Mount/ELR PAIR Assembly
$264.98
EA
1e, 2, 3b, 4 - 11 100258 Footplate Angle Adjustable 18-24 Wide Extension Mount Left/ELR Right Assembly
$132.48
EA
1f, 2, 3a, 4 - 11 100259 Footplate Angle Adjustable 18-24 Wide Extension Mount Right/ELR Left Assembly
$132.48
EA
1e, 1f, 2, 3a, 3b, 4 - 11 100260 Footplate Angle Adjustable 18-24 Wide Extension Mount/ELR PAIR Assembly
$264.98
EA
1a, 2, 3b, 4 - 11 502184 Footplate Kit Angle Adjustable w/ Heel Loop for Ext. Mount Hanger 14-15 Wide Left- Heel Loop with attaching hardware is included but not pictured
$149.33
EA
1b, 2, 3a, 4 - 11 502185 Footplate Kit Angle Adjustable w/ Heel Loop for Ext. Mount Hanger 14-15 Wide Right- Heel Loop with attaching hardware is included but not pictured
$149.33
EA
1a, 1b, 2, 3a, 3b, 4 - 11 502186 Footplate Kit Angle Adjustable w/ Heel Loop for Ext. Mount Hanger 14-15 Wide Pair- Heel Loop with attaching hardware is included but not pictured
$298.65
EA
1c, 2, 3b, 4 - 11 502187 Footplate Kit Angle Adjustable w/ Heel Loop for Ext. Mount Hanger 16-17 Wide Left- Heel Loop with attaching hardware is included but not pictured
$149.33
EA
1d, 2, 3a, 4 - 11 502188 Footplate Kit Angle Adjustable w/ Heel Loop for Ext. Mount Hanger 16-17 Wide Right- Heel Loop with attaching hardware is included but not pictured
$149.33
EA
1c, 1d, 2, 3a, 3b, 4 - 11 502189 Footplate Kit Angle Adjustable w/ Heel Loop for Ext. Mount Hanger 16-17 Wide Pair- Heel Loop with attaching hardware is included but not pictured
$298.65
EA
1e, 2, 3b, 4 - 11 502190 Footplate Kit Angle Adjustable w/ Heel Loop for Ext. Mount Hanger 18-24 Wide Left- Heel Loop with attaching hardware is included but not pictured
$149.33
EA
1f, 2, 3a, 4 - 11 502191 Footplate Kit Angle Adjustable w/ Heel Loop for Ext. Mount Hanger 18-24 Wide Right- Heel Loop with attaching hardware is included but not pictured
$149.33
EA
1e, 1f, 2, 3a, 3b, 4 - 11 502192 Footplate Kit Angle Adjustable w/ Heel Loop for Ext. Mount Hanger 18-24 Wide Pair- Heel Loop with attaching hardware is included but not pictured
$298.65
EA
1a 000105 Footplate Angle Adjustable 14-15" Wide CAT/TILT Left (Std ELR Right)
$70.93
EA
1b 000106 Footplate Angle Adjustable 14-15" Wide CAT/TILT Right (Std ELR Left)
$70.93
EA
1c 000107 Footplate Angle Adjustable 16-17" Wide CAT/TILT Left (Std ELR Right)
$70.93
EA
1d 000108 Footplate Angle Adjustable 16-17" Wide CAT/TILT Right (Std ELR Left)
$70.93
EA
1e 000109 Footplate Angle Adjustable 18-24" Wide CAT/TILT Left (Std ELR Right)
$70.93
EA
1f 000110 Footplate Angle Adjustable 18-24" Wide CAT/TILT Right (Std ELR Left)
$70.93
EA
2.0 100502 Angle Adj Footplate Clamp 2"
$14.81
EA
3a 000047 Footplate Angle Adjustable Casting 3/4 Right
$22.50
EA
3b 000049 Footplate Angle Adjustable Casting 3/4" Left
$22.50
EA
4.0 101472 M6 x 45 SHCS BLK ZC
$1.77
EA
5 101455 M6 Belleville Washer (.252 x .551 x .050)
$1.77
EA
6 000428 Wear Washer
$2.94
EA
7 000053 Saddle 3/4"
$1.77
8 100746 M6 Flat Washer Blk Zn
$1.77
EA
9 101456 M6 Ovl Top L/N ZC
$1.77
EA
10 100662 M6 x 25 FSHCS BLK ZC
$1.77
11 100658 M6 Nylock Nut Blk Zn
$1.17
EA
