Cr45

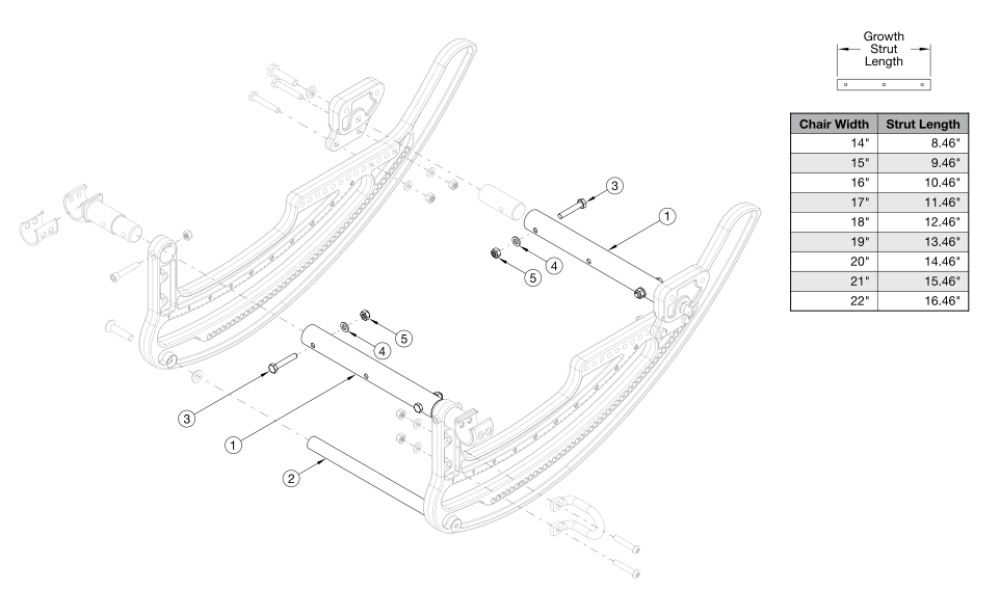

Name: CR45: Cr45 Rotary Frame - Growth
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility
Part Picture
(Click on image to enlarge)
If quoting a Left Frame for Australia or New Zealand, 122921 is required when transit is not present.
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1a | 112450 | Frame Strut Tube 14W |
$16.70
|
EA |
|
|
| 1b | 112451 | Frame Strut Tube 15W |
$17.41
|
EA |
|
|
| 1c | 112452 | Frame Strut Tube 16W |
$18.13
|
EA |
|
|
| 1d | 112453 | Frame Strut Tube 17W |
$18.83
|
EA |
|
|
| 1e | 112454 | Frame Strut Tube 18W |
$19.90
|
EA |
|
|
| 1f | 112455 | Frame Strut Tube 19W |
$21.13
|
EA |
|
|
| 1g | 112456 | Frame Strut Tube 20W |
$21.85
|
EA |
|
|
| 1h | 112457 | Frame Strut Tube 21W |
$21.85
|
EA |
|
|
| 1i | 112458 | Frame Strut Tube 22W |
$23.46
|
EA |
|
|
| 2a | 112460 | Rotary Strut 14W |
$26.65
|
|
||
| 2b | 112461 | Rotary Strut 15W |
$28.42
|
|
||
| 2c | 112462 | Rotary Strut 16W |
$30.20
|
|
||
| 2d | 112463 | Rotary Strut 17W |
$31.98
|
|
||
| 2e | 112464 | Rotary Strut 18W |
$33.76
|
|
||
| 2f | 112465 | Rotary Strut 19W |
$35.54
|
|
||
| 2h | 112466 | Rotary Strut 20W |
$37.31
|
|
||
| 2h | 112467 | Rotary Strut 21W |
$39.10
|
|
||
| 2i | 112468 | Rotary Strut 22W |
$40.86
|
|
||
| 3 | 102386 | M6 x 35mm HHCS Blk Zc |
$1.19
|
EA |
|
|
| 4 | 100746 | M6 Flat Washer Blk Zn- Use 12 with transit | Use 12 with transit |
$1.81
|
EA |
|
| 5 | 100658 | M6 Nylock Nut Blk Zn- Use 14 with transit | Use 14 with transit |
$1.19
|
EA |
|
