Name: Little Wave Clik: Clik 22" One Arm Drive Quick Release - Poly Coated Drive Handrim
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

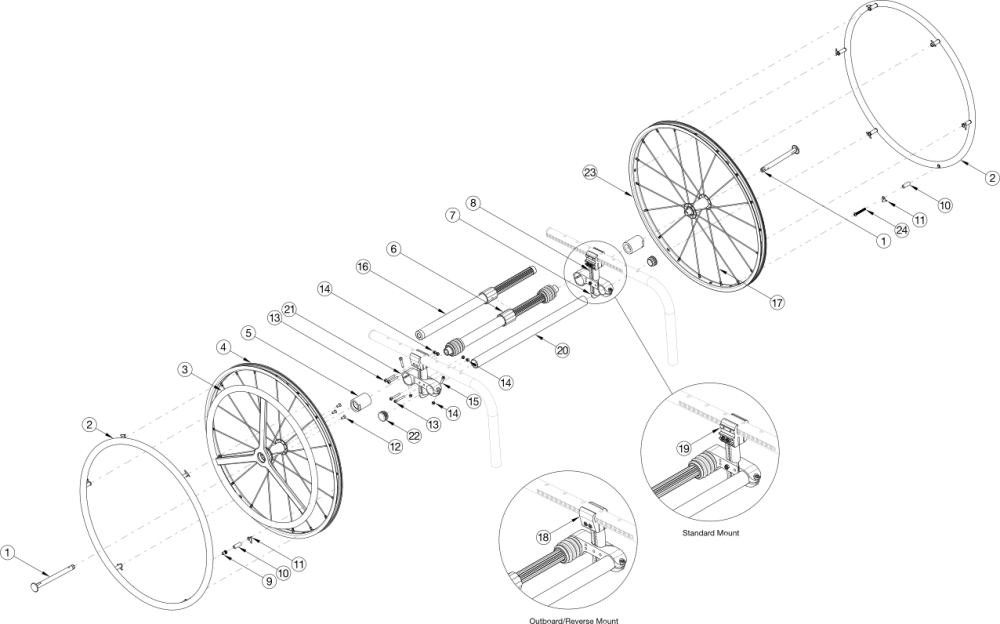

Part Picture
(Click on image to enlarge)
Clik One Arm Drive (Quick Release) Drive Shaft Guide | Color Anodizing ReferenceOne Arm Drive Kits do not include rear tires.
For a complete retrofit, select the desired retrofit kit in addition to the One Arm Drive Camber Tube Kit (based on seat width).
If retrofitting to add the One Arm Drive, new rear towers and tower clamps are required in addition to the complete One Arm Drive system. Check Drive Shaft Guide to determine if outboard or standard clamps are needed. Outboard clamps are included in retrofit kits. If standard clamps are required, please see camber mount towers page and add standard clamps. New rear towers will be needed with both outboard and standard clamps.
Effective 5/13/2022, all One Arm Drives will be shipped with a close mounted handrim on the non-drive wheel.
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1, 2a, 3, 4b, 5a, 9 - 15, 16a, 18, 21, 23 | 115204 | Clik Quick Release One Arm Drive Retrofit Kit, 0° Camber, 22" Spoke with Poly Coated Drive Handrim, Aluminum Non Drive Handrim, 177-255mm Drive Shaft |
$2,285.58
|
EA |
|
|
| 1, 2a, 3, 4b, 5a, 9 - 15, 16b, 18, 21, 23 | 115205 | Clik Quick Release One Arm Drive Retrofit Kit, 0° Camber, 22" Spoke with Poly Coated Drive Handrim, Aluminum Non Drive Handrim, 225-295mm Drive Shaft |
$2,285.58
|
EA |
|
|
| 1, 2a, 3, 4b, 5a, 9 - 15, 16c, 18, 21, 23 | 115206 | Clik Quick Release One Arm Drive Retrofit Kit, 0° Camber, 22" Spoke with Poly Coated Drive Handrim, Aluminum Non Drive Handrim, 260-370mm Drive Shaft |
$2,285.58
|
EA |
|
|
| 1, 2a, 3, 4b, 5a, 9 - 15, 16d, 18, 21, 23 | 115207 | Clik Quick Release One Arm Drive Retrofit Kit, 0° Camber, 22" Spoke with Poly Coated Drive Handrim, Aluminum Non Drive Handrim, 330-440mm Drive Shaft |
$2,285.58
|
EA |
|
|
| 1, 2a, 3, 4b, 5b, 6a, 9 - 15, 18, 21, 23 | 115208 | Clik Quick Release One Arm Drive Retrofit Kit, 2° Camber, 22" Spoke with Poly Coated Drive Handrim, Aluminum Non Drive Handrim, 170-195mm Drive Shaft |
$2,461.92
|
EA |
|
|
| 1, 2a, 3, 4b, 5b, 6b, 9 - 15, 18, 21, 23 | 115209 | Clik Quick Release One Arm Drive Retrofit Kit, 2° Camber, 22" Spoke with Poly Coated Drive Handrim, Aluminum Non Drive Handrim, 180-210mm Drive Shaft |
$2,461.92
|
EA |
|
|
| 1, 2a, 3, 4b, 5b, 6c, 9 - 15, 18, 21, 23 | 115210 | Clik Quick Release One Arm Drive Retrofit Kit, 2° Camber, 22" Spoke with Poly Coated Drive Handrim, Aluminum Non Drive Handrim, 195-235mm Drive Shaft |
$2,461.92
|
EA |
|
|
| 1, 2a, 3, 4b, 5b, 6d, 9 - 15, 18, 21, 23 | 115211 | Clik Quick Release One Arm Drive Retrofit Kit, 2° Camber, 22" Spoke with Poly Coated Drive Handrim, Aluminum Non Drive Handrim, 220-280mm Drive Shaft |
$2,404.84
|
EA |
|
|
| 1, 2a, 3, 4b, 5b, 6e, 9 - 15, 18, 21, 23 | 115212 | Clik Quick Release One Arm Drive Retrofit Kit, 2° Camber, 22" Spoke with Poly Coated Drive Handrim, Aluminum Non Drive Handrim, 270-330mm Drive Shaft |
$2,404.84
|
EA |
|
|
| 1, 2a, 3, 4b, 5b, 6f, 9 - 15, 18, 21, 23 | 115213 | Clik Quick Release One Arm Drive Retrofit Kit, 2° Camber, 22" Spoke with Poly Coated Drive Handrim, Aluminum Non Drive Handrim, 295-370mm Drive Shaft |
$2,404.84
|
EA |
|
|
| 1, 2a, 3, 4b, 5b, 6g, 9 - 15, 18, 21, 23 | 115214 | Clik Quick Release One Arm Drive Retrofit Kit, 2° Camber, 22" Spoke with Poly Coated Drive Handrim, Aluminum Non Drive Handrim, 350-460mm Drive Shaft |
$2,404.84
|
EA |
|
|
| 1, 2a, 3, 4b, 5c, 6c, 9 - 15, 18, 21, 23 | 115215 | Clik Quick Release One Arm Drive Retrofit Kit, 4° Camber, 22" Spoke with Poly Coated Drive Handrim, Aluminum Non Drive Handrim, 195-235mm Drive Shaft |
$2,461.92
|
EA |
|
|
| 1, 2a, 3, 4b, 5c, 6d, 9 - 15, 18, 21, 23 | 115216 | Clik Quick Release One Arm Drive Retrofit Kit, 4° Camber, 22" Spoke with Poly Coated Drive Handrim, Aluminum Non Drive Handrim, 220-280mm Drive Shaft |
$2,404.84
|
EA |
|
|
| 1, 2a, 3, 4b, 5c, 6e, 9 - 15, 18, 21, 23 | 115217 | Clik Quick Release One Arm Drive Retrofit Kit, 4° Camber, 22" Spoke with Poly Coated Drive Handrim, Aluminum Non Drive Handrim, 270-330mm Drive Shaft |
$2,404.84
|
EA |
|
|
| 1, 2a, 3, 4b, 5c, 6f, 9 - 15, 18, 21, 23 | 115218 | Clik Quick Release One Arm Drive Retrofit Kit, 4° Camber, 22" Spoke with Poly Coated Drive Handrim, Aluminum Non Drive Handrim, 295-370mm Drive Shaft |
$2,404.84
|
EA |
|
|
| 1, 2a, 3, 4b, 5c, 6g, 9 - 15, 18, 21, 23 | 115219 | Clik Quick Release One Arm Drive Retrofit Kit, 4° Camber, 22" Spoke with Poly Coated Drive Handrim, Aluminum Non Drive Handrim, 350-460mm Drive Shaft |
$2,404.84
|
EA |
|
|
| 1, 2b, 3, 4b, 5a, 9 - 15, 16a, 18, 21, 23 | 121637 | Clik Quick Release One Arm Drive Retrofit Kit, 0° Camber, 22" Spoke with Poly Coated Drive Handrim, Plastic Coated Non Drive Handrim, 177-255mm Drive Shaft |
$2,413.29
|
EA |
|
|
| 1, 2b, 3, 4b, 5a, 9 - 15, 16b, 18, 21, 23 | 121638 | Clik Quick Release One Arm Drive Retrofit Kit, 0° Camber, 22" Spoke with Poly Coated Drive Handrim, Plastic Coated Non Drive Handrim, 225-295mm Drive Shaft |
$2,413.29
|
EA |
|
|
| 1, 2b, 3, 4b, 5a, 9 - 15, 16c, 18, 21, 23 | 121639 | Clik Quick Release One Arm Drive Retrofit Kit, 0° Camber, 22" Spoke with Poly Coated Drive Handrim, Plastic Coated Non Drive Handrim, 260-370mm Drive Shaft |
$2,413.29
|
EA |
|
|
| 1, 2b, 3, 4b, 5a, 9 - 15, 16d, 18, 21, 23 | 121640 | Clik Quick Release One Arm Drive Retrofit Kit, 0° Camber, 22" Spoke with Poly Coated Drive Handrim, Plastic Coated Non Drive Handrim, 330-440mm Drive Shaft |
$2,413.29
|
EA |
|
|
| 1, 2b, 3, 4b, 5b, 6a, 9 - 15, 18, 21, 23 | 121641 | Clik Quick Release One Arm Drive Retrofit Kit, 2° Camber, 22" Spoke with Poly Coated Drive Handrim, Plastic Coated Non Drive Handrim, 170-195mm Drive Shaft |
$2,583.67
|
EA |
|
|
| 1, 2b, 3, 4b, 5b, 6b, 9 - 15, 18, 21, 23 | 121642 | Clik Quick Release One Arm Drive Retrofit Kit, 2° Camber, 22" Spoke with Poly Coated Drive Handrim, Plastic Coated Non Drive Handrim, 180-210mm Drive Shaft |
$2,583.67
|
EA |
|
|
| 1, 2b, 3, 4b, 5b, 6c, 9 - 15, 18, 21, 23 | 121643 | Clik Quick Release One Arm Drive Retrofit Kit, 2° Camber, 22" Spoke with Poly Coated Drive Handrim, Plastic Coated Non Drive Handrim, 195-235mm Drive Shaft |
$2,583.67
|
EA |
|
|
| 1, 2b, 3, 4b, 5b, 6d, 9 - 15, 18, 21, 23 | 121644 | Clik Quick Release One Arm Drive Retrofit Kit, 2° Camber, 22" Spoke with Poly Coated Drive Handrim, Plastic Coated Non Drive Handrim, 220-280mm Drive Shaft |
$2,528.52
|
EA |
|
|
| 1, 2b, 3, 4b, 5b, 6e, 9 - 15, 18, 21, 23 | 121645 | Clik Quick Release One Arm Drive Retrofit Kit, 2° Camber, 22" Spoke with Poly Coated Drive Handrim, Plastic Coated Non Drive Handrim, 270-330mm Drive Shaft |
$2,528.52
|
EA |
|
|
| 1, 2b, 3, 4b, 5b, 6f, 9 - 15, 18, 21, 23 | 121646 | Clik Quick Release One Arm Drive Retrofit Kit, 2° Camber, 22" Spoke with Poly Coated Drive Handrim, Plastic Coated Non Drive Handrim, 295-370mm Drive Shaft |
$2,528.52
|
EA |
|
|
| 1, 2b, 3, 4b, 5b, 6g, 9 - 15, 18, 21, 23 | 121647 | Clik Quick Release One Arm Drive Retrofit Kit, 2° Camber, 22" Spoke with Poly Coated Drive Handrim, Plastic Coated Non Drive Handrim, 350-460mm Drive Shaft |
$2,528.52
|
EA |
|
|
| 1, 2b, 3, 4b, 5c, 6c, 9 - 15, 18, 21, 23 | 121648 | Clik Quick Release One Arm Drive Retrofit Kit, 4° Camber, 22" Spoke with Poly Coated Drive Handrim, Plastic Coated Non Drive Handrim, 195-235mm Drive Shaft |
$2,583.67
|
EA |
|
|
| 1, 2b, 3, 4b, 5c, 6d, 9 - 15, 18, 21, 23 | 121649 | Clik Quick Release One Arm Drive Retrofit Kit, 4° Camber, 22" Spoke with Poly Coated Drive Handrim, Plastic Coated Non Drive Handrim, 220-280mm Drive Shaft |
$2,528.52
|
EA |
|
|
| 1, 2b, 3, 4b, 5c, 6e, 9 - 15, 18, 21, 23 | 121650 | Clik Quick Release One Arm Drive Retrofit Kit, 4° Camber, 22" Spoke with Poly Coated Drive Handrim, Plastic Coated Non Drive Handrim, 270-330mm Drive Shaft |
$2,528.52
|
EA |
|
|
| 1, 2b, 3, 4b, 5c, 6f, 9 - 15, 18, 21, 23 | 121651 | Clik Quick Release One Arm Drive Retrofit Kit, 4° Camber, 22" Spoke with Poly Coated Drive Handrim, Plastic Coated Non Drive Handrim, 295-370mm Drive Shaft |
$2,528.52
|
EA |
|
|
| 1, 2b, 3, 4b, 5c, 6g, 9 - 15, 18, 21, 23 | 121652 | Clik Quick Release One Arm Drive Retrofit Kit, 4° Camber, 22" Spoke with Poly Coated Drive Handrim, Plastic Coated Non Drive Handrim, 350-460mm Drive Shaft |
$2,528.52
|
EA |
|
|
| 1, 2a, 10b, 11, 23, 24 | 119588 | Quick Release One Arm Drive, 22" Spoke Wheel with Axle (Driven Side) and Close Mounted Handrim |
$560.44
|
EA |
|
|
| 1, 2b, 10b, 11, 23, 24 | 121854 | Quick Release One Arm Drive, 22" Spoke Wheel with Axle (Driven Side) and Close Mounted Plastic Coated Handrim |
$602.63
|
EA |
|
|
| 1, 3b, 4b, 13 | 115287 | Quick Release One Arm Drive, 22" Spoke Wheel with Axle and Poly Coated Drive Handrim- If replacing wheels and tires but NOT handrims. Add handrim hardware for pre-existing handrims. | If replacing wheels and tires but NOT handrims. Add handrim hardware for pre-existing handrims. |
$576.46
|
EA |
|
| 2a | 100560 | Handrim Aluminum Anodized 6 Rivet Nut 22"- Does not include mounting hardware | Does not include mounting hardware |
$82.32
|
EA |
|
| 2b | 112820 | Handrim Plastic Coated 6 Rivet Nut 22"- Does not include mounting hardware | Does not include mounting hardware |
$145.60
|
EA |
|
| 2a, 10b, 11, 24 | 116448 | Alumnium Anodized Handrim 6 Rivet Nut 22" with Close Mount Hardware, Non-Drive Side |
$113.34
|
EA |
|
|
| 2b, 10b, 11, 24 | 121851 | Plastic Coated Handrim 6 Rivet Nut 22" with Close Mount Hardware, Non-Drive Side |
$161.38
|
EA |
|
|
| 3 | 112434 | Quick Release One Arm Drive, Poly Coated Drive Side Handrim for 22" Wheel- Does not include mounting hardware | Does not include mounting hardware |
$408.57
|
EA |
|
| 5a | 107031 | One Arm Drive Blade/Quick Release Camber Plug w/Bearings - 0° Camber |
$86.91
|
EA |
|
|
| 5b | 003170 | One Arm Drive Quick Release Camber Plug w/Bearings - 2° Camber | N/A | EA | Please Call | |
| 5c | 003171 | One Arm Drive Quick Release Camber Plug w/Bearings - 4° Camber | N/A | EA | Please Call | |
| 5a, 21 | 108074 | One Arm Drive Rogue/Clik Axle Mount 0 Degree Camber PAIR |
$533.24
|
EA |
|
|
| 5b, 21 | 003209 | One Arm Drive Rogue/Clik Axle Mount 2 Degree Camber, PAIR |
$652.50
|
EA |
|
|
| 5c, 21 | 003210 | One Arm Drive Rogue/Clik Axle Mount 4 Degree Camber Each |
$326.25
|
EA |
|
|
| 6a | 111858 | One Arm Drive - Quick Release Camber Drive Shaft 170-195mm |
$456.69
|
EA |
|
|
| 6b | 111627 | One Arm Drive - Quick Release Camber Drive Shaft 180-210mm |
$456.69
|
EA |
|
|
| 6c | 111628 | One Arm Drive - Quick Release Camber Drive Shaft 195-235mm |
$456.69
|
EA |
|
|
| 6d | 111498 | One Arm Drive - Quick Release Camber Drive Shaft 220-280mm |
$399.61
|
EA |
|
|
| 6e | 111499 | One Arm Drive - Quick Release Camber Drive Shaft 270-330mm |
$399.61
|
EA |
|
|
| 6f | 111500 | One Arm Drive - Quick Release Camber Drive Shaft 295-370mm |
$399.61
|
EA |
|
|
| 6g | 111501 | One Arm Drive - Quick Release Camber Drive Shaft 350-460mm |
$399.61
|
EA |
|
|
| 7 | 000920 | Camber Mount Cap Rigid |
$2.80
|
EA |
|
|
| 8a | 000925 | Camber Mount Tower Long Black Anodized Rigid |
$31.84
|
EA |
|
|
| 8b | 000925_ _ _ | Color Anodized/Color Accent Camber Mount Tower Long Rigid | N/A | EA | Please Call | |
| 8c | 000926 | Camber Mount Tower Extra Long Black Anodized Rigid |
$32.47
|
EA |
|
|
| 8d | 000926_ _ _ | Color Anodized/Color Accent Camber Mount Tower Extra Long Rigid | N/A | EA | Please Call | |
| 9 | 122063 | PHMS, M5x0.8x40, CLS4.8, PHL, BLZ, NYL, DIN7985, Custom |
$1.77
|
|
||
| 10a | 100653 | Handrim Spacer Spoke |
$1.17
|
|
||
| 11 | 100698 | Handrim Tab |
$4.45
|
|
||
| 9, 10a, 11 | 502168 | Handrim Hardware Kit, 6 Rivet Nut, EACH |
$41.16
|
EA |
|
|
| 12 | 103522 | M5 x 0.8 x 12 FHCS CLS 10.9 Nyl Blk Zn DIN7991 |
$1.17
|
EA |
|
|
| 13 | 101734 | M5 x 35 SHCS BLK ZC |
$1.17
|
EA |
|
|
| 14 | 100657 | M5 Nylock Nut Blk Zn |
$0.60
|
EA |
|
|
| 15 | 101717 | M5 x 25 SHCS BLK ZC |
$0.60
|
|
||
| 16a | 111503 | One Arm Drive - Quick Release Zero Camber Drive Shaft 177-255mm |
$399.61
|
EA |
|
|
| 16b | 111504 | One Arm Drive - Quick Release Zero Camber Drive Shaft 225-295mm |
$399.61
|
EA |
|
|
| 16c | 111505 | One Arm Drive - Quick Release Zero Camber Drive Shaft 260-370mm |
$399.61
|
EA |
|
|
| 16d | 111506 | One Arm Drive - Quick Release Zero Camber Drive Shaft 330-440mm |
$399.61
|
EA |
|
|
| 17b | 111514 | Replacement Spoke, Quick Release One Arm Drive, 22" |
$5.00
|
EA |
|
|
| 18 | 003366 | One Arm Drive Tower Clamp, Outboard Mount, Clik- Reference Clik One Arm Drive (Quick Release) - Drive Shaft Chart for configurations where used | Reference Clik One Arm Drive (Quick Release) - Drive Shaft Chart for configurations where used |
$42.72
|
EA |
|
| 19 | 111822 | Tower Clamp Mount, Clik- Reference Clik One Arm Drive (Quick Release) - Drive Shaft Chart for configurations where used | Reference Clik One Arm Drive (Quick Release) - Drive Shaft Chart for configurations where used |
$19.21
|
EA |
|
| 20a | 003369 | One Arm Drive Camber Tube 11" Kit, Clik / Rogue XP- Does not include tube end plugs | Does not include tube end plugs |
$197.53
|
EA |
|
| 20b | 003370 | One Arm Drive Camber Tube 12" Kit, Clik / Rogue / Rogue XP- Does not include tube end plugs | Does not include tube end plugs |
$197.53
|
EA |
|
| 20c | 003371 | One Arm Drive Camber Tube 13" Kit, Clik / Rogue / Rogue XP- Does not include tube end plugs | Does not include tube end plugs |
$197.53
|
EA |
|
| 20d | 003372 | One Arm Drive Camber Tube 14" Kit, Clik / Rogue / Rogue XP- Does not include tube end plugs | Does not include tube end plugs |
$197.53
|
EA |
|
| 20e | 003373 | One Arm Drive Camber Tube 15" Kit, Clik / Rogue / Rogue XP- Does not include tube end plugs | Does not include tube end plugs |
$197.53
|
EA |
|
| 20f | 003374 | One Arm Drive Camber Tube 16" Kit, Clik / Rogue / Rogue XP- Does not include tube end plugs | Does not include tube end plugs |
$197.53
|
EA |
|
| 20g | 003708 | One Arm Drive Camber Tube 17" Kit, Clik / Rogue / Rogue XP- Does not include tube end plugs | Does not include tube end plugs |
$197.53
|
EA |
|
| 20h | 003709 | One Arm Drive Camber Tube 18" Kit, Clik / Rogue / Rogue XP- Does not include tube end plugs | Does not include tube end plugs |
$197.53
|
EA |
|
| 22 | 100532 | Tube End Plug 1 1/8" |
$2.94
|
EA |
|
|
| 24 | 122065 | BHCS, M5x0.8x25, CLS12.9, BLZ, NYL, ISO7380, Custom |
$1.17
|
EA |
|
