Little Wave Flip

Name: Little Wave Flip: Flip Transit
Manufacturer: Ki Mobility

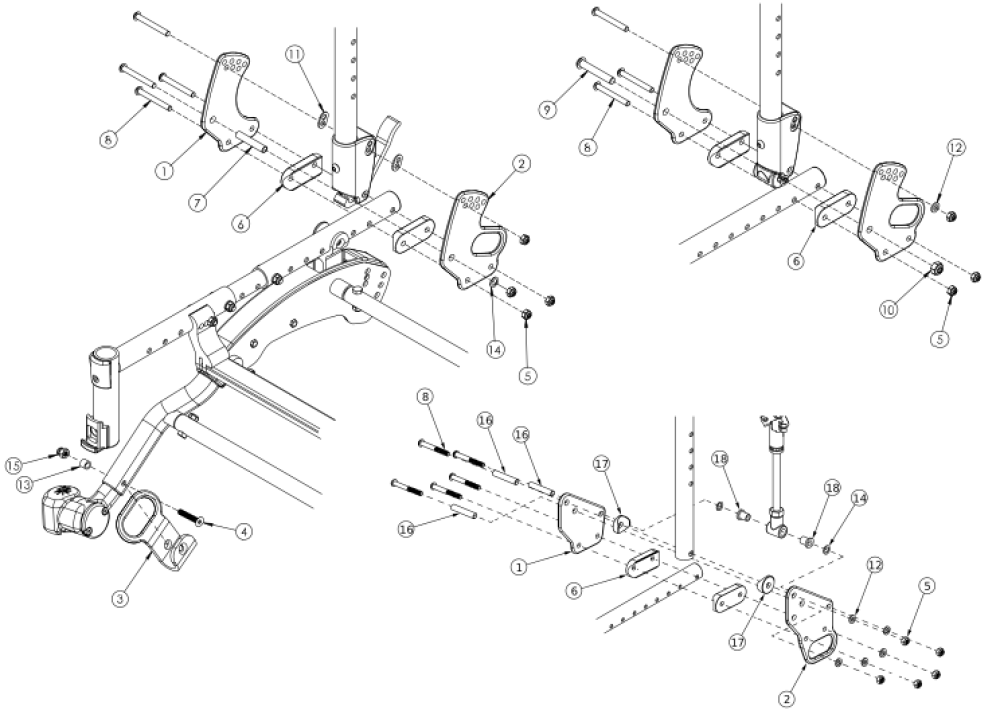

Flip Transit parts diagram
(Click on image to enlarge)

Notice: Chair configuration review required prior to parts being quoted or ordered. See Flip for Leckey Transit page if replacing parts for this model
Attachments:
Pos. Part # Description Price UOM Buy
1a, 2a, 5 - 8, 11, 14 502820 Backrest Hardware Kit Std Transit (one side), FLIP
$194.59
EA
1b, 2b, 5, 6, 8, 12, 14, 16 - 18 107698 Reclining Backrest Hardware Kit (one side), Transit, Flip
$222.44
EA
1a, 2a, 5, 6, 8 - 10, 12 503163 Backrest Hardware Kit Non-Folding (one side), Transit, Flip
$189.82
EA
1a, 2a, 3, 4, 13, 15 502407 Transit Retrofit Kit FLIP- This kit is a complete retrofit, containing a pair of front transit brackets with attaching hardware and transit backplates.
$393.96
EA
1b, 2b, 3, 4, 13, 15 111163 Transit Retrofit Kit, Reclining, FLIP- This kit is a complete retrofit, containing a pair of front transit brackets with attaching hardware and transit backplates.
$393.96
EA
1a 001890 Back Plate, Std
$39.28
EA
1b 003836 Back Plate, Recline, Ped- Used on Reclining Backrests.
$38.13
EA
2a 001891 Back Plate, Transit
$129.13
EA
2b 003837 Back Plate, Recline, Ped, Transit- Used on Reclining Backrests.
$124.45
EA
4 101733 M6 x 35 CLS10.9 DIN7991 FSHCS BLKZC
$2.36
EA
5 100658 M6 Nylock Nut Blk Zn
$1.17
EA
6 002595 Saddle, Dual, 1" OD X 1.5 SP
$3.79
EA
7 002738 Spacer .313 OD x .243 ID x 1.68 long
$4.39
EA
8 101781 M6 x 50mm Partial Thread BHCS Blk ZC
$1.77
EA
9 101815 M8 x 50 BHCS Blk Zn
$4.12
EA
10 100659 M8 Nylock Nut Blk Zn
$1.17
EA
11 001897 Washer, Dual, PSA
$2.34
EA
12 100746 M6 Flat Washer Blk Zn
$1.77
EA
13 002086 Spacer, .38ODx.24IDx.31LG
$2.71
EA
14 101861 Nylon Washer 5/16 x 1/2 x .03
$0.60
EA
15 100558 M6 NYL INS Domed Cap L/N ZC
$1.17
EA
16 001075 Stop Pin Backrest Tilt
$7.55
EA
17 001271 1" Saddle, .323 Hole
$1.81
EA
18 102081 Bushing Flange .319 IDx.394 OD
$0.63
