3. Elevating Legrests

Name: 3. Elevating Legrests: Style #12 Elrs W/residual Limb Supports, Clover Leaf Seat
Manufacturer: Pride Mobility

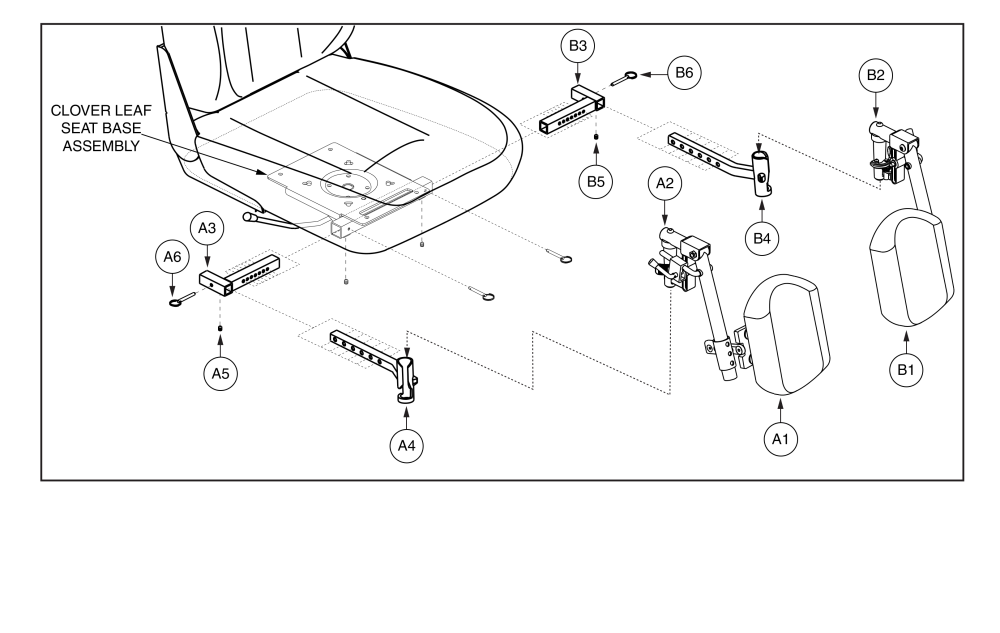

Style #12 Elrs W/residual Limb Supports, Clover Leaf Seat parts diagram
(Click on image to enlarge)

Pos. Part # Description Price UOM Buy
A1 - A7 KITASMB1592 KIT, ASSY, RESIDUAL LIMB SUPPORT, RIGHT, ELR FOR CLOVER LEAF SEAT FRAMES, ELR STYLE #12, UNIVERSAL HANGERS
$398.70
EA
A1 FRMASMB5300 RESIDUAL LIMB SUPPORT, ASSY, W/CALF PAD, RIGHT, D-1000-240
$448.40
EA
A2 FRMASMB3815 ELR #12 UPPER, RIGHT
$155.60
EA
A3 DWG1107C120 LEGREST HANGER RECEIVER, 7 POSITION WIDTH ADJ, RIGHT, C-1107-012
$38.30
EA
A4 DWR1000E141 LEGREST HANGER WELDMENT, TAPER PIN, UNIVERSAL SEAT FRAME, OFFSET, RIGHT, E-1000-141
$38.30
EA
A5 SCRSETS1056 SCREW, SET, CUP POINT, M8X1.25 X 10, ISO 4029, STL, BZ
$3.20
EA
A6 PINCOTD1000 PIN, COTTERLESS DETENT W/ RING, .25 DIA X 1.5 GRIP LG (DWG B1005-168)
$6.20
EA
A7
$123.00
EA
B1 - B7 KITASMB1593 KIT, ASSY, RESIDUAL LIMB SUPPORT, LEFT, ELR FOR CLOVER LEAF SEAT FRAMES, ELR STYLE #12, UNIVERSAL HANGERS
$398.70
EA
B1 FRMASMB5301 RESIDUAL LIMB SUPPORT, ASSY, W/CALF PAD, LEFT, D-1000-241
$448.40
EA
B2 FRMASMB3814 ELR #12 UPPER, LEFT
$155.60
EA
B3 DWG1107C130 LEGREST HANGER RECEIVER, 7 POSITION WIDTH ADJ, LEFT, C-1107-013
$38.30
EA
B4 DWR1000E140 LEGREST HANGER WELDMENT, TAPER PIN, UNIVERSAL SEAT FRAME, OFFSET, LEFT, E-1000-140
$38.30
EA
B5 SCRSETS1056 SCREW, SET, CUP POINT, M8X1.25 X 10, ISO 4029, STL, BZ
$3.20
EA
B6 PINCOTD1000 PIN, COTTERLESS DETENT W/ RING, .25 DIA X 1.5 GRIP LG (DWG B1005-168)
$6.20
EA
B7
$123.00
EA
