9. Sof Captains Seat
Name: 9. SOF Captains Seat: Angle Adjustable Seat Towers, Captain's Seating W/ Lift, Tb3 Reac
Manufacturer: Pride Mobility
(Click on image to enlarge)
Manufacturer: Pride Mobility

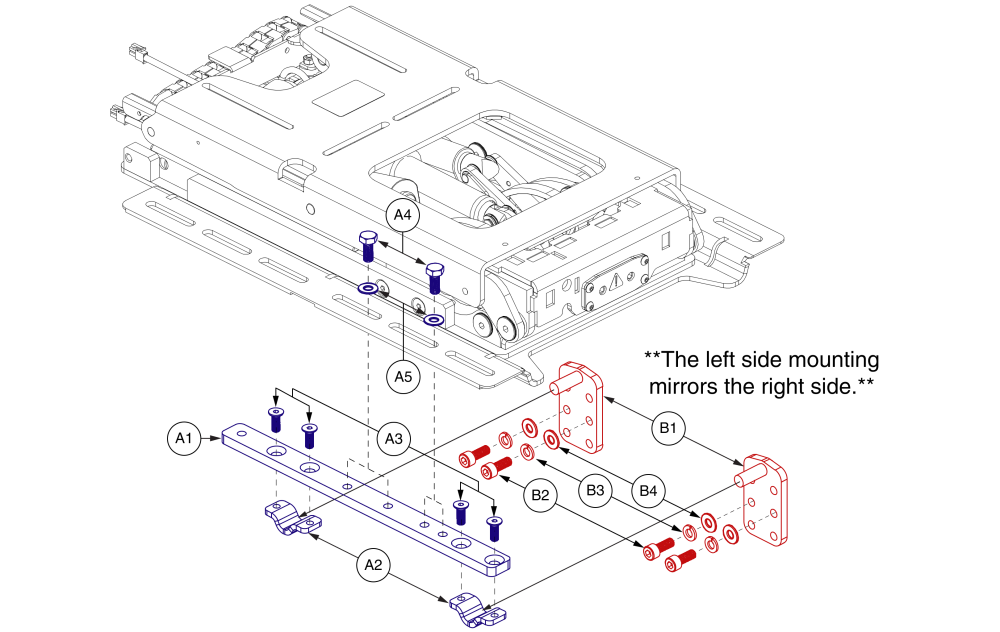

Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| A1 - A5 | HDW1801739 | HARDWARE, ASSY, ANGLE ADJUSTABLE, ILEVEL CAPTAINS SEAT |
$56.40
|
EA |
|
|
| A1 | MEC145322 | INTERFACE SLIP PLATE, ISO |
$22.90
|
EA |
|
|
| A2 | MEC131180 | SEATING INTERFACE CLAMP, TRU-BALANCE 3 |
$3.90
|
EA |
|
|
| A3 | SCRSHFH1203 | SCREW, FLAT HEAD, M8X1.25 X 20, ISO 10642, CL 10.9, BZ, PVTP |
$3.20
|
EA |
|
|
| A4 | HDW120048 | SCREW, HEX HEAD, M10X1.5 X 20, ISO 4017, CL 10.9, BLK, PVTP |
$3.20
|
EA |
|
|
| A5 | WASMETR1031 | WASHER, FLAT, 10.5 ID X 20 OD X 2 THK, ISO 7089-10-200HV, BZ |
$3.20
|
EA |
|
|
| B1 - B4 | MEC133591 | SEAT MOUNT CONNECTOR, ASSY, TB3 TILT, METRIC |
$42.50
|
EA |
|
|
| B1 | MEC131182 | MOUNTING BRACKET, SEAT INTERFACE, TRU-BALANCE 3 |
$26.00
|
EA |
|
|
| B2 | SCR8110003 | SCREW, SOCKET HEAD, M10X1.5 X 25, ISO 4762, CL 12.9, BZ, PVTP |
$3.20
|
EA |
|
|
| B3 | WASLOCK1094 | WASHER, LOCK, 10.7 ID X 18.1 OD X 2.0 THK, DIN 127B, BZ |
$3.20
|
EA |
|
|
| B4 | WASMETR1031 | WASHER, FLAT, 10.5 ID X 20 OD X 2 THK, ISO 7089-10-200HV, BZ |
$3.20
|
EA |
|
