J4 / J4 Hd - Jf2, Jf5

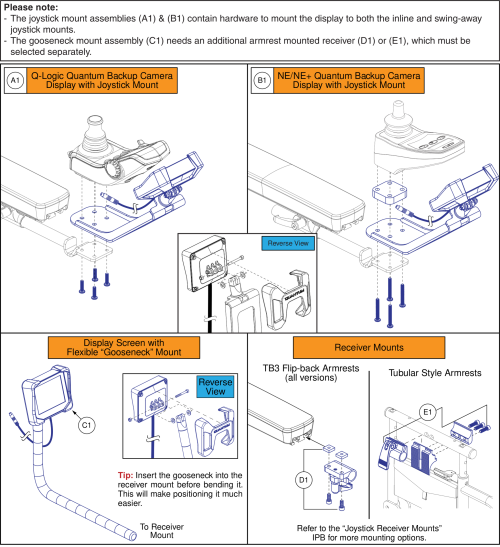

Name: J4 / J4 HD - JF2, JF5: Quantum Backup Camera Display Mounts
Manufacturer: Pride Mobility
(Click on image to enlarge)
Manufacturer: Pride Mobility
Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| A1 | MEC2106123 | QUANTUM BACKUP CAMERA, DISPLAY MOUNT, ASSEMBLY, Q-LOGIC 3 |
$255.50
|
EA |
|
|
| B1 | MEC2106132 | QUANTUM BACKUP CAMERA, DISPLAY MOUNT, ASSEMBLY, NE/NE+ |
$110.20
|
EA |
|
|
| C1 | MEC1906270 | QBC, SCREEN HINGE ASSEMBLY, W/GOOSENECK |
$231.60
|
EA |
|
|
| D1 | MEC1907331 | JOYSTICK RECEIVER MOUNT, ASSY, W/MOUNTING HARDWARE, QBC GOOSENECK CLAMP |
$20.70
|
EA |
|
|
| E1 | FRMASMB16062 | JOYSTICK RECEIVER MOUNT, ASSY, UNIVERSAL, ADJUSTABLE BLOCK, D-1000-313 |
$146.40
|
EA |
|
