Jazzy 610 - J74
- 1. Main Frame Assy's
- 2. Drive Motor Assy
- 3. Active Trac Motor Mount, Freewheel Lever, & Caster Arm Assy's
- 4. Articulating Beam Assy
- 5. Charger Assy's
- 6. Joystick Assy's
-
7. Electronics Assy's
- 7.1. VSI Electronics Assy's
- 7.2. Remote Plus Electronics Assy's
- 7.3. Dynamic Flight Electronics Assy's
- 8. Foot Platforms & Battery Access Brackets
- 9. Drive Wheel Assy's
- 10. Shroud Assy's
- 11. Power Seat Actuator Assy
- 12. Seat Towers & Trapeze Bars
- 13. Owner's Package
- 14. Decal Packages
- 15. Batteries
Jazzy 610 - J74
Name: Jazzy 610 - J74: Flight, Onboard Charger, Electrical Assembly, Jazzy 610
Manufacturer: Pride Mobility
(Click on image to enlarge)
Manufacturer: Pride Mobility

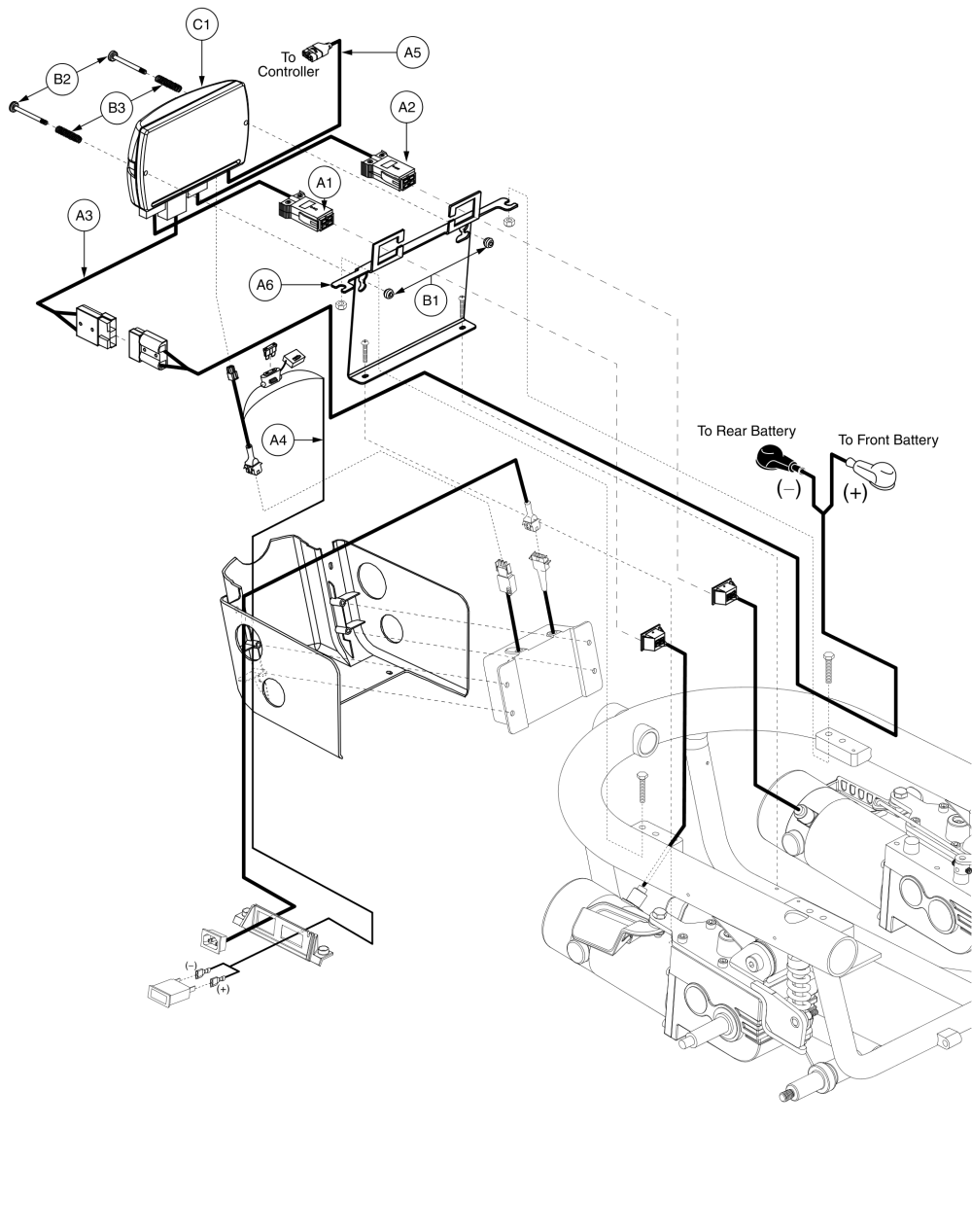

Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| A1 - C1 |
$308.00
|
EA |
|
|||
| A1 | DWR1056H004 | ELECTRONIC, HARNESS, MOTOR, M2, DYNAMIC, H-1056-004 |
$108.60
|
EA |
|
|
| A2 | DWR1056H005 | ELECTRONIC, HARNESS, MOTOR, M1, DYNAMIC, H-1056-005 |
$108.60
|
EA |
|
|
| A3 |
$308.00
|
EA |
|
|||
| A4 |
$308.00
|
EA |
|
|||
| A5 |
$308.00
|
EA |
|
|||
| A6 | DWR1054D054 | POWER MODULE MOUNTING BRACKET, D-1054-054 |
$25.30
|
EA |
|
|
| B1 - B3 | HDWASMB1059 | QUICK RELEASE BUTTON, ASSY, FLIGHT POWER MODULE, B-1116-054 |
$19.80
|
EA |
|
|
| B1 |
$308.00
|
EA |
|
|||
| B2 |
$308.00
|
EA |
|
|||
| B3 |
$308.00
|
EA |
|
|||
| C1 |
$308.00
|
EA |
|
