Jazzy Select 6 2.0 - JE9
- 4. Caster Arms W/ Motors
- 5. Decal / Owner's Package
- 6. Drive Wheel Assy
- 3. Off-board Charger Assy
- 8. Foot Platform & Seat Interface Assy's
- 10. Main Frame Assy's
- 2. Batteries
- 14. Electrical System Diagram
- 13. Seats
- 11. Comfort Seat Assy's
- 7. Electronics / Modules Assy
- 12. Shroud Assy's
- 9. Joysticks / Master Controls
- 1. Articulating Beam / Wheels
Jazzy Select 6 2.0 - Je9

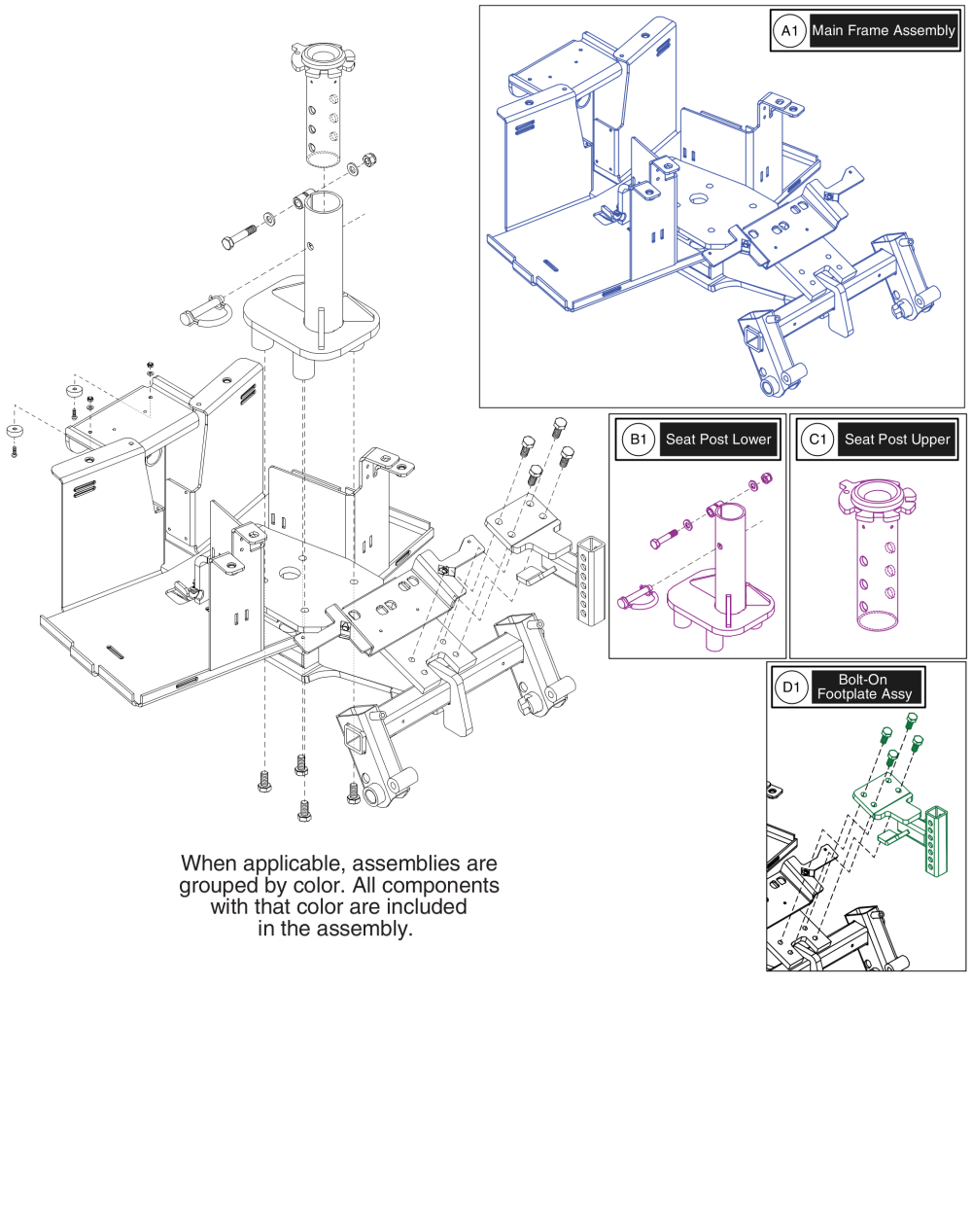

Name: Jazzy Select 6 2.0 - JE9: Main Frame W/ Standard Seat Post, Jazzy Select 6 2.0
Manufacturer: Pride Mobility
(Click on image to enlarge)
Manufacturer: Pride Mobility
Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| A1 |
$123.00
|
EA |
|
|||
| B1 | MEC169718 | FIXED SEATPOST WELDMENT |
$95.60
|
EA |
|
|
| C1 | DWR1060C099 | SEAT POST WELDMENT, UPPER W/BUSHING, 3 HOLE, ADJUSTABLE, C-1060-099 |
$40.80
|
EA |
|
|
| D1 | MEC169766 | BOLT-ON FOOTPLATE WELDMENT |
$25.40
|
EA |
|
|
| *E1 | MEC154624 | BATTERY STRAP |
$19.40
|
EA |
|
|
| *F1 | MEC154626 | BACK STRAP, SMALL BATTERY |
$12.90
|
EA |
|
