Q1450 - Jc4

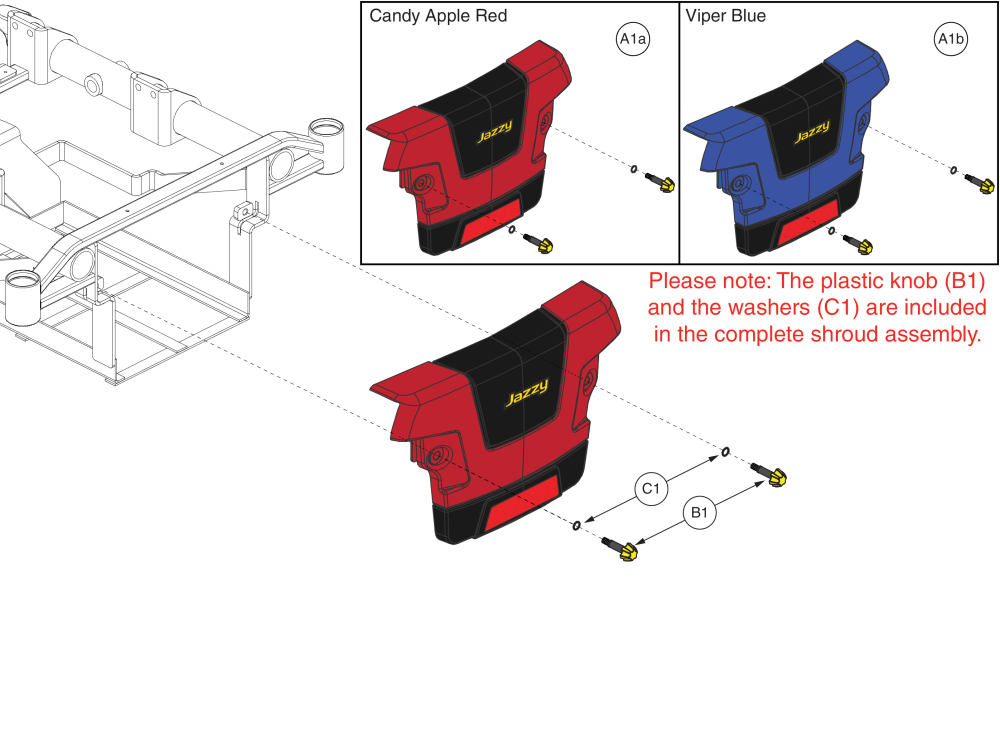

Name: Q1450 - JC4: Rear Door Shroud Assy, J1450
Manufacturer: Pride Mobility
(Click on image to enlarge)
Manufacturer: Pride Mobility
Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| A1a | SHDASMB7110013 | SHROUD, ASSY, REAR DOOR, CANDY APPLE RED, JAZZY1450, D-1660-035 |
$183.10
|
EA |
|
|
| A1b | SHDASMB7110014 | SHROUD, ASSY, REAR DOOR, VIPER BLUE, JAZZY1450, D-1660-035 |
$176.70
|
EA |
|
|
| B1 | PLSKNCP1071 | KNOB, YELLOW, PLASTIC, 10MM X 25MM, CUSTOM, C-1660-046 |
$3.20
|
EA |
|
|
| C1 | WASNEOP1006 | WASHER, NEOPRENE, O-RING, 9.8 ID X 13.6 OD X 1.9 THK | N/A | EA | Please Call |
