Q4 Seat
Name: Q4 Seat: Wc19 Transit Seat Base, V2(tb3.5)tilt - 16-20w X 16-20d, Tb3
Manufacturer: Pride Mobility
(Click on image to enlarge)
Manufacturer: Pride Mobility

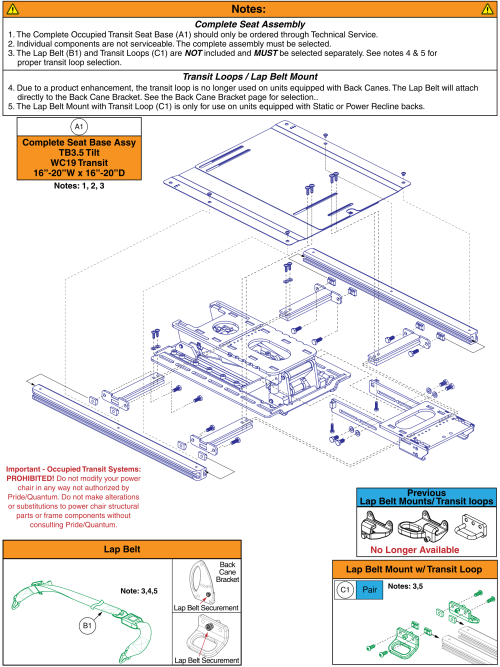

Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| A1 | SET160461 | SEAT BASE, ASSY, 16"W-20"W, 16"D-20"D, TILT ONLY, OCCUPIED TRANSIT, TB3.5, WC19 |
$3,432.50
|
EA |
|
|
| B1 | ACCBELT1016 | LAP BELT, 60", NON-RETRACTABLE, (SURE-LOK: FE201070) |
$126.00
|
EA |
|
|
| C1 | MEC1909905 | LAP BELT MOUNT, ASSY, OCCUPIED TRANSIT SECUREMENT LOOP W/DECALS |
$103.50
|
EA |
|
