Q6 Edge Tb3 Lift, Captains Seat
Name: Q6 Edge TB3 Lift, Captains Seat: Tb3 Lift Only Seat Interface
Manufacturer: Pride Mobility
(Click on image to enlarge)
Manufacturer: Pride Mobility

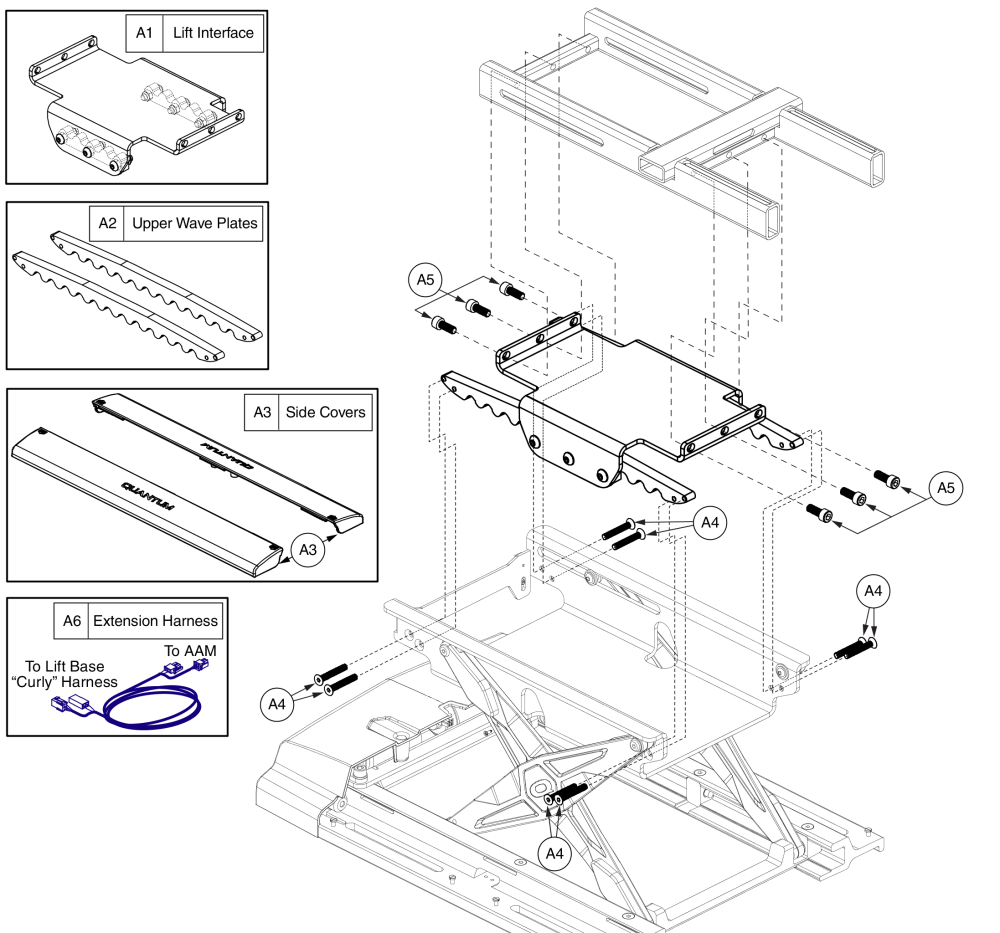

Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| A1 - A6 | SET130988 | SEAT PLATE, ASSY, LIFT ONLY, TRU-BALANCE 3 |
$365.60
|
EA |
|
|
| A1 | MEC151584 | LIFT ONLY INTERFACE ASSY, TRU BALANCE 3 |
$192.00
|
EA |
|
|
| A2 | MEC151579 | LIFT TO TILT INTERFACE WAVE PLATE UPPER |
$70.00
|
EA |
|
|
| A3 | DGN121687 | COVER, SIDE RAIL, PLASTIC, TRU-BALANCE 3 LIFT |
$10.90
|
EA |
|
|
| A4 | SCRSHFH1023 | SCREW, SHFH, M6-1.0 X 30MM |
$3.20
|
EA |
|
|
| A5 | HDW125250 | SCREW, SOCKET HEAD, M8X1.25 X 20, ISO 4762, CL 12.9, BZ, PVTP |
$3.20
|
EA |
|
|
| A6 | ELE133304 | ELECTRONIC, HARNESS, CURLY CABLE EXTENSION CABLE, FRONT MOUNTED, TRU-BALANCE 3 LIFT |
$25.60
|
EA |
|
