Q6000z Series - J96, Ja6, Ja9

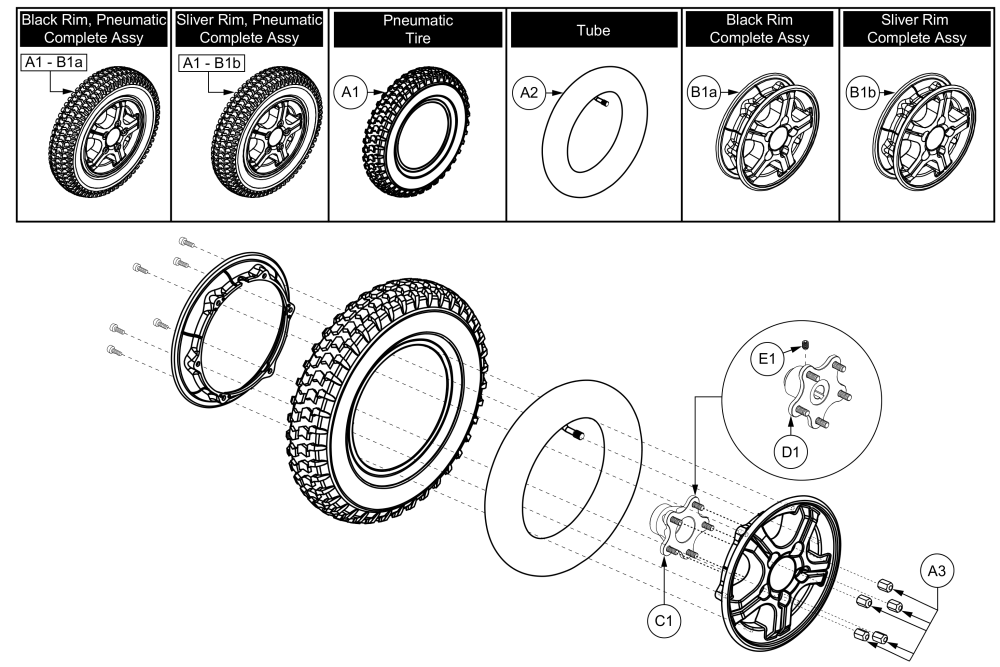

Name: Q6000Z Series - J96, JA6, JA9: Pneumatic Wheel Assy's - 5 Spoke Hub, Q6000z
Manufacturer: Pride Mobility
(Click on image to enlarge)
Manufacturer: Pride Mobility
Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| A1 - B1a | WHLASMB1770 | WHEEL, ASSY, PNEUMATIC, BLACK RIM/GRAY TIRE, 14" X 3", 5 SPOKE, C-248-5, W/LUGNUTS, E-1203-009 |
$200.00
|
EA |
|
|
| A1 - B1b | WHLASMB1814 | WHEEL, ASSY, PNEUMATIC, SILVER RIM/GRAY TIRE, 14" X 3", 5 SPOKE, C-248-5, W/LUGNUTS, E-1203-009 |
$254.70
|
EA |
|
|
| A1 | TIRPNEU1004 | TIRE, PNEUMATIC, 300-8 X 14", C-248-5 |
$65.30
|
EA |
|
|
| A2 | TUBSTND1002 | TUBE, 300-8, ANGLED VALVE W/CAP |
$34.60
|
EA |
|
|
| A3 | DWR1005B049 | NUT, LUG, 5/16-24, ZINC |
$10.50
|
EA |
|
|
| B1a | WHLASMB1768 | WHEEL, ASSY, RIM, BLACK, 8" ALUMINUM, 5 SPOKE, MACHINED FACE, D-1203-014 |
$122.10
|
EA |
|
|
| B1b | WHLASMB1812 | WHEEL, ASSY, RIM, SILVER, 8" ALUMINUM, 5 SPOKE, MACHINED FACE, D-1203-014 |
$88.90
|
EA |
|
|
| C1 | WHLASMB1644 | WHEEL, ASSY, HUB, 5 SPOKE, W/STUDS, HAMMER MOTORS, B-1059-025 |
$53.70
|
EA |
|
|
| D1 | WHLASMB1747 | WHEEL, ASSY, HUB, 5 SPOKE, W/STUDS, GLIDE/H2 MOTORS, B-1203-001 |
$57.60
|
EA |
|
|
| E1 | SCRSETS1105 | SCREW, SET, CUP POINT, M6X1.0 X 8, ISO 4029, 45H, BZ, PVTP |
$3.20
|
EA |
|
