loadingLoading... ZT10 - S710ZT - SK3

Zt10 - S710zt - Sk3

Name: ZT10 - S710ZT - SK3: Black Vinyl Molded, Deluxe Stadium, (shuxin) 18"w X 17"d
Manufacturer: Pride Mobility
Black Vinyl Molded, Deluxe Stadium, (shuxin) 18

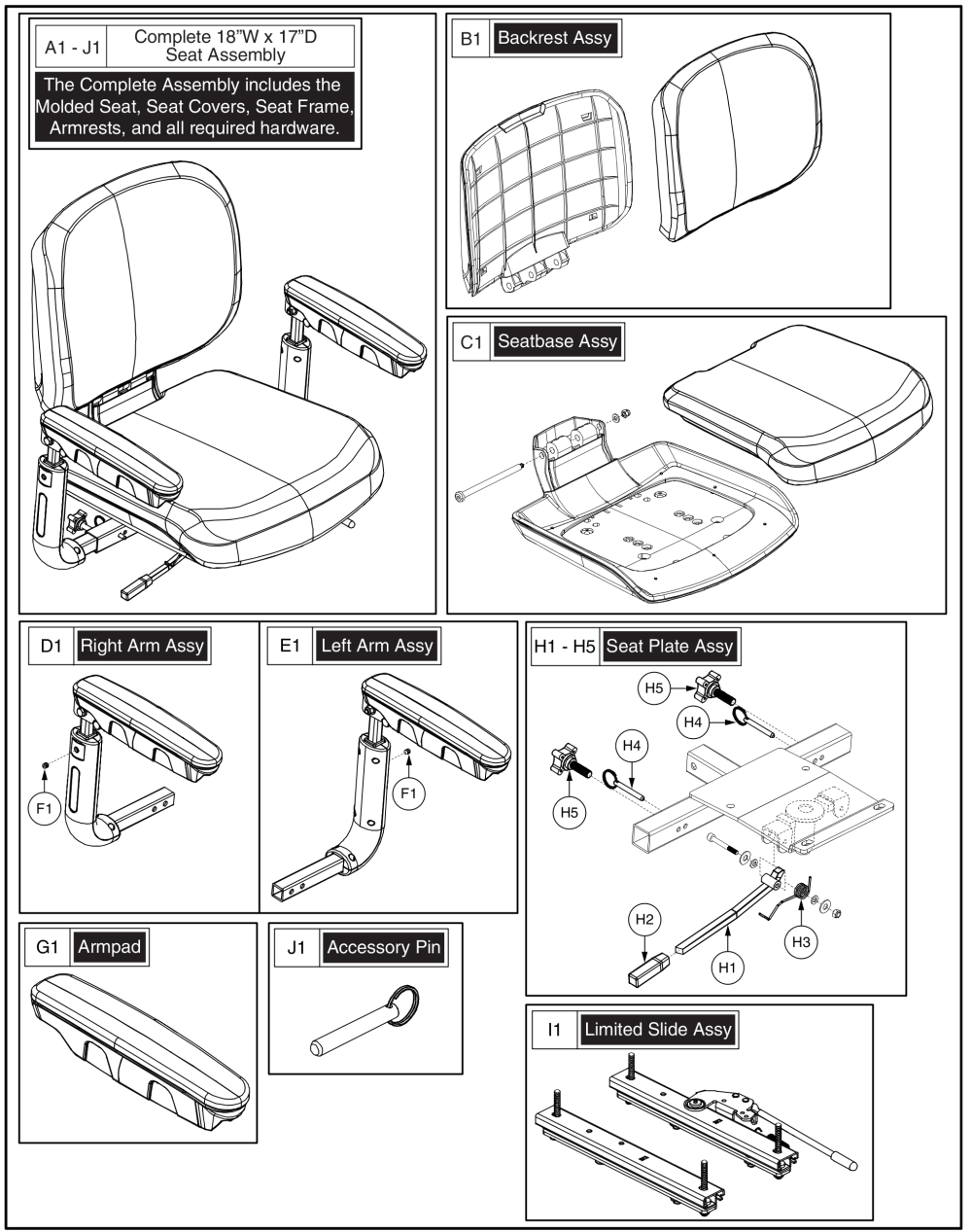

(Click on image to enlarge)

Pos. Part # Description Price UOM Buy
A1 - J1 SET2002307 Seat, Assy, Molded Plastic, Black Vinyl, 18"W X 17"D, W/Seat Frame, Limited Sliders, And Height Adjustable Arms, Pride Logo
$418.00
EA
B1 SET2003048 BACKREST ASSEMBLY
$93.70
EA
C1 SET2003049 SEAT BASE ASSEMBLY
$145.20
EA
D1 MEC2002758 RIGHT ARMREST ASSEMBLY
$76.80
EA
E1 MEC2002771 LEFT ARMREST ASSEMBLY
$76.80
EA
F1 SCRSETS1104 SCREW, SET, M8-1.25 X 8MM, CUP POINT W/NYLON PATCH
$3.20
EA
G1 DGN2002738 FULL ARMPAD ASSEMBLY
$24.80
EA
H1 - H5 MEC1800114 SEAT FRAME, ASSY, PLATFORM, MOLDED PLASTIC SEAT, SLIDERS
$59.40
EA
H1 DWR9998C016 LEVER, SEAT RELEASE, ZINC PLATED, REVO, C-9998-016
$24.00
EA
H2 PROHDLC1007 HANDLE, COVER, SEAT LOCK, SC150
$8.90
EA
H3 SPGRAW1010 SPRING, RAW, LEVER LOCKING SC150
$3.20
EA
H4 PINCOTD1000 PIN, COTTERLESS DETENT W/ RING, .25 DIA X 1.5 GRIP LG (DWG B1005-168)
$6.20
EA
H5 DWR1000B152 HANDLE, LOCK KNOB, B-1000-152
$5.00
EA
I1 FRMASMB11451 SEAT, ASSY, LIMITED SLIDE MECHANISM, W/LEFT SIDE HANDLE, SC610/SC710
$150.40
EA
J1 PINCOTD1006 PIN, COTTERLESS DETENT W/RING, .375" DIA X 2.00" GRIP LENGTH, B-1005-169
$6.40
EA
