Catalyst 5 Ti
Name: Catalyst 5 Ti: Catalyst 5ti 80 Degree Fixed Front Frame
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

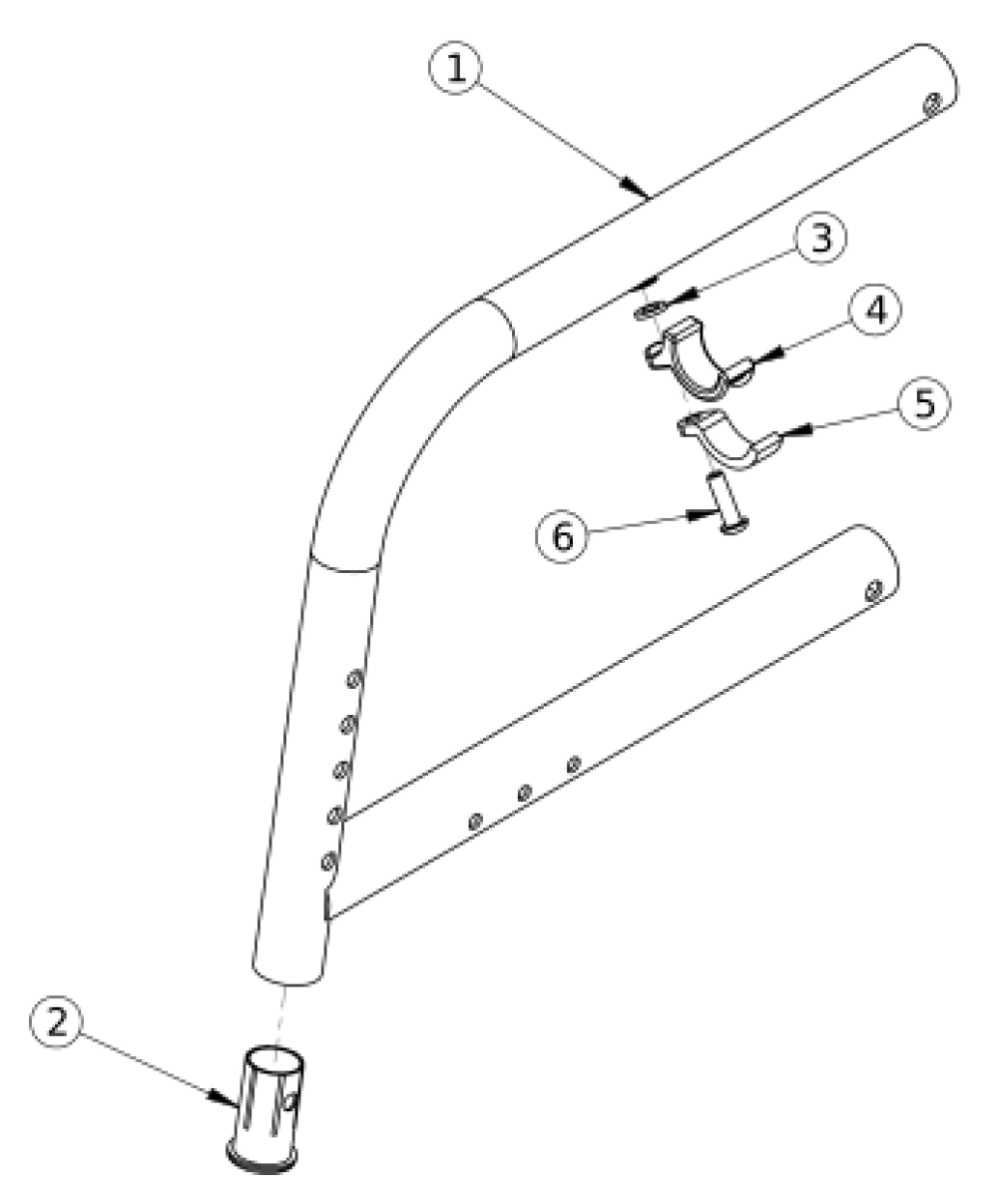

Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 3, 4, 5, 6a | 501005 | Seat Hook and Support Hardware Kit, Standard, Catalyst- Used with Standard Weight Capacity. This kit contains quantity of 1 each | Used with Standard Weight Capacity. This kit contains quantity of 1 each |
$19.48
|
EA |
|
| 3, 4, 5, 6b | 114528 | Seat Hook and Support Hardware Kit, Standard, for Heavy Duty Catalyst- Used with Heavy Duty / 350 lbs Weight Capacity. This kit contains quantity of 1 each | Used with Heavy Duty / 350 lbs Weight Capacity. This kit contains quantity of 1 each |
$20.07
|
EA |
|
| 1a, 2 | 100414 | Frame Assm Cat TI Front Fixed 80 Left 14 |
$516.19
|
EA |
|
|
| 1b, 2 | 100415 | Frame Assm Cat TI Front Fixed 80 Left 15 |
$516.19
|
EA |
|
|
| 1c, 2 | 100416 | Frame Assm Cat TI Front Fixed 80 Left 16 |
$516.19
|
EA |
|
|
| 1d, 2 | 100417 | Frame Assm Cat TI Front Fixed 80 Left 17 |
$516.19
|
EA |
|
|
| 1e, 2 | 501647 | Frame Assm Cat Ti Front Fixed 80 Left 18 |
$516.19
|
EA |
|
|
| 1f, 2 | 501648 | Frame Assm Cat Ti Front Fixed 80 Left 19 |
$516.19
|
EA |
|
|
| 1g, 2 | 100418 | Frame Assm Cat TI Front Fixed 80 Left 20 |
$516.19
|
EA |
|
|
| 1h, 2 | 100409 | Frame Assm Cat TI Front Fixed 80 Right 14 |
$516.19
|
EA |
|
|
| 1i, 2 | 100410 | Frame Assm Cat TI Front Fixed 80 Right 15 |
$516.19
|
EA |
|
|
| 1j, 2 | 100411 | Frame Assm Cat TI Front Fixed 80 Right 16 |
$516.19
|
EA |
|
|
| 1k, 2 | 100412 | Frame Assm Cat TI Front Fixed 80 Right 17 |
$516.19
|
EA |
|
|
| 1l, 2 | 501649 | Frame Assm Cat Ti Front Fixed 80 Right 18 |
$516.19
|
EA |
|
|
| 1m, 2 | 501650 | Frame Assm Cat Ti Front Fixed 80 Right 19 |
$516.19
|
EA |
|
|
| 1n, 2 | 100413 | Frame Assm Cat TI Front Fixed 80 Right 20 |
$516.19
|
EA |
|
|
| 1c, 2 | 114386 | Frame Assm Cat TI Front with Flip Back Arm Modification Fixed 80 Left 16 |
$516.19
|
EA |
|
|
| 1d, 2 | 114387 | Frame Assm Cat TI Front with Flip Back Arm Modification Fixed 80 Left 17 |
$516.19
|
EA |
|
|
| 1e, 2 | 114397 | Frame Assm Cat Ti Front with Flip Back Arm Modification Fixed 80 Left 18 |
$516.19
|
EA |
|
|
| 1f, 2 | 114398 | Frame Assm Cat Ti Front with Flip Back Arm Modification Fixed 80 Left 19 |
$516.19
|
EA |
|
|
| 1g, 2 | 114388 | Frame Assm Cat TI Front with Flip Back Arm Modification Fixed 80 Left 20 |
$516.19
|
EA |
|
|
| 1j, 2 | 114381 | Frame Assm Cat TI Front with Flip Back Arm Modification Fixed 80 Right 16 |
$516.19
|
EA |
|
|
| 1k, 2 | 114382 | Frame Assm Cat TI Front with Flip Back Arm Modification Fixed 80 Right 17 |
$516.19
|
EA |
|
|
| 1l, 2 | 114399 | Frame Assm Cat Ti Front with Flip Back Arm Modification Fixed 80 Right 18 |
$516.19
|
EA |
|
|
| 1m, 2 | 114400 | Frame Assm Cat Ti Front with Flip Back Arm Modification Fixed 80 Right 19 |
$516.19
|
EA |
|
|
| 1n, 2 | 114383 | Frame Assm Cat TI Front with Flip Back Arm Modification Fixed 80 Right 20 |
$516.19
|
EA |
|
|
| 2 | 000034 | Sleeve 3/4" x 1 1/2" |
$4.10
|
EA |
|
|
| 3 | 100831 | 1/2" Washer OD .040" Thick |
$1.77
|
EA |
|
|
| 4 | 000003 | Seat Hook, Catalyst |
$8.62
|
EA |
|
|
| 5 | 000004 | Seat Hook Support, Catalyst |
$7.34
|
EA |
|
|
| 6a | 100668 | M6 x 20 CLS10.9 BTN SHCS ZC w/Patch- Used with Standard Weight Capacity | Used with Standard Weight Capacity |
$1.77
|
EA |
|
| 6b | 101180 | M6 x 20 SHCS BLK ZC- Used with Heavy Duty / 350 lbs Weight Capacity | Used with Heavy Duty / 350 lbs Weight Capacity |
$2.36
|
EA |
|
