Catalyst 5 Ti
Name: Catalyst 5 Ti: Catalyst / Spark 22" One Arm Drive Quick Release - Aluminum Drive Handrim
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

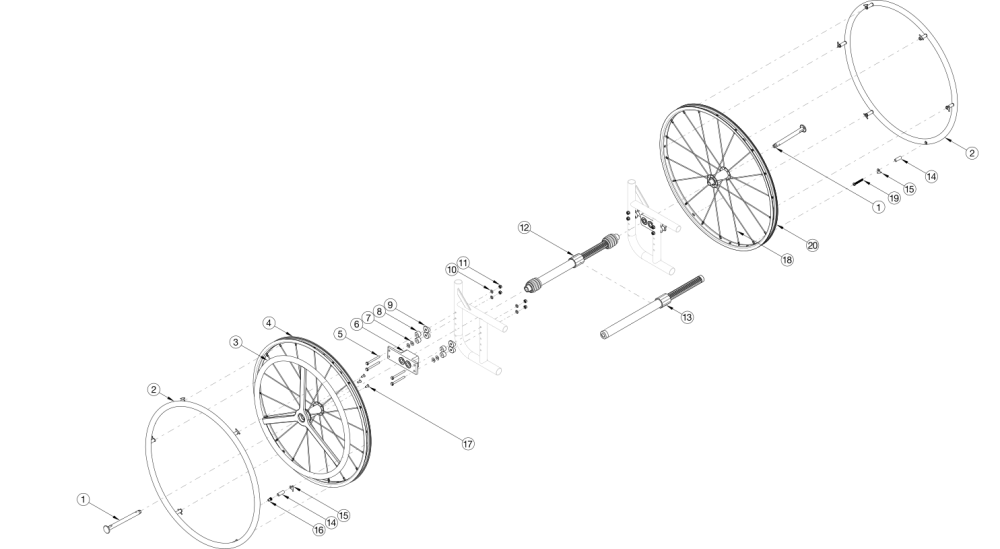

Part Picture
(Click on image to enlarge)
Catalyst One Arm Drive (Quick Release) Hardware and Drive Shaft GuideReference Catalyst One Arm Drive (Quick Release) Hardware and Drive Shaft Chart to determine which retrofit kit is needed for your configuration.
Effective 5/13/2022, all One Arm Drives will be shipped with a close mounted handrim on the non-drive wheel.
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1, 2a, 3a, 4, 5a - 5j, 6 - 8, 9a, 9b, 10, 11, 13a, 14 - 20 | 112778 | Catalyst Quick Release One Arm Drive Retrofit Kit, 0° Camber, 22" Spoke with Aluminum Drive Handrim, Aluminum Non Drive Handrim, 177-255mm Drive Shaft |
$2,109.87
|
EA |
|
|
| 1, 2a, 3a, 4, 5a - 5j, 6 - 8, 9a, 9b, 10, 11, 13b, 14 - 20 | 112779 | Catalyst Quick Release One Arm Drive Retrofit Kit, 0° Camber, 22" Spoke with Aluminum Drive Handrim, Aluminum Non Drive Handrim, 225-295mm Drive Shaft |
$2,109.87
|
EA |
|
|
| 1, 2a, 3a, 4, 5a - 5j, 6 - 8, 9a, 9b, 10, 11, 13c, 14 - 20 | 112780 | Catalyst Quick Release One Arm Drive Retrofit Kit, 0° Camber, 22" Spoke with Aluminum Drive Handrim, Aluminum Non Drive Handrim, 260-370mm Drive Shaft |
$2,109.87
|
EA |
|
|
| 1, 2a, 3a, 4, 5a - 5j, 6 - 8, 9a, 9b, 10, 11, 13d, 14 - 20 | 112781 | Catalyst Quick Release One Arm Drive Retrofit Kit, 0° Camber, 22" Spoke with Aluminum Drive Handrim, Aluminum Non Drive Handrim, 330-440mm Drive Shaft |
$2,109.87
|
EA |
|
|
| 1, 2a, 3a, 4, 5a - 5j, 6 - 8, 9a, 9b, 10, 11, 13e, 14 - 20 | 112782 | Catalyst Quick Release One Arm Drive Retrofit Kit, 0° Camber, 22" Spoke with Aluminum Drive Handrim, Aluminum Non Drive Handrim, 421-491mm Drive Shaft |
$2,109.87
|
EA |
|
|
| 1, 2a, 3a, 4, 5a - 5j, 6 - 8, 9a, 9b, 10, 11, 13f, 14 - 20 | 112783 | Catalyst Quick Release One Arm Drive Retrofit Kit, 0° Camber, 22" Spoke with Aluminum Drive Handrim, Aluminum Non Drive Handrim, 484-595mm Drive Shaft |
$2,166.96
|
EA |
|
|
| 1, 2a, 3a, 4, 5a - 5j, 6 - 8, 9a, 9b, 10, 11, 12a, 14 - 20 | 112784 | Catalyst Quick Release One Arm Drive Retrofit Kit, 2° Camber, 22" Spoke with Aluminum Drive Handrim, Aluminum Non Drive Handrim, 180-210mm Drive Shaft |
$2,180.77
|
EA |
|
|
| 1, 2a, 3a, 4, 5a - 5j, 6 - 8, 9a, 9b, 10, 11, 12b, 14 - 20 | 112785 | Catalyst Quick Release One Arm Drive Retrofit Kit, 2° Camber, 22" Spoke with Aluminum Drive Handrim, Aluminum Non Drive Handrim, 195-235mm Drive Shaft |
$2,180.77
|
EA |
|
|
| 1, 2a, 3a, 4, 5a - 5j, 6 - 8, 9a, 9b, 10, 11, 12c, 14 - 20 | 112786 | Catalyst Quick Release One Arm Drive Retrofit Kit, 2° Camber, 22" Spoke with Aluminum Drive Handrim, Aluminum Non Drive Handrim, 220-280mm Drive Shaft |
$2,123.68
|
EA |
|
|
| 1, 2a, 3a, 4, 5a - 5j, 6 - 8, 9a, 9b, 10, 11, 12d, 14 - 20 | 112787 | Catalyst Quick Release One Arm Drive Retrofit Kit, 2° Camber, 22" Spoke with Aluminum Drive Handrim, Aluminum Non Drive Handrim, 270-330mm Drive Shaft |
$2,123.68
|
EA |
|
|
| 1, 2a, 3a, 4, 5a - 5j, 6 - 8, 9a, 9b, 10, 11, 12e, 14 - 20 | 112788 | Catalyst Quick Release One Arm Drive Retrofit Kit, 2° Camber, 22" Spoke with Aluminum Drive Handrim, Aluminum Non Drive Handrim, 295-370mm Drive Shaft |
$2,123.68
|
EA |
|
|
| 1, 2a, 3a, 4, 5a - 5j, 6 - 8, 9a, 9b, 10, 11, 12f, 14 - 20 | 112789 | Catalyst Quick Release One Arm Drive Retrofit Kit, 2° Camber, 22" Spoke with Aluminum Drive Handrim, Aluminum Non Drive Handrim, 350-460mm Drive Shaft |
$2,123.68
|
EA |
|
|
| 1, 2a, 3a, 4, 5a - 5j, 6 - 8, 9a, 9b, 10, 11, 12g, 14 - 20 | 112790 | Catalyst Quick Release One Arm Drive Retrofit Kit, 2° Camber, 22" Spoke with Aluminum Drive Handrim, Aluminum Non Drive Handrim, 420-530mm Drive Shaft |
$2,123.68
|
EA |
|
|
| 1, 2b, 3a, 4, 5a - 5j, 6 - 8, 9a, 9b, 10, 11, 13a, 14 - 20 | 121714 | Catalyst Quick Release One Arm Drive Retrofit Kit, 0° Camber, 22" Spoke with Aluminum Drive Handrim, Plastic Coated Non Drive Handrim, 177-255mm Drive Shaft |
$2,243.52
|
EA |
|
|
| 1, 2b, 3a, 4, 5a - 5j, 6 - 8, 9a, 9b, 10, 11, 13b, 14 - 20 | 121715 | Catalyst Quick Release One Arm Drive Retrofit Kit, 0° Camber, 22" Spoke with Aluminum Drive Handrim, Plastic Coated Non Drive Handrim, 225-295mm Drive Shaft |
$2,243.52
|
EA |
|
|
| 1, 2b, 3a, 4, 5a - 5j, 6 - 8, 9a, 9b, 10, 11, 13c, 14 - 20 | 121716 | Catalyst Quick Release One Arm Drive Retrofit Kit, 0° Camber, 22" Spoke with Aluminum Drive Handrim, Plastic Coated Non Drive Handrim, 260-370mm Drive Shaft |
$2,243.52
|
EA |
|
|
| 1, 2b, 3a, 4, 5a - 5j, 6 - 8, 9a, 9b, 10, 11, 13d, 14 - 20 | 121717 | Catalyst Quick Release One Arm Drive Retrofit Kit, 0° Camber, 22" Spoke with Aluminum Drive Handrim, Plastic Coated Non Drive Handrim, 330-440mm Drive Shaft |
$2,243.52
|
EA |
|
|
| 1, 2b, 3a, 4, 5a - 5j, 6 - 8, 9a, 9b, 10, 11, 13e, 14 - 20 | 121718 | Catalyst Quick Release One Arm Drive Retrofit Kit, 0° Camber, 22" Spoke with Aluminum Drive Handrim, Plastic Coated Non Drive Handrim, 421-491mm Drive Shaft |
$2,243.52
|
EA |
|
|
| 1, 2b, 3a, 4, 5a - 5j, 6 - 8, 9a, 9b, 10, 11, 13f, 14 - 20 | 121719 | Catalyst Quick Release One Arm Drive Retrofit Kit, 0° Camber, 22" Spoke with Aluminum Drive Handrim, Plastic Coated Non Drive Handrim, 484-595mm Drive Shaft |
$2,298.68
|
EA |
|
|
| 1, 2b, 3a, 4, 5a - 5j, 6 - 8, 9a, 9b, 10, 11, 12a, 14 - 20 | 121720 | Catalyst Quick Release One Arm Drive Retrofit Kit, 2° Camber, 22" Spoke with Aluminum Drive Handrim, Plastic Coated Non Drive Handrim, 180-210mm Drive Shaft |
$2,312.02
|
EA |
|
|
| 1, 2b, 3a, 4, 5a - 5j, 6 - 8, 9a, 9b, 10, 11, 12b, 14 - 20 | 121721 | Catalyst Quick Release One Arm Drive Retrofit Kit, 2° Camber, 22" Spoke with Aluminum Drive Handrim, Plastic Coated Non Drive Handrim, 195-235mm Drive Shaft |
$2,312.02
|
EA |
|
|
| 1, 2b, 3a, 4, 5a - 5j, 6 - 8, 9a, 9b, 10, 11, 12c, 14 - 20 | 121722 | Catalyst Quick Release One Arm Drive Retrofit Kit, 2° Camber, 22" Spoke with Aluminum Drive Handrim, Plastic Coated Non Drive Handrim, 220-280mm Drive Shaft |
$2,256.86
|
EA |
|
|
| 1, 2b, 3a, 4, 5a - 5j, 6 - 8, 9a, 9b, 10, 11, 12d, 14 - 20 | 121723 | Catalyst Quick Release One Arm Drive Retrofit Kit, 2° Camber, 22" Spoke with Aluminum Drive Handrim, Plastic Coated Non Drive Handrim, 270-330mm Drive Shaft |
$2,256.86
|
EA |
|
|
| 1, 2b, 3a, 4, 5a - 5j, 6 - 8, 9a, 9b, 10, 11, 12e, 14 - 20 | 121724 | Catalyst Quick Release One Arm Drive Retrofit Kit, 2° Camber, 22" Spoke with Aluminum Drive Handrim, Plastic Coated Non Drive Handrim, 295-370mm Drive Shaft |
$2,256.86
|
EA |
|
|
| 1, 2b, 3a, 4, 5a - 5j, 6 - 8, 9a, 9b, 10, 11, 12f, 14 - 20 | 121725 | Catalyst Quick Release One Arm Drive Retrofit Kit, 2° Camber, 22" Spoke with Aluminum Drive Handrim, Plastic Coated Non Drive Handrim, 350-460mm Drive Shaft |
$2,256.86
|
EA |
|
|
| 1, 2b, 3a, 4, 5a - 5j, 6 - 8, 9a, 9b, 10, 11, 12g, 14 - 20 | 121726 | Catalyst Quick Release One Arm Drive Retrofit Kit, 2° Camber, 22" Spoke with Aluminum Drive Handrim, Plastic Coated Non Drive Handrim, 420-530mm Drive Shaft |
$2,256.86
|
EA |
|
|
| 1, 2a, 14, 15, 19, 20b | 119588 | Quick Release One Arm Drive, 22" Spoke Wheel with Axle (Driven Side) and Close Mounted Handrim |
$560.44
|
EA |
|
|
| 1, 2b, 14, 15, 19, 20b | 121854 | Quick Release One Arm Drive, 22" Spoke Wheel with Axle (Driven Side) and Close Mounted Plastic Coated Handrim |
$602.63
|
EA |
|
|
| 1, 3a, 4, 17 | 112900 | Quick Release One Arm Drive, 22" Spoke Wheel with Axle and Aluminum Drive Handrim |
$447.74
|
EA |
|
|
| 14, 15, 16 | 502168 | Handrim Hardware Kit, 6 Rivet Nut, EACH |
$41.16
|
EA |
|
|
| 2a | 100560 | Handrim Aluminum Anodized 6 Rivet Nut 22"- Does not include attaching hardware | Does not include attaching hardware |
$82.32
|
EA |
|
| 2b | 112820 | Handrim Plastic Coated 6 Rivet Nut 22"- Does not include attaching hardware | Does not include attaching hardware |
$145.60
|
EA |
|
| 2a, 14, 15, 19 | 116448 | Alumnium Anodized Handrim 6 Rivet Nut 22" with Close Mount Hardware, Non-Drive Side |
$113.34
|
EA |
|
|
| 2b, 14, 15, 19 | 121851 | Plastic Coated Handrim 6 Rivet Nut 22" with Close Mount Hardware, Non-Drive Side |
$161.38
|
EA |
|
|
| 3a | 111831 | Quick Release One Arm Drive, Aluminum Drive Side Handrim for 22" Wheel- Does not include attaching hardware | Does not include attaching hardware |
$279.84
|
EA |
|
| 3b | 118247 | Quick Release One Arm Drive, Aluminum Drive Side Handrim for 22" Wheel with Micro Grip- Does not include attaching hardware | Does not include attaching hardware |
$304.36
|
EA |
|
| 18b | 111514 | Replacement Spoke, Quick Release One Arm Drive, 22" |
$5.00
|
EA |
|
|
| 5a | 100676 | M6 x 55 CLS10.9 DIN931 HHCS ZC- Reference Hardware and Drive Shaft Chart for usage | Reference Hardware and Drive Shaft Chart for usage |
$1.77
|
EA |
|
| 5b | 100677 | M6 x 60 CLS10.9 DIN931 HHCS ZC- Reference Hardware and Drive Shaft Chart for usage | Reference Hardware and Drive Shaft Chart for usage |
$1.77
|
EA |
|
| 5c | 100679 | M6 x 65 CLS 8.8 DIN931 HHCS ZC- Reference Hardware and Drive Shaft Chart for usage | Reference Hardware and Drive Shaft Chart for usage |
$1.77
|
|
|
| 5d | 101826 | M6 x 50 HHCS Blk Zn- Reference Hardware and Drive Shaft Chart for usage | Reference Hardware and Drive Shaft Chart for usage |
$2.36
|
EA |
|
| 5e | 100680 | M6 x 70 CLS 8.8 DIN931 HHCS ZC- Reference Hardware and Drive Shaft Chart for usage | Reference Hardware and Drive Shaft Chart for usage |
$1.77
|
|
|
| 5f | 102996 | M6 x 85mm HHCS Blk Zn- Reference Hardware and Drive Shaft Chart for usage | Reference Hardware and Drive Shaft Chart for usage |
$14.24
|
|
|
| 5g | 100660 | M6 x 80mm CLS8.8 DIN931 HHCS ZC- Reference Hardware and Drive Shaft Chart for usage | Reference Hardware and Drive Shaft Chart for usage |
$1.77
|
|
|
| 5h | 100544 | M6 x 75 CLS 8.8 DIN931 HHCS ZC- Reference Hardware and Drive Shaft Chart for usage | Reference Hardware and Drive Shaft Chart for usage |
$1.77
|
|
|
| 5i | 100704 | M6 x 90 CLS8.8 DIN931 HHCS ZC- Reference Hardware and Drive Shaft Chart for usage | Reference Hardware and Drive Shaft Chart for usage |
$1.77
|
EA |
|
| 5j | 100674 | M6 x 45 CLS10.9 DIN931 HHCS ZC- Reference Hardware and Drive Shaft Chart for usage | Reference Hardware and Drive Shaft Chart for usage |
$1.77
|
|
|
| 6 | 003207 | One Arm Drive Catalyst Axle Plate |
$115.25
|
EA |
|
|
| 7 | 100763 | Washer #12 Thin |
$1.73
|
|
||
| 8 | 003172 | One Arm Drive Cat Axle Plate Spacer- Reference Hardware and Drive Shaft Chart for usage | Reference Hardware and Drive Shaft Chart for usage |
$15.99
|
|
|
| 9a | 000056 | Saddle 1 1/8"- Used with Curved Rear Frames | Used with Curved Rear Frames |
$1.77
|
|
|
| 9b | 000055 | Saddle 1"- Used with Depth Adjustable / Spark Rear Frames | Used with Depth Adjustable / Spark Rear Frames |
$1.77
|
EA |
|
| 10 | 100746 | M6 Flat Washer Blk Zn |
$1.77
|
EA |
|
|
| 11 | 100658 | M6 Nylock Nut Blk Zn |
$1.17
|
EA |
|
|
| 12a | 111627 | One Arm Drive - Quick Release Camber Drive Shaft 180-210mm- Used when 2° camber is present. Reference Hardware and Drive Shaft Chart for usage | Used when 2° camber is present. Reference Hardware and Drive Shaft Chart for usage |
$456.69
|
EA |
|
| 12b | 111628 | One Arm Drive - Quick Release Camber Drive Shaft 195-235mm- Used when 2° camber is present. Reference Hardware and Drive Shaft Chart for usage | Used when 2° camber is present. Reference Hardware and Drive Shaft Chart for usage |
$456.69
|
EA |
|
| 12c | 111498 | One Arm Drive - Quick Release Camber Drive Shaft 220-280mm- Used when 2° camber is present. Reference Hardware and Drive Shaft Chart for usage | Used when 2° camber is present. Reference Hardware and Drive Shaft Chart for usage |
$399.61
|
EA |
|
| 12d | 111499 | One Arm Drive - Quick Release Camber Drive Shaft 270-330mm- Used when 2° camber is present. Reference Hardware and Drive Shaft Chart for usage | Used when 2° camber is present. Reference Hardware and Drive Shaft Chart for usage |
$399.61
|
EA |
|
| 12e | 111500 | One Arm Drive - Quick Release Camber Drive Shaft 295-370mm- Used when 2° camber is present. Reference Hardware and Drive Shaft Chart for usage | Used when 2° camber is present. Reference Hardware and Drive Shaft Chart for usage |
$399.61
|
EA |
|
| 12f | 111501 | One Arm Drive - Quick Release Camber Drive Shaft 350-460mm- Used when 2° camber is present. Reference Hardware and Drive Shaft Chart for usage | Used when 2° camber is present. Reference Hardware and Drive Shaft Chart for usage |
$399.61
|
EA |
|
| 12g | 111502 | One Arm Drive - Quick Release Camber Drive Shaft 420-530mm- Used when 2° camber is present. Reference Hardware and Drive Shaft Chart for usage | Used when 2° camber is present. Reference Hardware and Drive Shaft Chart for usage |
$399.61
|
EA |
|
| 13a | 111503 | One Arm Drive - Quick Release Zero Camber Drive Shaft 177-255mm- Used when 0° camber is present. Reference Hardware and Drive Shaft Chart for usage | Used when 0° camber is present. Reference Hardware and Drive Shaft Chart for usage |
$399.61
|
EA |
|
| 13b | 111504 | One Arm Drive - Quick Release Zero Camber Drive Shaft 225-295mm- Used when 0° camber is present. Reference Hardware and Drive Shaft Chart for usage | Used when 0° camber is present. Reference Hardware and Drive Shaft Chart for usage |
$399.61
|
EA |
|
| 13c | 111505 | One Arm Drive - Quick Release Zero Camber Drive Shaft 260-370mm- Used when 0° camber is present. Reference Hardware and Drive Shaft Chart for usage | Used when 0° camber is present. Reference Hardware and Drive Shaft Chart for usage |
$399.61
|
EA |
|
| 13d | 111506 | One Arm Drive - Quick Release Zero Camber Drive Shaft 330-440mm- Used when 0° camber is present. Reference Hardware and Drive Shaft Chart for usage | Used when 0° camber is present. Reference Hardware and Drive Shaft Chart for usage |
$399.61
|
EA |
|
| 13e | 111507 | One Arm Drive - Quick Release Zero Camber Drive Shaft 421-491mm- Used when 0° camber is present. Reference Hardware and Drive Shaft Chart for usage | Used when 0° camber is present. Reference Hardware and Drive Shaft Chart for usage |
$399.61
|
EA |
|
| 13f | 111860 | One Arm Drive - Quick Release Zero Camber/Camber Drive Shaft 485-595mm- Used when 0° camber is present. Reference Hardware and Drive Shaft Chart for usage | Used when 0° camber is present. Reference Hardware and Drive Shaft Chart for usage |
$399.61
|
EA |
|
| 14 | 100653 | Handrim Spacer Spoke |
$1.17
|
|
||
| 15 | 100698 | Handrim Tab |
$4.45
|
|
||
| 16 | 122063 | PHMS, M5x0.8x40, CLS4.8, PHL, BLZ, NYL, DIN7985, Custom |
$1.77
|
|
||
| 17 | 103522 | M5 x 0.8 x 12 FHCS CLS 10.9 Nyl Blk Zn DIN7991 |
$1.17
|
EA |
|
|
| 18 | 111514 | Replacement Spoke, Quick Release One Arm Drive, 22" |
$5.00
|
EA |
|
|
| 19 | 122065 | BHCS, M5x0.8x25, CLS12.9, BLZ, NYL, ISO7380, Custom |
$1.17
|
EA |
|
