Cr45

Name: CR45: Cr45 Foot Tilt
Manufacturer: Ki Mobility

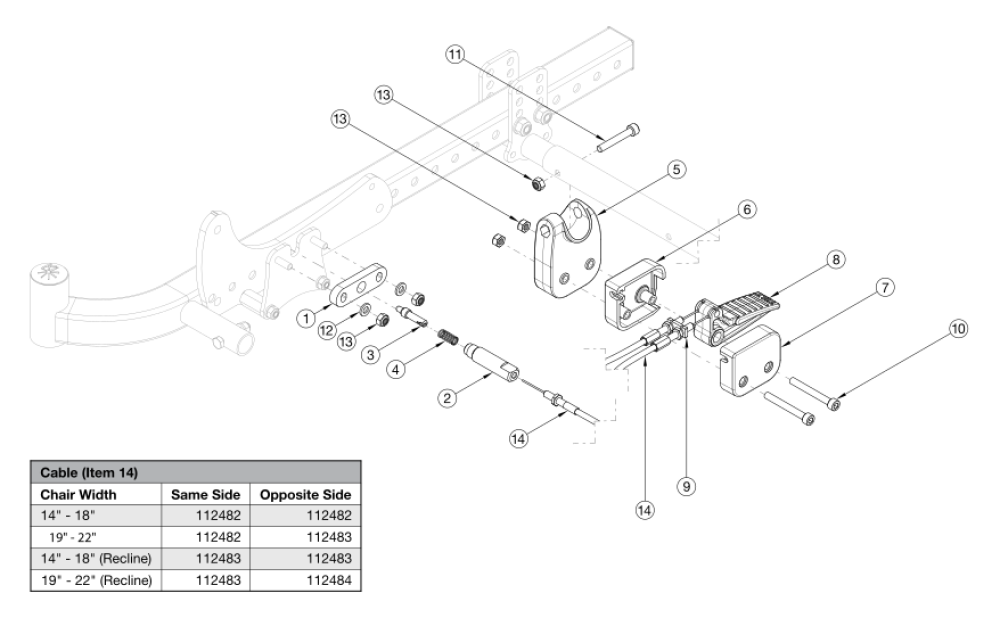

Cr45 Foot Tilt parts diagram
(Click on image to enlarge)

Cables are determined based on width of chair. Please see chart within diagram to determine which cables are used. If retrofitting from Hand Tilt, the complete Foot Tilt Kit is recommended.
Attachments:
Pos. Part # Description Price UOM Buy
1 - 13, 14a 116292 Foot Tilt Kit, 14-18 Wide
$367.31
EA
1 - 13, 14a, 14b 116293 Foot Tilt Kit, 19-22 Wide
$369.53
EA
1 - 13, 14b 116294 Foot Tilt Kit, Recline, 14-18 Wide
$371.74
EA
1 - 13, 14b, 14c 116295 Foot Tilt Kit, Recline, 19-22 Wide
$374.33
EA
1 112477 Tilt Lock Plunger Adapter
$32.28
2 112478 Plunger Housing
$11.84
3 112479 Plunger Pin
$29.91
4 112480 Spring, Comp, .312ODx.81LGx.032W
$1.56
5 112481 Foot Tilt Pedal Mount
$18.13
EA
9 110226 Nut Plate, Cable, M6, .50SP
$13.03
10 102473 M6 X 50 CLS12.9 SHCS BLK ZC
$4.70
EA
11 101847 M6 x 40 SHCS Blk Zn
$1.07
EA
12 100746 M6 Flat Washer Blk Zn
$1.77
EA
13 100658 M6 Nylock Nut Blk Zn
$1.17
EA
14a 112482 Foot Tilt Cable Short, CR45
$63.30
EA
14b 112483 Foot Tilt Cable Medium, CR45
$65.52
EA
14c 112484 Foot Tilt Cable Long, CR45
$68.11
EA
