loadingLoading... CR45

Cr45

Name: CR45: Cr45 Handrims - Projection
Manufacturer: Ki Mobility

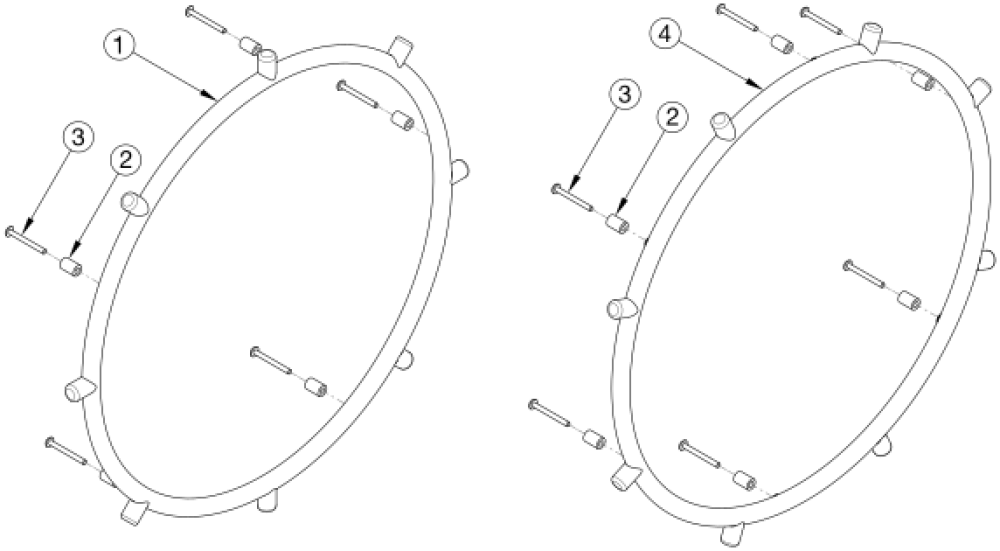

Cr45 Handrims - Projection parts diagram
(Click on image to enlarge)

Handrim Hardware Chart
Pos. Part # Description Price UOM Buy
2, 3a 502171 Handrim Hardware Kit, 5 Rivet Nut, EACH- Used with X Core Mag wheels
$35.28
EA
2, 3b 117377 Handrim Hardware Kit, Standard Mount, MAXX Mag, EACH- Used with MAXX Mag wheels
$34.80
EA
4 112825 Handrim Projection, Vertical, 6 Rivet Nut 24"- Used with MAXX Mag wheels
$229.23
EA
2 100629 Handrim Spacer Alum Ano Riv- Used with X Core Mag wheels (Qty 5 needed) and MAXX Mag wheels (Qty 6 needed)
$1.23
EA
3a 100724 M5 x 55 PH TRS HD M/S ZC- Used with X Core Mag wheels
$1.17
3b 103545 M5 x 50 DIN7985 PH PAN HD M/S BLK ZC- Used with MAXX Mag wheels
$4.56
