Little Wave Arc
Name: Little Wave Arc: Arc Tipping Lever
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

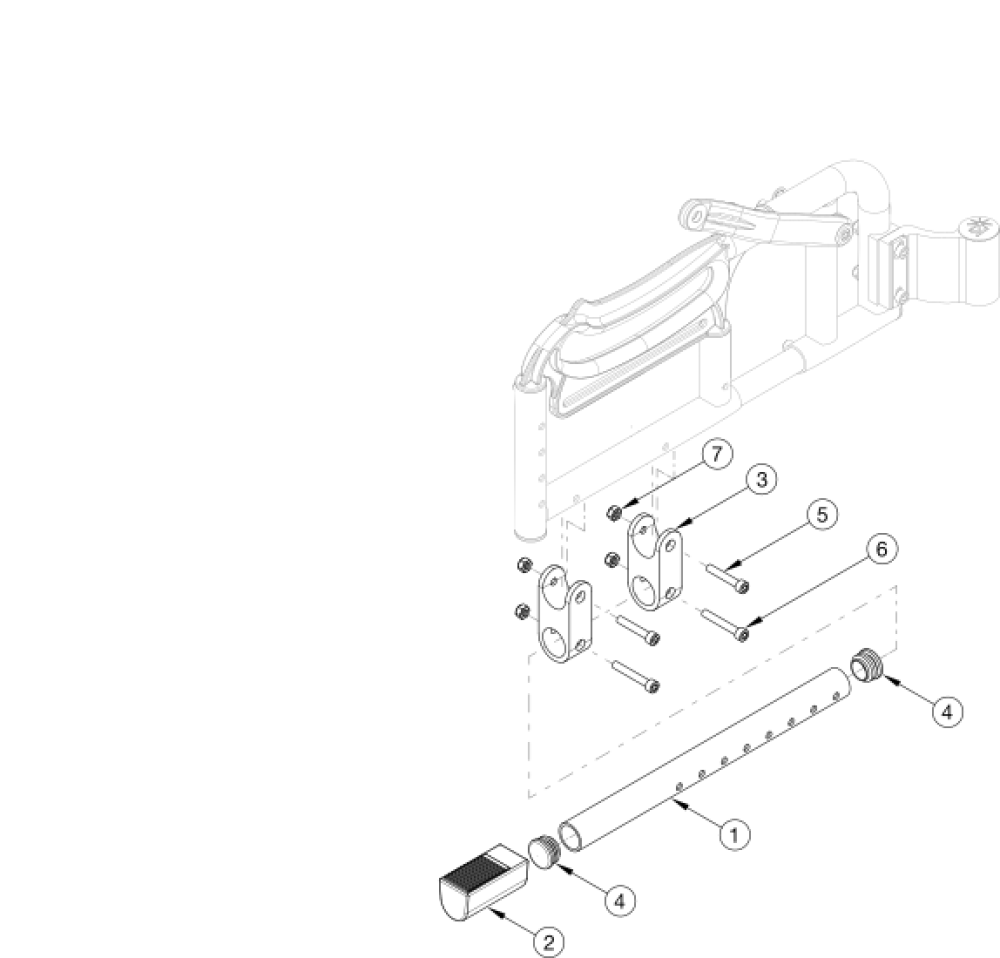

Part Picture
(Click on image to enlarge)
Not able to retrofit
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1 - 7 | 120814 | Tipping Lever Assembly Arc |
$55.40
|
EA |
|
|
| 3, 5 - 7 | 120815 | Tipping Lever Mounting Hardware Arc |
$68.32
|
EA |
|
|
| 3 | 110269 | Mount Extension, Vent Tray / Tipping Lever |
$12.75
|
|
||
| 4 | 100804 | Tube End Plug 1" |
$1.77
|
EA |
|
|
| 5 | 101810 | M6 x 35 SHCS BLK ZC |
$1.17
|
EA |
|
|
| 6 | 101847 | M6 x 40 SHCS Blk Zn |
$1.07
|
EA |
|
|
| 7 | 100658 | M6 Nylock Nut Blk Zn |
$1.17
|
EA |
|
