Little Wave Arc

Name: Little Wave Arc: Arc Armrests - Height Adjustable Tall T-arm
Manufacturer: Ki Mobility

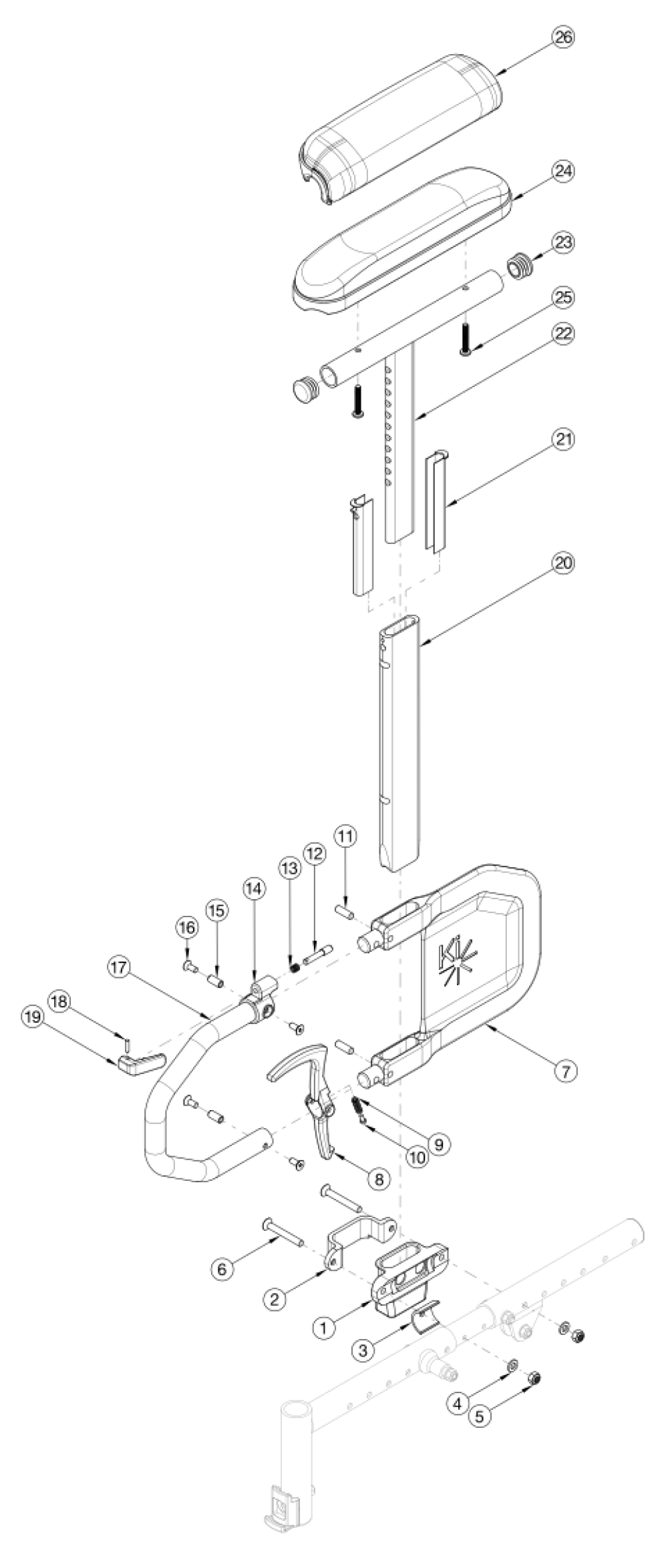

Arc Armrests - Height Adjustable Tall T-arm parts diagram
(Click on image to enlarge)

If retrofitting, Receivers are needed.
Pos. Part # Description Price UOM Buy
1 - 21, 22a, 23, 24b, 25a 116274 Height Adj Tall T-Arm Assm w/ Short Side Shield and Standard Pad Desk and Receiver, Arc
$337.80
EA
1 - 21, 22b, 23, 24a, 25a 116275 Height Adj Tall T-Arm Assm w/ Short Side Shield and Standard Pad Full and Receiver, Arc
$337.80
EA
1 - 21, 22a, 23, 25b, 26b 116276 Height Adj Tall T-Arm Assm w/ Short Side Shield and Waterfall Pad Desk and Receiver, Arc
$348.05
EA
1 - 21, 22b, 23, 25b, 26a 116277 Height Adj Tall T-Arm Assm w/ Short Side Shield and Waterfall Pad Full and Receiver, Arc
$348.05
EA
1 - 21, 22a, 23, 24b, 25a 116278 Height Adj Tall T-Arm Assm w/ Short Side Shield and Standard Pad Desk and Receiver Pair, Arc
$675.60
EA
1 - 21, 22b, 23, 24a, 25a 116279 Height Adj Tall T-Arm Assm w/ Short Side Shield and Standard Pad Full and Receiver Pair, Arc
$675.60
EA
1 - 21, 22a, 23, 25b, 26b 116280 Height Adj Tall T-Arm Assm w/ Short Side Shield and Waterfall Pad Desk and Receiver Pair, Arc
$696.11
EA
1 - 21, 22b, 23, 25b, 26a 116281 Height Adj Tall T-Arm Assm w/ Short Side Shield and Waterfall Pad Full and Receiver Pair, Arc
$696.11
EA
7 - 21, 22a, 23, 24b, 25a 116163 Height Adjustable Tall T-Arm Assembly w/Short Side Shield and Std Pad Desk, Pair
$546.92
EA
7 - 21, 22b, 23, 24a, 25a 116165 Height Adjustable Tall T-Arm Assembly w/Short Side Shield and Std Pad Full, Pair
$546.92
EA
7 - 21, 22a, 23, 25b, 26b 116167 Height Adjustable Tall T-Arm Assembly w/Short Side Shield and Waterfall Pad Desk, Pair
$567.44
EA
7 - 21, 22b, 23, 25b, 26a 116169 Height Adjustable Tall T-Arm Assembly w/Short Side Shield and Waterfall Pad Full, Pair
$567.44
EA
7 - 21, 22a, 23, 24b, 25a 116162 Height Adjustable Tall T-Arm Assembly w/Short Side Shield and Std Pad Desk
$273.47
EA
7 - 21, 22b, 23, 24a, 25a 116164 Height Adjustable Tall T-Arm Assembly w/Short Side Shield and Std Pad Full
$273.47
EA
7 - 21, 22a, 23, 25b, 26b 116166 Height Adjustable Tall T-Arm Assembly w/Short Side Shield and Waterfall Pad Desk
$283.71
EA
7 - 21, 22b, 23, 25b, 26a 116168 Height Adjustable Tall T-Arm Assembly w/Short Side Shield and Waterfall Pad Full
$283.71
EA
12 - 14, 16, 18, 19 505490 Height Adjustable T-Arm Upper Latch Assembly
$45.41
EA
8 - 10, 15 116375 Height Adjustable Tall T-Arm Release Lever Assembly
$9.50
EA
7, 11, 15 116377 Height Adjustable Tall T-Arm Short Shield Assembly
$18.40
EA
1 - 6 113772 Height Adj T-Arm Receiver Assembly, Arc
$73.41
EA
3 - 6 113771 Height Adj T-Arm Receiver Hardware Kit, Arc
$27.79
EA
3, 6a, 6b, 6c 113793 Height Adj T-Arm Receiver Screw Kit, Arc- Includes all three receiver screw sizes and spacer. Accommodates one side.
$21.91
EA
7 - 21 114150 Height Adjustable T-Arm Short Lower Assembly, Tall- Does not include t-arm upper, arm pad or arm pad screws
$159.47
EA
7 - 21, 22a, 23 114432 Height Adjustable T-Arm Short Side Shield, Desk, Tall- Does not include arm pad or arm pad screws
$243.46
EA
7 - 21, 22b, 23 114433 Height Adjustable T-Arm Short Side Shield, Full, Tall- Does not include arm pad or arm pad screws
$243.46
EA
1 110240 Receiver, T-Am
$14.92
EA
2 000088 Height Adjustable T Armrest Bracket
$30.69
EA
3 114443 Tube Spacer, Black, 1" OD x .083" x .80 LG
$3.78
EA
4 100746 M6 Flat Washer Blk Zn
$1.77
EA
5 100658 M6 Nylock Nut Blk Zn
$1.17
EA
6a 101592 M6 x 45 CLS10.9 DIN7991 FHCS BLKZC
$2.94
EA
6b 110286 FHCS, M6 x 1.0 x 70 CLS 12.9 BLZ, P/T, DIN7991
$4.35
6c 100662 M6 x 25 FSHCS BLK ZC
$1.77
9 000135 Height Adjustable T Armrest Release Lever Spring
$1.21
EA
10 000152 Height Adjustable T Armrest Release Spring Button
$1.21
EA
11 003641 .25" x .75" Dowel Pin
$1.17
EA
15 003457 M5 x 14mm Barrel Nut
$1.17
EA
16 103522 M5 x 0.8 x 12 FHCS CLS 10.9 Nyl Blk Zn DIN7991
$1.17
EA
17 113138 Height Adjustable T-Arm Transfer Tube, Tall
$36.74
EA
20 113137 Height Adjustable T-Arm Post, Tall
$28.10
EA
21 000090 Height Adjustable T Armrest Shim
$2.86
22a, 23 116379 Height Adjustable Tall T Armrest Upper Desk w/ Tube End Plug
$85.82
EA
22b, 23 116380 Height Adjustable Tall T Armrest Upper Full w/ Tube End Plug
$85.82
EA
23 100803 Tube End Plug 7/8"
$1.77
EA
24a 100500 Arm Pad Full
$26.45
EA
24b 100501 Arm Pad Desk
$26.45
EA
25a 100696 M5 x 30mm PPH Capscrew- Used with Standard Arm Pads
$1.77
EA
25b 100654 M5 x 40 DIN7985 PH Pan HD M/S ZC- Used with Waterfall Arm Pads
$1.77
26a 102452 Waterfall Arm Pad Full
$36.71
EA
26b 102521 Waterfall Arm Pad Desk
$36.71
EA
