Name: Rogue2: Rogue2 / Rogue Xp Luggage Carrier
Manufacturer: Ki Mobility

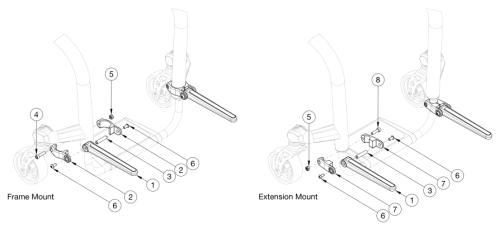

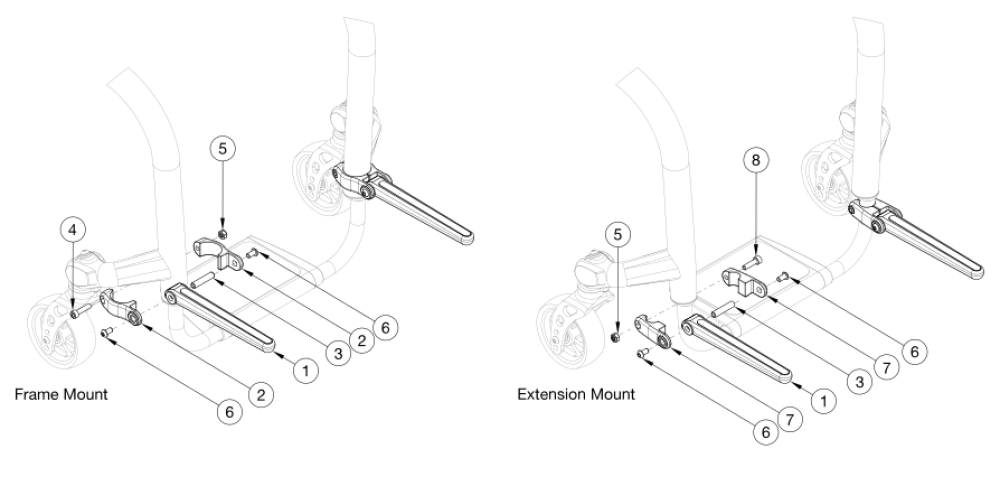

Rogue2 / Rogue Xp Luggage Carrier parts diagram
(Click on image to enlarge)

Used on Rogue XP chairs invoiced starting on 3/12/25
Pos. Part # Description Price UOM Buy
1 - 8 504465 Luggage Carrier Kit, Rogue/Rogue2/Rogue XP/RG ALX/LW XP
$92.42
EA
1 003430 Luggage Carrier Fork Assembly
$33.59
2 003412 Luggage Carrier Clamp 1.375- Used to mount Luggage Carrier to the frame
$9.59
3 003413 Luggage Carrier Barrel
$9.59
4 100780 M6 x 25 SHCS ZC- Used with 003412
$2.41
EA
5 100658 M6 Nylock Nut Blk Zn
$1.19
EA
6 100667 M6 x 12 BTN SHCS BLKZC w/Patch
$1.81
EA
7 003409 Luggage Carrier Clamp .75- Used to mount Luggage Carrier to the footrest tubes/extensions
$9.59
8 101845 M6 x 22 SHCS Blk Zn- Used with 003409
$1.81
