Rogue2

Name: Rogue2: Rogue2 Handrims - Plastic Coated
Manufacturer: Ki Mobility

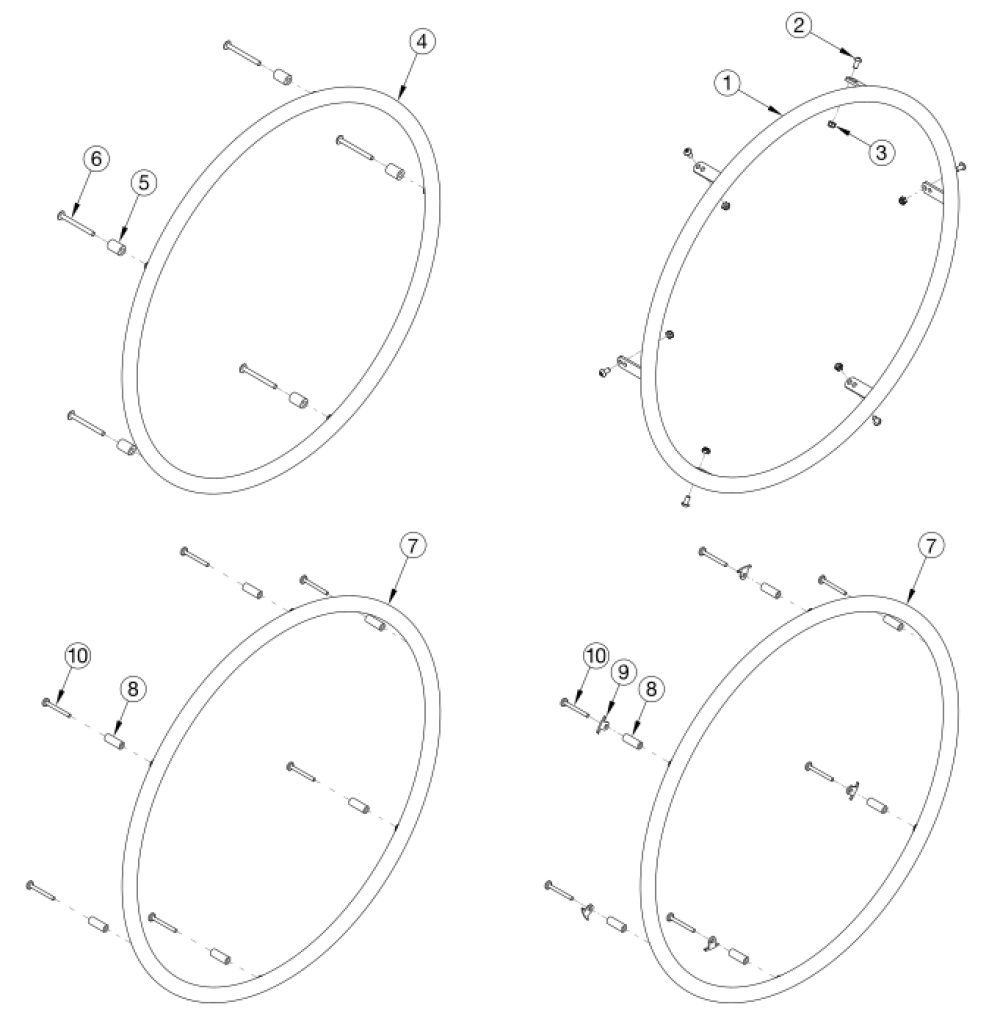

Rogue2 Handrims - Plastic Coated parts diagram
(Click on image to enlarge)

Handrim Hardware Chart For more information see Handrim Hardware Chart. Quantity in Handrim Hardware Kits are for one wheel. Tab mounted handrims must be installed prior to the tire being installed.
Pos. Part # Description Price UOM Buy
8a, 9, 10a 502168 Handrim Hardware Kit, 6 Rivet Nut, EACH- Used with MAXX Spoke wheels with standard handrim mount option
$41.16
EA
8b, 9, 10b 113069 Handrim Hardware Kit, Close Mount, 6 Rivet Nut, EACH- Used with MAXX Spoke wheels with close mount handrim mount option
$57.69
EA
8c, 10c 117377 Handrim Hardware Kit, Standard Mount, MAXX Mag, EACH- Used with MAXX Mag wheels with standard handrim mount option
$34.80
EA
8b, 10a 117378 Handrim Hardware Kit, Close Mount, MAXX Mag, EACH- Used with MAXX Mag wheels with close mount handrim mount option
$40.36
EA
7a 112819 Handrim Plastic Coated 6 Rivet Nut 20"- Used on 20" MAXX Spoke and 20" MAXX Mag wheels. Replaced 200542.
$162.78
EA
7b 112820 Handrim Plastic Coated 6 Rivet Nut 22"- Used on 22" MAXX Spoke and 22" MAXX Mag wheels. Replaced 100576.
$145.60
EA
7c 112821 Handrim Plastic Coated 6 Rivet Nut 24"- Used on 24" MAXX Spoke and 24" MAXX Mag wheels. Replaced 100577.
$152.88
EA
7d 112822 Handrim Plastic Coated 6 Rivet Nut 25"- Used on 25" MAXX Spoke wheels. Replaced 101870
$162.78
EA
7e 112823 Handrim Plastic Coated 6 Rivet Nut 26"- Used on 26" MAXX Spoke wheels. Replaced 100578.
$145.60
EA
5a, 6a 502173 Handrim Hardware Kit, 5 Rivet Nut, Plastic Coated, EACH- Used with X Core Mag wheels with standard handrim mount option
$35.28
EA
5b, 6b 113070 Handrim Hardware Kit, Close Mount, 5 Rivet Nut, EACH- Used with X Core Mag wheels with close mount handrim mount option
$28.82
EA
4a 101963 Handrim Plastic Coated 5 Rivet Nut 20"- Used on 20" 5-Spoke X Core Mag wheels
$150.00
EA
4b 101964 Handrim Plastic Coated 5 Rivet Nut 22"- Used on 22" 5-Spoke X Core Mag wheels N/A EA Please Call
4c 100976 Handrim Plastic Coated 5 Rivet Nut 24"- Used on 24" 5-Spoke X Core Mag wheels
$141.11
EA
2a, 3 502174 Handrim Hardware Kit, 6 Tab, EACH- Used with Spinergy wheels
$17.65
EA
2b 502170 Handrim Hardware Kit, Superlight, EACH- Used with Superlight Spoke wheels
$17.65
EA
1a 112812 Handrim Plastic Coated 6 Tab 24"- Used on 24" Superlight wheels. Replaced 100836.
$166.49
EA
1b 101091 Handrim Plastic Coated 6 Tab 25"- Used on 25" Superlight wheels
$174.70
EA
1c 103179 Handrim Plastic Coated Spinergy 6 Tab 20"
$217.56
EA
1d 112814 Handrim Plastic Coated Spinergy 6 Tab 22"- Replaces part number 100808
$207.20
EA
1e 112815 Handrim Plastic Coated Spinergy 6 Tab 24"- If chair is invoiced prior to 8/14/19, quantity 2 must be ordered due to a change in finish. Replaced 100615.
$207.20
EA
1f 112816 Handrim Plastic Coated Spinergy 6 Tab 25"- Replaced 100765
$207.20
EA
1g 112817 Handrim Plastic Coated Spinergy 6 Tab 26"- Replaced 101148
$207.20
EA
2a 100669 M5 x 10 BTN SHCS BLKZC w/Patch- Used with Spinergy wheels
$1.77
EA
2b 100536 M5 x 12 BTN SHCS ZC- Used with Superlight Spoke wheels
$2.36
3 100657 M5 Nylock Nut Blk Zn- Used with Spinergy wheels
$0.60
EA
5a 101756 Handrim Spacer Plastic Coated Rivet- Used with X Core Mag with standard handrim mount option
$0.60
6a 100724 M5 x 55 PH TRS HD M/S ZC- Used with X Core Mag with standard handrim mount option
$1.17
8a 100653 Handrim Spacer Spoke- Used with MAXX Spoke with standard handrim mount option
$1.17
8c 100629 Handrim Spacer Alum Ano Riv- Used with MAXX Mag wheels with standard handrim mount option
$1.23
EA
9 100698 Handrim Tab- Used with MAXX Spoke wheels. Tabs are included / installed with MAXX Spoke wheels.
$4.45
10a 100654 M5 x 40 DIN7985 PH Pan HD M/S ZC- Used with MAXX Spoke with standard handrim mount option
$1.77
10c 103545 M5 x 50 DIN7985 PH PAN HD M/S BLK ZC- Used with MAXX Mag wheels with standard handrim mount option
$4.56
