R-trak - Jg7
Name: R-TRAK - JG7: Tb3 Static Seat Interface, R-trak
Manufacturer: Pride Mobility
(Click on image to enlarge)
Manufacturer: Pride Mobility

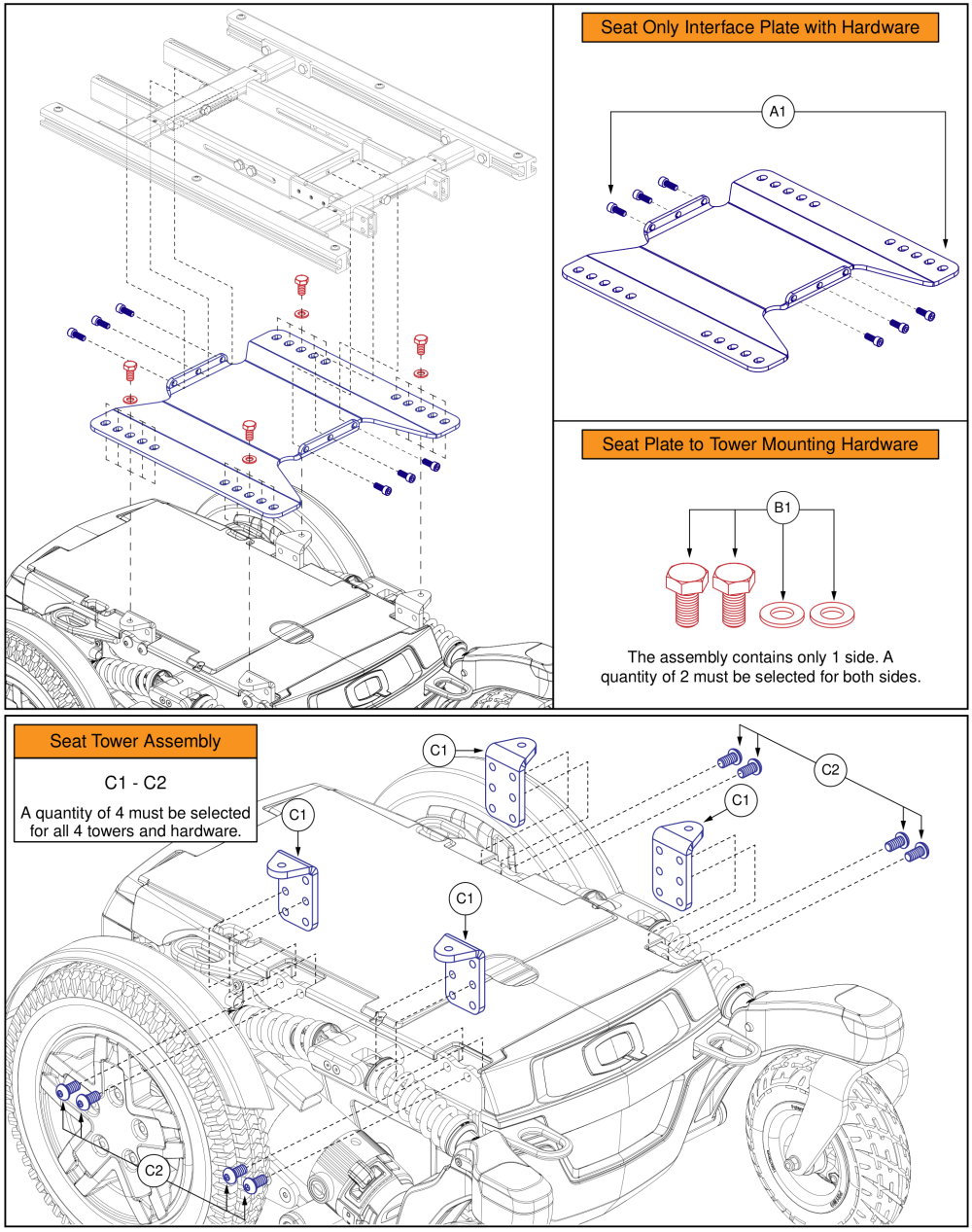

Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| A1 | SET142535 | SEAT PLATE, ASSY, SEAT ONLY, ISO, TRU-BALANCE 3 |
$146.00
|
EA |
|
|
| B1 | HDW136696 | HARDWARE, ASSY, FIXED, SEAT ONLY, TRU-BALANCE 3 |
$18.40
|
EA |
|
|
| C1 - C2 | MEC1700465 | SEAT INTERFACE, ASSY, TB3, QUANTUM 4FRONT, W/MOUNTING HARDWARE |
$16.30
|
EA |
|
|
| C1 | BRK8110003 | MOUNTING BRACKET, SEAT INTERFACE, UNIVERSAL, BRK8110003 |
$17.30
|
EA |
|
|
| C2 | HDW1700456 | SCREW, BUTTON HEAD, M10X1.5 X 20, ISO 7380-1, CL 10.9, BZ, PVTP |
$3.20
|
EA |
|
