R-trak - Jg7

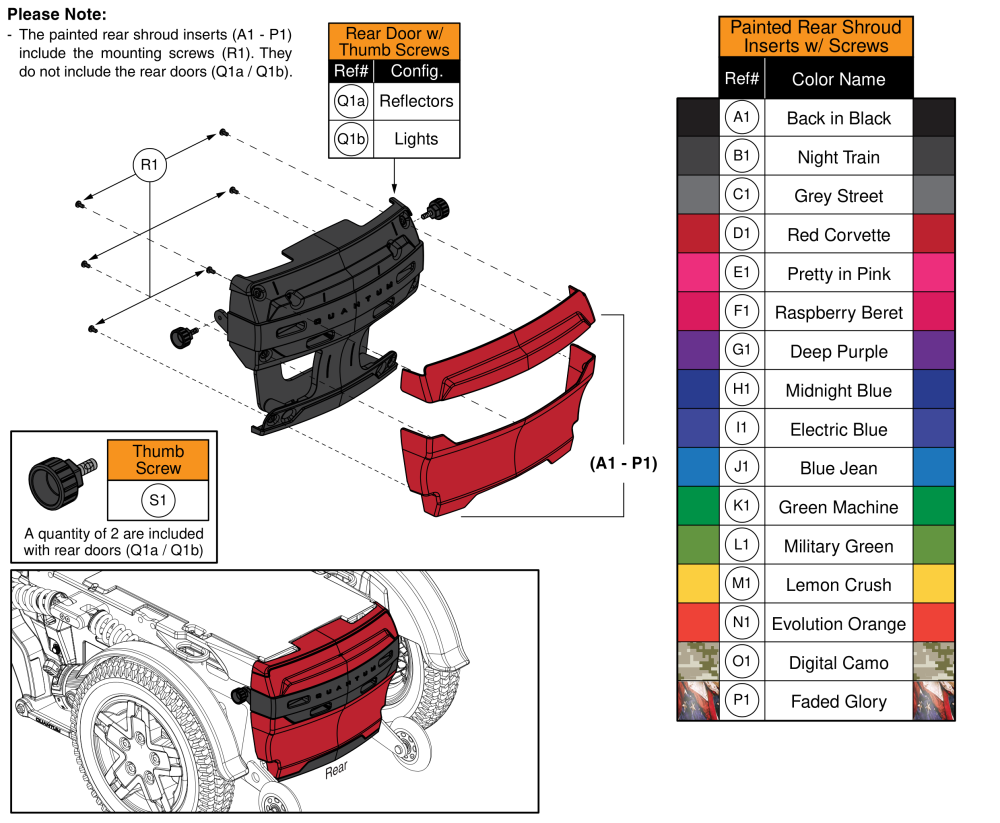

Name: R-TRAK - JG7: Rear Door Shroud And Painted Inserts, R-trak
Manufacturer: Pride Mobility
(Click on image to enlarge)
Manufacturer: Pride Mobility
Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| A1 | DGN2302367-PBK1 | SHROUD SERVICE ASSEMBLY, REAR, R-TRAK, BACK IN BLACK (PPW-BLK-01) | N/A | EA | Please Call | |
| B1 | DGN2302367-PBK3 | SHROUD SERVICE ASSEMBLY, REAR, R-TRAK, NIGHT TRAIN (PPW-BLK-03) | N/A | EA | Please Call | |
| C1 | DGN2302367-PSL3 | SHROUD SERVICE ASSEMBLY, REAR, R-TRAK, GREY STREET (PPW-SIL-03) | N/A | EA | Please Call | |
| D1 | DGN2302367-PRD1 | SHROUD SERVICE ASSEMBLY, REAR, R-TRAK, RED CORVETTE (PPW-RED-01) | N/A | EA | Please Call | |
| E1 | DGN2302367-PPK3 | SHROUD SERVICE ASSEMBLY, REAR, R-TRAK, PRETTY IN PINK (PPW-PNK-03) | N/A | EA | Please Call | |
| F1 | DGN2302367-PPK4 | SHROUD SERVICE ASSEMBLY, REAR, R-TRAK, RASPBERRY BERET (PPW-PNK-04) | N/A | EA | Please Call | |
| G1 | DGN2302367-PPR5 | SHROUD SERVICE ASSEMBLY, REAR, R-TRAK, DEEP PURPLE (PPW-PRP-05) | N/A | EA | Please Call | |
| H1 | DGN2302367-PBU10 | SHROUD SERVICE ASSEMBLY, REAR, R-TRAK, MIDNIGHT BLUE (PPW-BLU-10) | N/A | EA | Please Call | |
| I1 | DGN2302367-PBU9 | SHROUD SERVICE ASSEMBLY, REAR, R-TRAK, ELECTRIC BLUE (PPW-BLU-09) | N/A | EA | Please Call | |
| J1 | DGN2302367-PBU11 | SHROUD SERVICE ASSEMBLY, REAR, R-TRAK, BLUE JEAN (PPW-BLU-11) | N/A | EA | Please Call | |
| K1 | DGN2302367-PGN11 | SHROUD SERVICE ASSEMBLY, REAR, R-TRAK, GREEN MACHINE (PPW-GRN-11) | N/A | EA | Please Call | |
| L1 | DGN2302367-PGN8 | SHROUD SERVICE ASSEMBLY, REAR, R-TRAK, MILITARY GREEN (PPW-GRN-08) | N/A | EA | Please Call | |
| M1 | DGN2302367-PYL4 | SHROUD SERVICE ASSEMBLY, REAR, R-TRAK, LEMON CRUSH (PPW-YEL-04) | N/A | EA | Please Call | |
| N1 | DGN2302367-POR7 | SHROUD SERVICE ASSEMBLY, REAR, R-TRAK, EVOLUTION ORANGE (PPW-ORN-07) | N/A | EA | Please Call | |
| O1 | DGN2302367-WCM7 | SHROUD SERVICE ASSEMBLY, REAR, R-TRAK, MILITARY DIGITAL CAMO (PWT-CMO-07) | N/A | EA | Please Call | |
| P1 | DGN2302367-WFL2 | SHROUD SERVICE ASSEMBLY, REAR, R-TRAK, FADED GLORY (PWT-FLG-02) | N/A | EA | Please Call | |
| Q1a | DGN2106068 | SHROUD, ASSY, REAR BATTERY DOOR W/REFLECTORS, R-TRAK | N/A | EA | Please Call | |
| Q1b | DGN2106069 | SHROUD, ASSY, REAR BATTERY DOOR W/LIGHTS, R-TRAK | N/A | EA | Please Call | |
| R1 | SCRPPH1036 | SCREW, PAN HEAD, TYPE H, M4X0.7 X 8, FT, ISO 7045, CL 4.8, BZ |
$3.20
|
EA |
|
|
| S1 | MEC2104782 | THUMB SCREW, M6X1.0, 16MM, PVTP | N/A | EA | Please Call |
