Tru Balance® Bariatric Tilt Seating & Electronics

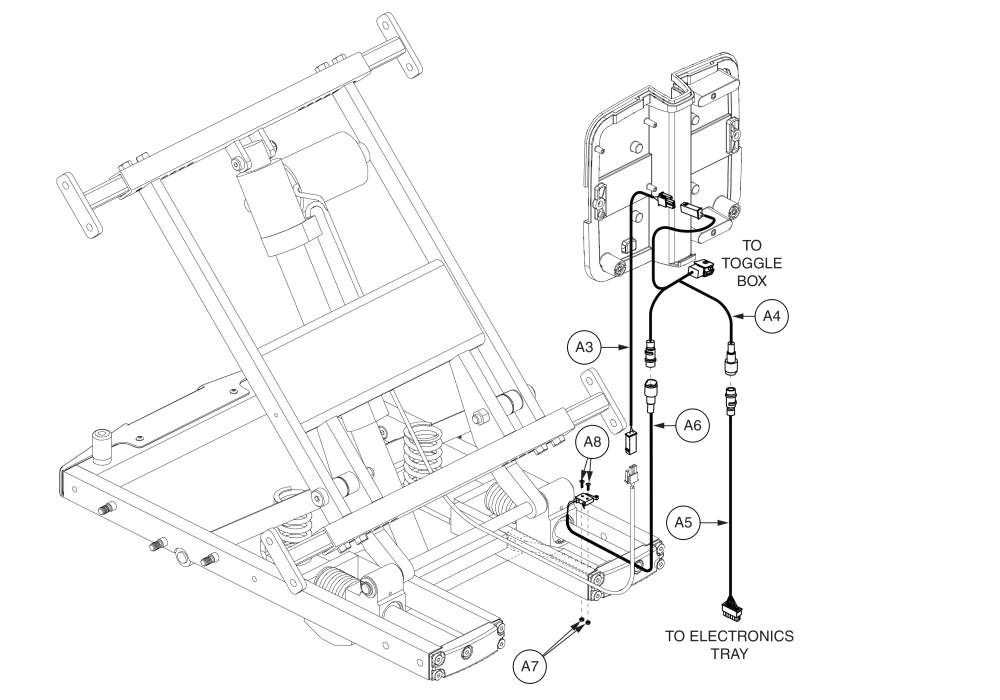

Name: TRU Balance® Bariatric Tilt Seating & Electronics: Ne Tilt Thru Toggle Electronics, Bariatric Tilt
Manufacturer: Pride Mobility
(Click on image to enlarge)
Manufacturer: Pride Mobility
Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| A1 - A8 | ELEASMB7093 | ELECTRONIC, ASSY, NE, THRU HIGH POWER TOGGLE |
$229.90
|
EA |
|
|
| A1 | PLSTIE1004 | TIEDOWN STRAP, 200 LG, PLASTIC, BLACK, SPEC NO. 2106329-2-50-175-V2 |
$3.20
|
EA |
|
|
| A2 |
$308.00
|
EA |
|
|||
| A3 | DWR1265H028 | ELECTRONIC, HARNESS, TAPE SWITCH RELAY BY-PASS, TRU-BALANCE 2 POWER TILT, H-1265-028 |
$15.70
|
EA |
|
|
| A4 | DWR1265H052 | ELECTRONIC, HARNESS, TILT THROUGH TOGGLE, NE, H-1265-052 |
$66.00
|
EA |
|
|
| A5 | DWR1265H057 | ELECTRONIC, HARNESS, PTO ONLY, NE, H-1265-057 |
$56.30
|
EA |
|
|
| A6 | DWR1265H039 | HARNESS, MICROSWITCH INHIBIT, TILT |
$69.90
|
EA |
|
|
| A7 | NUTNYLK1106 | NUT, NYLOCK, BLACK ZINC, 2-56, GRADE 2 |
$3.20
|
EA |
|
|
| A8 | SCRPFH1076 | SCREW, PFH, STAINLESS STEEL, 2-56 X 0.50" |
$3.20
|
EA |
|
