Tru Balance® Bariatric Tilt Seating & Electronics
Name: TRU Balance® Bariatric Tilt Seating & Electronics: Mesomorph Back Cane Bracket - 2" Out For Transit Units, Bariatric Tilt
Manufacturer: Pride Mobility
(Click on image to enlarge)
Manufacturer: Pride Mobility

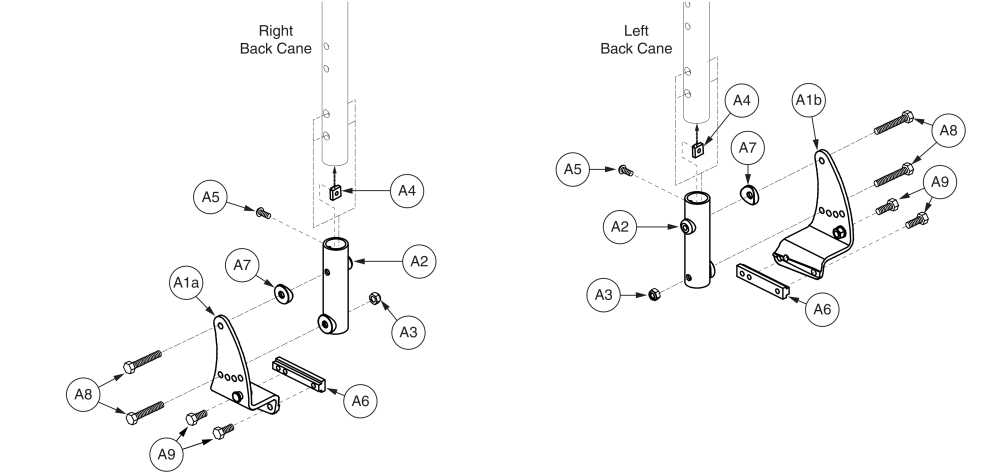

Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| A1 - A9 |
$308.00
|
EA |
|
|||
| A1a - A9 |
$308.00
|
EA |
|
|||
| A1b - A9 |
$308.00
|
EA |
|
|||
| A1a |
$308.00
|
EA |
|
|||
| A1b |
$308.00
|
EA |
|
|||
| A2 | DWR1360C154 | BACK CANE SUPPORT TUBE WELDMENT, C-1360-154 | N/A | EA | Please Call | |
| A3 | NUTNYLK1026 | NUT, LOCK, .3125-18, ASME B18.16.6, GR NE2, BZ, PVTP |
$3.50
|
EA |
|
|
| A4 | DWR1360A002 | T-NUT, .25-20 X 0.563 INCH (DWG: A1360-002) |
$3.80
|
EA |
|
|
| A5 | SCRASBH1096 | SCREW, BUTTON HEAD, .250-20 X .625, ASTM F835, BZ, PVTP |
$3.50
|
EA |
|
|
| A6 | DWR1005C029 | T-NUT, BLACK, 5/16-18 X 3.25", 3 HOLE, C-1005-029 |
$7.50
|
EA |
|
|
| A7 | DWR1005B112 | WASHER, COPED, BLACK, NYLON, 0.333" ID X 1.00" OD, B-1005-112 |
$3.50
|
EA |
|
|
| A8 | SCRHHCS1585 | SCREW, HEX HEAD, .3125-18 X 2, SAE J429, GR 8, BZ, PVTP (DWG: B1005-214) |
$3.20
|
EA |
|
|
| A9 | SCRHHCS1240 | SCREW, HEX HEAD, .3125-18 X 0.875, SAE J429, GR 8, BZ, PVTP |
$3.60
|
EA |
|
