Breezy Ec (easy Care) 2000 / 2000hd / 3000 / 4000 / Transport
Name: Breezy EC (Easy Care) 2000 / 2000HD / 3000 / 4000 / Transport: 2000hd (22"-24" Wide) Caster Fork Assm
Manufacturer: Sunrise Medical
(Click on image to enlarge)
Manufacturer: Sunrise Medical

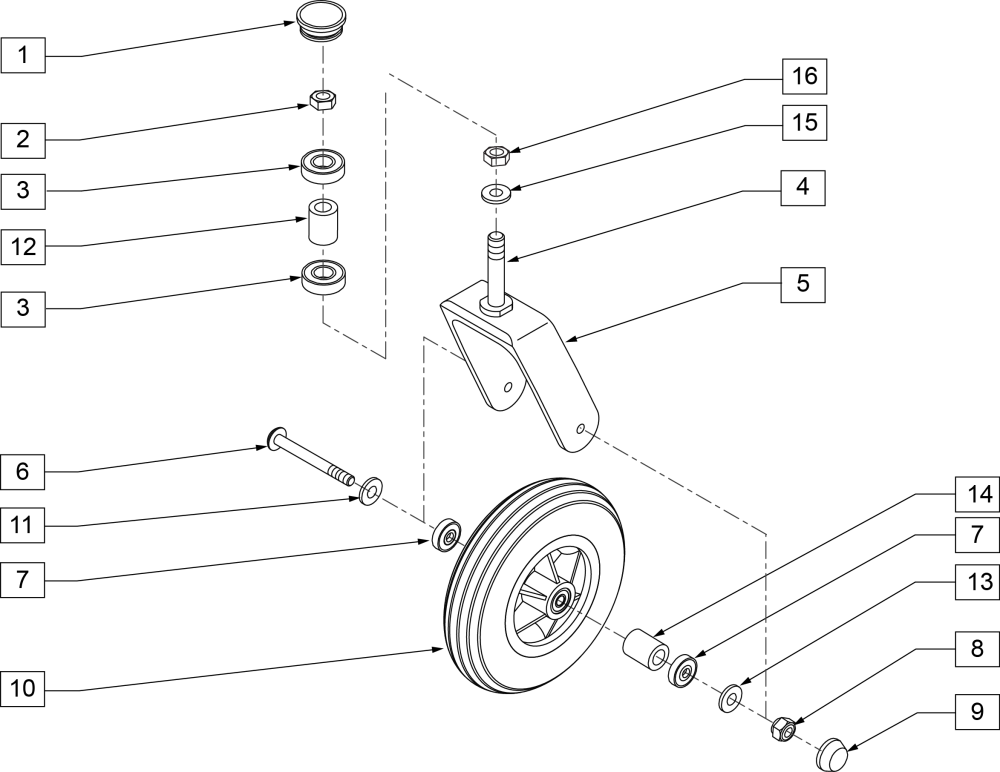

Part Picture
(Click on image to enlarge)
NOTE: ITEM 10 MEASURES 8" X 1.83".
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1 | GEY-CASC | CASTER HOUSING CAPS- 20 Per Bag | 20 Per Bag | $37.00 | EA | |
| 2 | N/A | CASTER STEM LOCK NUT- M8 X 1.25 LOCKING NUT | M8 X 1.25 LOCKING NUT | N/A | EA | Please Call |
| 3, 12 | GEY-CASTJR | CAST JOURNAL BEAR & SLEEVE- PAIR INCLUDES 4 BEARINGS AND 2 SLEEVES | PAIR INCLUDES 4 BEARINGS AND 2 SLEEVES | N/A | EA | Please Call |
| 6 - 8 | GEY-CASTBR | CASTER BEARINGS- INCLUDES 2 NUTS, 2 BOLTS, 2 SPACERS, 4 BEARINGS; BEARING SIZE=28mm X 12mm X 8mm | INCLUDES 2 NUTS, 2 BOLTS, 2 SPACERS, 4 BEARINGS; BEARING SIZE=28mm X 12mm X 8mm | $43.00 | EA | |
| 9 | N/A | CASTER TIR BOLT CAP- ONLY AVAILABLE IN COMPLETE FORK ASSEMBLY | ONLY AVAILABLE IN COMPLETE FORK ASSEMBLY | N/A | EA | Please Call |
| 1 - 16 | GEY-2HDCA | CASTER ASSM- PAIR | PAIR | N/A | EA | Please Call |
