Name: Liberty: Liberty Folding Back Cross Brace
Manufacturer: Ki Mobility

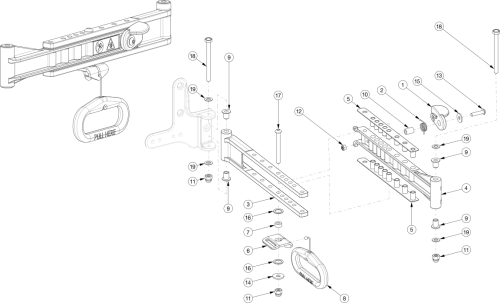

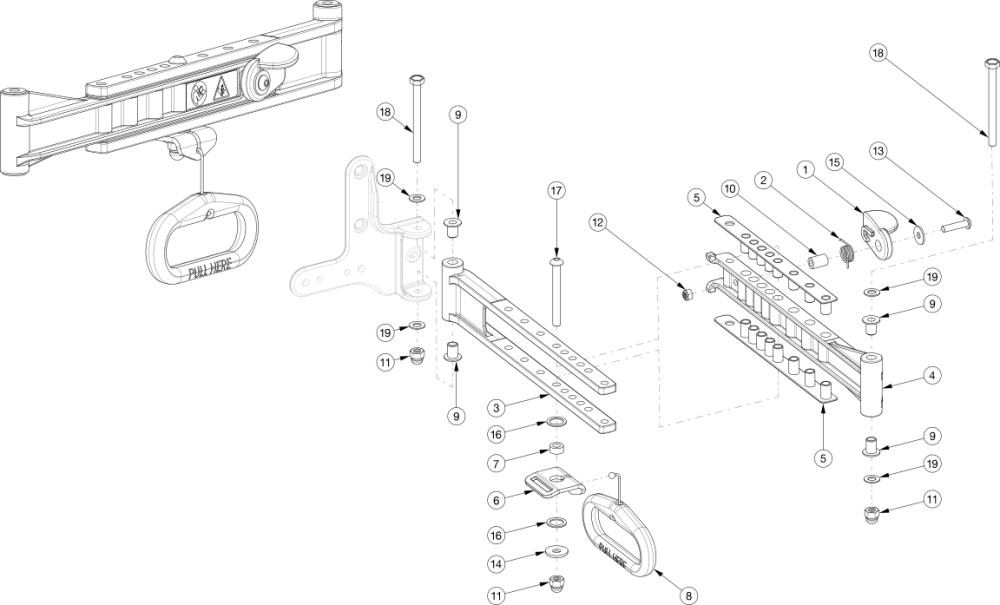

Liberty Folding Back Cross Brace parts diagram
(Click on image to enlarge)

For Non-Folding Cross Brace hardware for a Liberty Folding Frame, see Liberty Non-Folding Cross Brace page.
Pos. Part # Description Price UOM Buy
1, 2, 10, 12, 13, 15 506656 Fold Lever Assembly with Instruction
$7.18
EA
1, 2, 3a, 4a, 5 - 17 110083 Cross Brace Assembly, Back, Small, 14W with Instruction- Used on 14 - 15" wide with folding frame. Has the ability to achieve all small width range setttings (14 " - 18").
$146.03
EA
1, 2, 3a, 4a, 5 - 17 110084 Cross Brace Assembly, Back, Small, 16W with Instruction- Used on 16 - 18" wide with a small width range and folding frame
$141.76
EA
1, 2, 3b, 4b, 5 - 17 110085 Cross Brace Assembly, Back, Medium, 16W with Instruction- Used on 16 - 17" wide with medium width range and folding frame. Has the ability to achieve all medium width range settings (16" - 20").
$157.12
EA
1, 2, 3b, 4b, 5 - 17 110086 Cross Brace Assembly, Back, Medium, 18W with Instruction- Used on 18 - 20" wide with medium width range and folding frame
$152.54
EA
1, 2, 3c, 4c, 5 - 17 110087 Cross Brace Assembly, Back, Large, 18W with Instruction- Used on 18 - 19" wide with large width range and folding frame. Has the ability to achieve all large width range settings (18" - 22").
$181.06
EA
1, 2, 3c, 4c, 5 - 17 110088 Cross Brace Assembly, Back, Large, 20W with Instruction- Used on 20 - 22" wide with large width range and folding frame
$175.78
EA
1, 2, 3a, 4a, 5 - 19 506142 Cross Brace Kit, Back, Folding, Small
$164.31
EA
1, 2, 3b, 4b, 5 - 19 506143 Cross Brace Kit, Back, Folding, Medium
$177.70
EA
1, 2, 3c, 4c, 5 - 19 506144 Cross Brace Kit, Back, Folding, Large
$199.20
EA
3a, 4a, 5, 9, 18, 19 110095 Cross Brace Kit, Back, Non-Folding, Small
$164.31
EA
3b, 4b, 5, 9, 18, 19 110096 Cross Brace Kit, Back, Non-Folding, Medium
$177.70
EA
3c, 4c, 5, 9, 18, 19 110097 Cross Brace Kit, Back, Non-Folding, Large
$199.20
EA
3a, 4a, 5, 9 110089 Cross Brace Assembly, Back, Non-Folding, Small, 14W with Instruction- Used on 14 - 15" wide with non-folding frame. Has the ability to achieve all small width range setttings (14 " - 18"). Includes non-folding frame hardware.
$146.03
EA
3a, 4a, 5, 9 110090 Cross Brace Assembly, Back, Non-Folding, Small, 16W with Instruction- Used on 16 - 18" wide with a small width range and non-folding frame. Includes non-folding frame hardware.
$141.76
EA
3b, 4b, 5, 9 110091 Cross Brace Assembly, Back, Non-Folding, Medium, 16W with Instruction- Used on 16 - 17" wide with medium width range and non-folding frame. Has the ability to achieve all medium width range settings (16" - 20"). Includes non-folding frame hardware.
$157.12
EA
3b, 4b, 5, 9 110092 Cross Brace Assembly, Back, Non-Folding, Medium, 18W with Instruction- Used on 18 - 20" wide with medium width range and non-folding frame. Includes non-folding frame hardware.
$152.54
EA
3c, 4c, 5, 9 110093 Cross Brace Assembly, Back, Non-Folding, Large, 18W with Instruction- Used on 18 - 19" wide with large width range and non-folding frame. Has the ability to achieve all large width range settings (18" - 22"). Includes non-folding frame hardware.
$181.06
EA
3c, 4c, 5, 9 110094 Cross Brace Assembly, Back, Non-Folding, Large, 20W with Instruction- Used on 20 - 22" wide with large width range and non-folding frame. Includes non-folding frame hardware.
$175.78
EA
1 506655 Fold Lever with Instruction- Not included with Non-folding frame
$1.80
EA
2 003267 Spring, Latch- Not included with Non-folding frame
$0.97
EA
5 003326 Pivot Pad, Backrest
$2.44
6, 8 506313 Back Cross Brace Handle and Mount- Not included with Non-folding frame
$44.69
EA
7 003437 Spacer, .430ODx.242IDx.200L- Not included with Non-folding frame
$0.76
EA
8 003433 Handle Assembly, Liberty- Not included with Non-folding frame
$8.11
EA
9 003666 Bearing, Flg, 6mm ID x 12mm Lg
$2.68
10 003683 Spacer, .350ODx.201IDx.520L- Not included with Non-folding frame
$1.48
EA
11 100558 M6 NYL INS Domed Cap L/N ZC- Not included with Non-folding frame
$1.17
EA
12 100657 M5 Nylock Nut Blk Zn- Not included with Non-folding frame
$0.60
EA
13 101117 M5 x 22 BTN SHCS BLK ZC- Not included with Non-folding frame
$1.77
EA
14 101853 M6 Washer Blk Zn- Not included with Non-folding frame
$0.60
EA
15 103022 M5 Washer, Blk Zn- Not included with Non-folding frame
$0.60
EA
16 103024 Washer, Nylon, .428IDx.625ODx.031T- Not included with Non-folding frame
$0.60
17 103141 M6 x 55 BHCS, Shldr, BLK Zn- Not included with Non-folding frame
$2.36
EA
18 103028 M6 x 70 HHCS, Shldr, Blk Zn
$2.94
19 102803 Washer Flat .250 x .500 x .027 HX BLZ
$1.77
EA
