Name: Liberty: Liberty Side Frame
Manufacturer: Ki Mobility

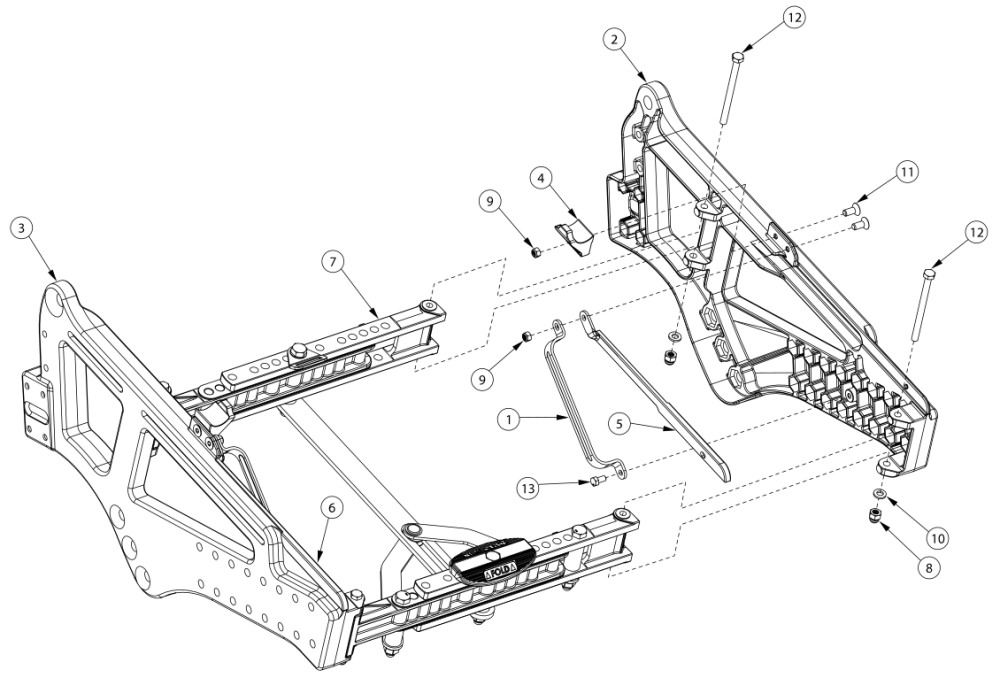

Liberty Side Frame parts diagram
(Click on image to enlarge)

Color Codes
Attachments:
Pos. Part # Description Price UOM Buy
1 003248 Retainer, Gas Spring
$11.43
2, 5 506593_ _ _ Side Frame, Right, Liberty N/A EA Please Call
3, 6 506594_ _ _ Side Frame, Left, Liberty N/A EA Please Call
4 003269 Bumper, Seat Frame
$1.30
5 506591 Inner Frame Cover Right, Liberty- Includes installation instructions
$2.68
EA
6 506592 Inner Frame Cover Left, Liberty- Includes installation instructions
$2.68
EA
7a 110071 Cross Brace Assembly, Base, Small, 14W with Instruction- Achieves all small width range settings 14" - 18" with folding frame. For complete breakdown of parts included, see Liberty FT Base Frame Cross Brace page.
$329.52
EA
7b 110073 Cross Brace Assembly, Base, Medium, 16W with Instruction- Achieves all medium width range settings 16" - 20" with folding frame. For complete breakdown of parts included, see Liberty FT Base Frame Cross Brace page.
$355.02
EA
7c 110075 Cross Brace Assembly, Base, Large, 18W with Instruction- Achieves all large width range settings 18" - 22" with folding frame. For complete breakdown of parts included, see Liberty FT Base Frame Cross Brace page.
$386.86
EA
7d 110077 Cross Brace Assembly Non-Folding, Base, Small, 14W with Instruction- Achieves all small width range settings 14" - 18" with non-folding frame. For complete breakdown of parts included, see Liberty FT Base Frame Cross Brace page and Liberty FT Non-Folding Cross Brace page.
$329.52
EA
7e 110079 Cross Brace Assembly Non-Folding, Base, Medium, 16W with Instruction- Achieves all medium width range settings 16" - 20" with non-folding frame. For complete breakdown of parts included, see Liberty FT Base Frame Cross Brace page and Liberty FT Non-Folding Cross Brace page.
$355.02
EA
7f 110081 Cross Brace Assembly Non-Folding, Base, Large, 18W with Instruction- Achieves all large width range settings 18" - 22" with non-folding frame. For complete breakdown of parts included, see Liberty FT Base Frame Cross Brace page and Liberty FT Non-Folding Cross Brace page.
$386.86
EA
8a 100558 M6 NYL INS Domed Cap L/N ZC- Use quantity 4 if Transit Wheels are not present. Use quantity 2 if Transit Wheels are present.
$1.17
EA
8b 100658 M6 Nylock Nut Blk Zn- Use quantity 2 if Transit Wheels are present.
$1.17
EA
9 100657 M5 Nylock Nut Blk Zn
$0.60
EA
10a 100746 M6 Flat Washer Blk Zn- Use quantity 4 if Transit Wheels are not present. Use quantity 2 if Transit Wheels are present.
$1.77
EA
10b 102072 Washer Nylon .234 ID x .406 OD x .062 Thick- Use quantity 2 if Transit Wheels are present.
$0.60
EA
11 102937 M5 X 14 FHCS, Blk Zn
$1.77
12a 103027 M6 x 80 HHCS, Partial Thread, Blk Zn- Use quantity 4 if Transit Wheels are not present. Use quantity 2 if Transit Wheels are present
$2.36
EA
12b 100704 M6 x 90 CLS8.8 DIN931 HHCS ZC- Use quantity 2 if Transit Wheels are present
$1.77
EA
13 200427 M5 x 10 CLS8.8 HHCS ZC w/Patch DIN933
$0.60
EA
