Name: Liberty: Liberty Tilt Mechanism
Manufacturer: Ki Mobility

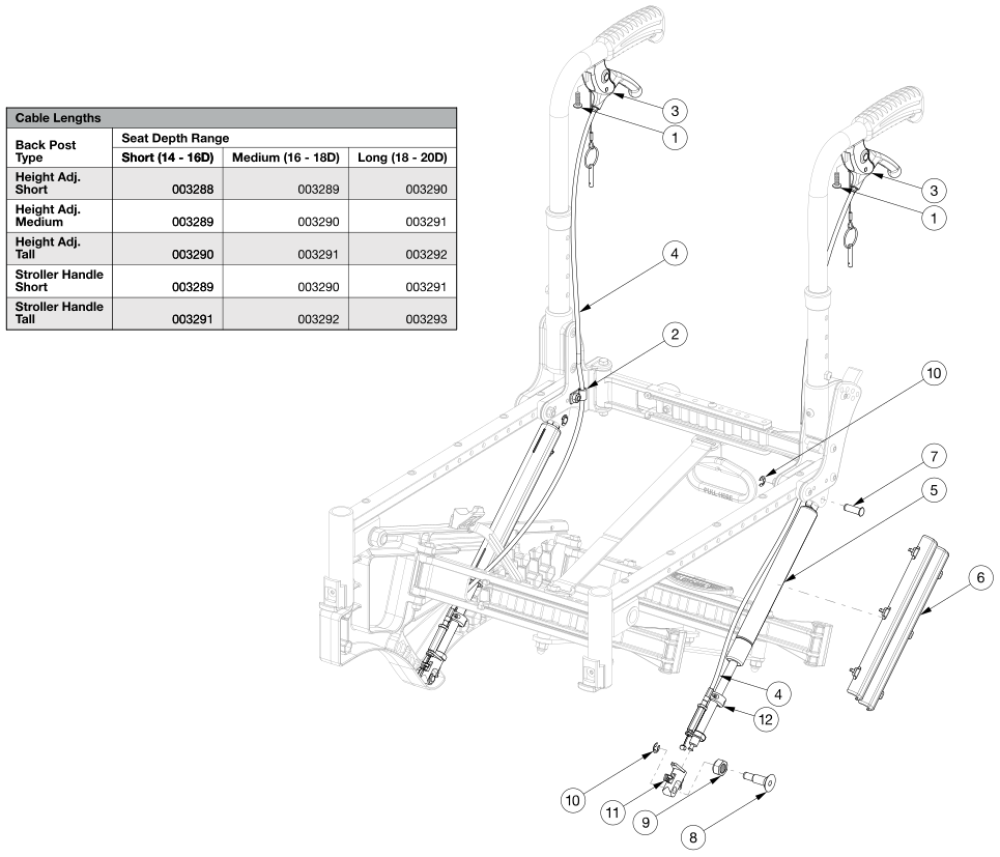

Liberty Tilt Mechanism parts diagram
(Click on image to enlarge)

If changing to a new back post style or height, a new tilt cable may be required If Drum Brake is present, see Liberty Drum Brake page
Attachments:
Pos. Part # Description Price UOM Buy
1 - 3, 4a 506801 Cable/Trigger Kit with Short Cable, Liberty
$115.60
EA
1 - 3, 4b 506802 Cable/Trigger Kit with Medium Cable, Liberty
$115.60
EA
1 - 3, 4c 506803 Cable/Trigger Kit with Long Cable, Liberty
$115.60
EA
1 - 3, 4d 506804 Cable/Trigger Kit with XL Cable, Liberty
$115.60
EA
1 - 3, 4e 506805 Cable/Trigger Kit with XXL Cable, Liberty
$115.60
EA
1 - 3, 4f 506806 Cable/Trigger Kit with XXXL Cable, Liberty
$115.60
EA
5a, 6 - 11 506150 Gas Spring Kit, 450N, Liberty
$173.52
EA
5b, 6 - 11 506149 Gas Spring Kit, 300N, Liberty
$173.52
EA
1 100734 M5 x 16 PHMS ZC
$1.77
EA
2 001239 P-Clip 3/16"
$7.06
EA
3 003285 Lever Assembly, Angle 135°
$27.93
EA
4a 003288 Cable, Tilt, Short
$82.32
4b 003289 Cable, Tilt, Medium
$82.32
4c 003290 Cable, Tilt, Long
$82.32
4d 003291 Cable, Tilt, XL
$82.32
4e 003292 Cable, Tilt, XXL
$82.32
4f 003293 Cable, Tilt, XXXL
$82.32
5a, 6, 11 506508 Gas Spring, 95mm Stroke, 450N with Cover, Liberty- Used on Widths 18" and greater (Default Setting)
$167.00
EA
5b, 6, 11 506509 Gas Spring, 95mm Stroke, 300N with Cover, Liberty- Used on Widths less than 18" (Default Setting)
$167.00
EA
7 003282 Clevis Pin, 8mm x .830Lg
$1.19
EA
8 003283 Gas Spring Mount Screw
$1.80
EA
9 101840 M10 Nylock Nut Blk Zn
$1.17
EA
10 102335 E-Ring 5/16" SS
$1.17
EA
11 111877 Gas Strut Lug, Liberty- Includes replacement instructions
$25.12
EA
12 102904 Tilt Stop Flip / Liberty / Arc
$31.98
EA
