Name: Rogue: Rogue Backrest Mount And Hardware
Manufacturer: Ki Mobility

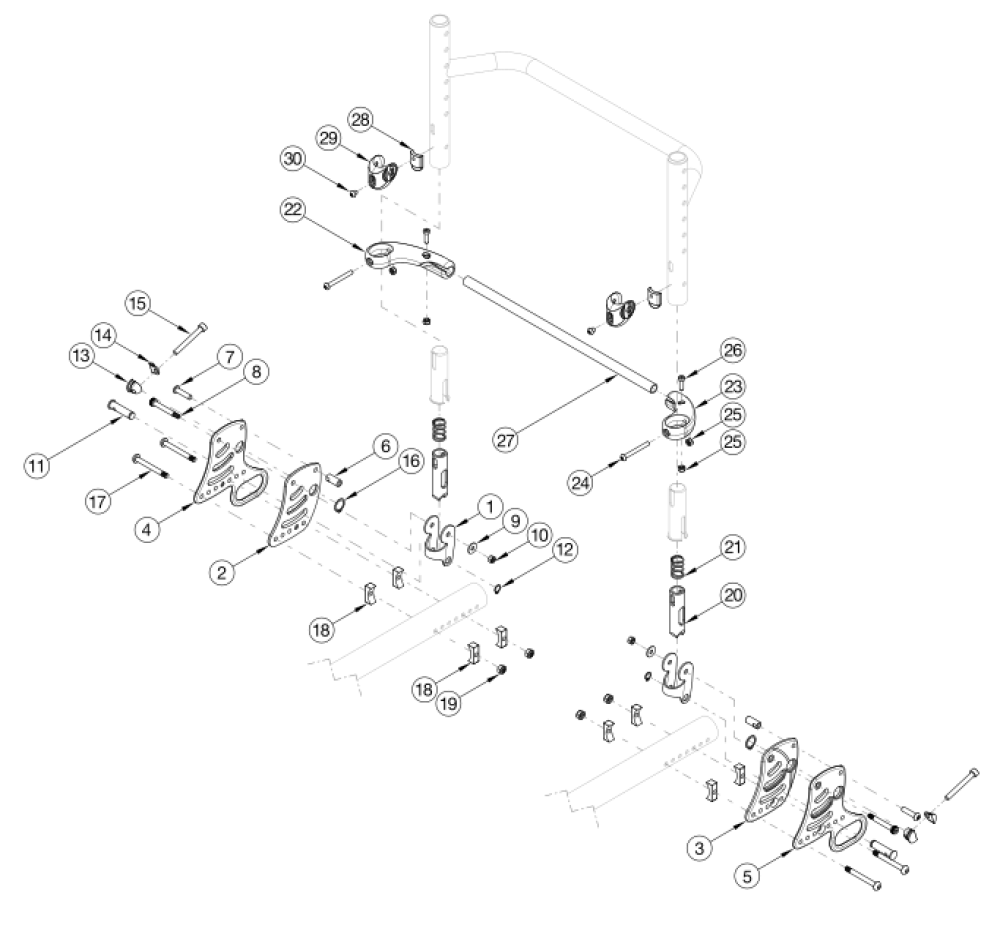

Rogue Backrest Mount And Hardware parts diagram
(Click on image to enlarge)

This is a new part called: Rigid Locking Fold Down Back. If invoice doesn't state this option, a complete retrofit is needed. For a complete retrofit, select a Back Plate and Hardware Kit PAIR and Backrest Actuation Bar SUBASSEMBLY kit based on width. If retrofitting to this backrest style, new back frames and backrest tubes are required. If retrofitting and swing away arms are present, new receivers and armrests are needed.
Pos. Part # Description Price UOM Buy
1 - 3, 6 - 21, 28 - 30 117288 Back Plate and Hardware, Non-Transit, Black, Rogue, PAIR
$519.40
EA
1, 2, 6 - 19 116894 Back Plate and Hardware, Non-Transit, Black, Right, Rogue
$222.49
EA
1, 3, 6 - 19 116895 Back Plate and Hardware, Non-Transit, Black, Left, Rogue
$222.49
EA
1 - 3, 6 - 21, 28 - 30 117290_ _ _ Back Plate and Hardware, Non-Transit, Color Anodized, Rogue, PAIR N/A EA Please Call
1, 2, 6 - 19 116916_ _ _ Back Plate and Hardware, Non Transit, Color Anodized, Right, Rogue N/A EA Please Call
1, 3, 6 - 19 116917_ _ _ Back Plate and Hardware, Non Transit, Color Anodized, Left, Rogue N/A EA Please Call
1, 4 - 21, 28 - 30 117289 Back Plate and Hardware, Transit, Black, Rogue, PAIR
$557.48
EA
1, 4, 6 - 19 116896 Back Plate and Hardware, Transit, Black, Right, Rogue
$241.54
EA
1, 5 - 19 116897 Back Plate and Hardware, Transit, Black, Left, Rogue
$241.54
EA
28 - 30 116876 Relax Subassembly
$12.22
EA
22, 24 - 26 116877 Release Lever with Fasteners, Right
$21.24
EA
23 - 26 116878 Release Lever with Fasteners, Left
$21.24
EA
22 - 26, 27a 116879 Backrest Actuation Bar Subassembly w/ Release Levers and Fasteners, 12" Wide, Black
$65.05
EA
22 - 26, 27b 116880 Backrest Actuation Bar Subassembly w/ Release Levers and Fasteners, 13" Wide, Black
$65.42
EA
22 - 26, 27c 116881 Backrest Actuation Bar Subassembly w/ Release Levers and Fasteners, 14" Wide, Black
$69.13
EA
22 - 26, 27d 116882 Backrest Actuation Bar Subassembly w/ Release Levers and Fasteners, 15" Wide, Black
$69.86
EA
22 - 26, 27e 116883 Backrest Actuation Bar Subassembly w/ Release Levers and Fasteners, 16" Wide, Black
$70.61
EA
22 - 26, 27f 116884 Backrest Actuation Bar Subassembly w/ Release Levers and Fasteners, 17" Wide, Black
$71.72
EA
22 - 26, 27g 116885 Backrest Actuation Bar Subassembly w/ Release Levers and Fasteners, 18" Wide, Black
$73.93
EA
22 - 26, 27h 116886 Backrest Actuation Bar Subassembly w/ Release Levers and Fasteners, 19" Wide, Black
$75.05
EA
22 - 26, 27i 116887 Backrest Actuation Bar Subassembly w/ Release Levers and Fasteners, 20" Wide, Black
$75.41
EA
4 115552 Back Plate, Transit, Right, Black
$82.91
EA
5 115553 Back Plate, Transit, Left, Black
$82.91
EA
6 115546 Strike, ร˜.364
$10.06
EA
7 115573 M6 x 25, BHCS, CLS 10.9, NYL, BLZ
$0.45
EA
8 103284 M6 x 35 Shoulder Bolt BZ
$5.30
EA
9 103022 M5 Washer, Blk Zn
$0.60
EA
10 103283 M5 Top Lock Nut BZ
$0.60
EA
12 115570 Eternal Retaining Ring, 3/8"
$0.41
EA
15 115545 M6 x 1.0 x 50 SHCS, FT, NYL, BLZ
$5.59
16 115571 Eternal Retaining Ring, 5/8"
$1.42
EA
17 003232 M6 x 55 BHCS Blk Zc
$10.01
EA
18 116329 Rigid Backrest Saddle, Narrow, 1.375"
$14.51
19 100658 M6 Nylock Nut Blk Zn
$1.17
EA
20 115539 Release Pin
$22.85
21 115547 Compression Spring, .66" OD x 1" LG
$2.45
24 000142 M5 x 45 BHCS, P/THD, BLZ
$2.28
EA
25 100657 M5 Nylock Nut Blk Zn
$0.60
EA
26 102801 M5 x 16, Low SHCS, Blk Zn
$1.77
EA
27a 115554 Backrest Actuation Bar, 12" Wide, Black
$22.58
EA
27b 115555 Backrest Actuation Bar, 13" Wide, Black
$22.96
EA
27c 115556 Backrest Actuation Bar, 14" Wide, Black
$26.65
EA
27d 115557 Backrest Actuation Bar, 15" Wide, Black
$27.39
EA
27e 115558 Backrest Actuation Bar, 16" Wide, Black
$28.13
EA
27f 115559 Backrest Actuation Bar, 17" Wide, Black
$29.24
EA
27g 115560 Backrest Actuation Bar, 18" Wide, Black
$31.46
EA
27h 115561 Backrest Actuation Bar, 19" Wide, Black
$32.58
EA
27i 115562 Backrest Actuation Bar, 20" Wide, Black
$32.94
EA
28 115549 Relax Bumper
$7.11
29 115548 Relax Saddle
$4.45
30 115572 M5 x 0.8 x 6 BHCS BLZ, CLS 10.9
$0.68
