Name: Rogue: Rogue Rigid Frame
Manufacturer: Ki Mobility

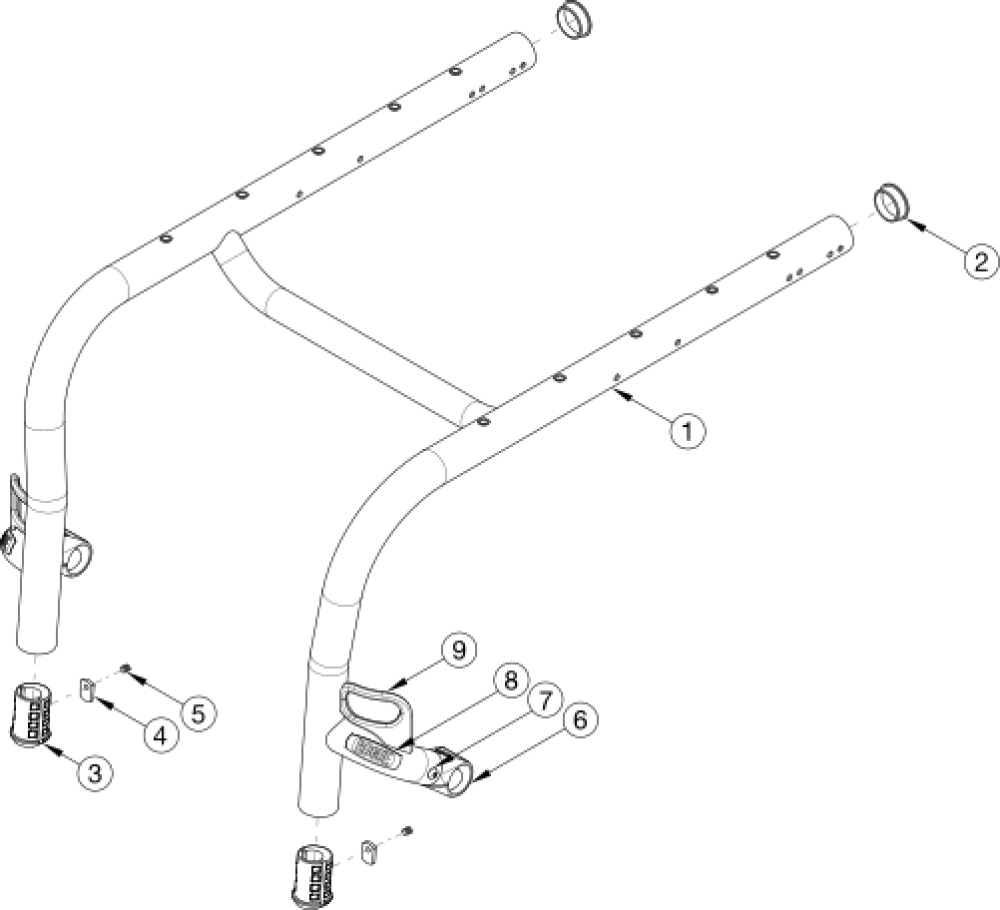

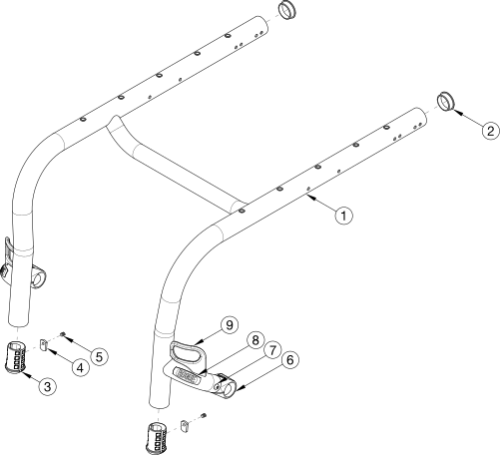

Rogue Rigid Frame parts diagram
(Click on image to enlarge)

Color Anodizing ReferenceReplacement rigid frames may be quoted, but must be ordered through Customer Service. Serial number required upon order. This design effective starting with serial number RG008800. Replacement Rogue Transit Frames will include front transit brackets only. To quote rear transit brackets, please see Rogue Transit page.
Attachments:
Pos. Part # Description Price UOM Buy
1a, 2 - 4a, 5, 6a, 7, 8 RFRG Replacement Rogue Frame
$994.46
EA
1b, 2 - 4a, 5, 6a, 7, 8, 9 RFRGTRANS Replacement Rogue Transit Frame
$1,265.05
EA
1c, 2 - 4a, 5, 6a, 7, 8 RFRGGIT Replacement Rogue Frame w/ Graphic Image Transfer
$1,673.79
EA
1d, 2 - 4a, 5, 6b, 7, 8 RFRGCOL Replacement Rogue Frame w/ Color Anodized Package
$1,025.85
EA
1e, 2 - 4a, 5, 6b, 7, 8, 9 RFRGTRANSCOL Replacement Rogue Transit Frame w/ Color Anodized Package
$1,296.44
EA
1f, 2 - 4a, 5, 6b, 7, 8 RFRGGITCOL Replacement Rogue Frame w/ Graphic Image Transfer and Color Anodized Package
$1,705.19
EA
2 101113 Tube End Plug 1 3/8"- Use quantity 4 with high-mounted footrests. Extra plugs are inserted into front of frame.
$3.53
EA
3 001346 Footrest Sleeve 3/4" to 1 3/8"- Used only with frame-inserted footrests. Use item 2 for high-mounted footrests.
$6.73
4a 001141 Weld Nut NDM 06028 Zinc- Used only with frame-inserted footrests. Use item 2 for high-mounted footrests.
$2.94
EA
4b 102092 M6 Weld Nut Offset- Used only as needed with frame-inserted footrests. Use item 2 for high-mounted footrests.
$3.53
EA
5 102090 M6 Set Screw Flat Point- Used only with frame-inserted footrests. Use item 2 for high-mounted footrests.
$2.94
EA
8 002473 Aluminum Wing Badge Rogue
$2.99
