Rogue Replacement Parts by Ki Mobility

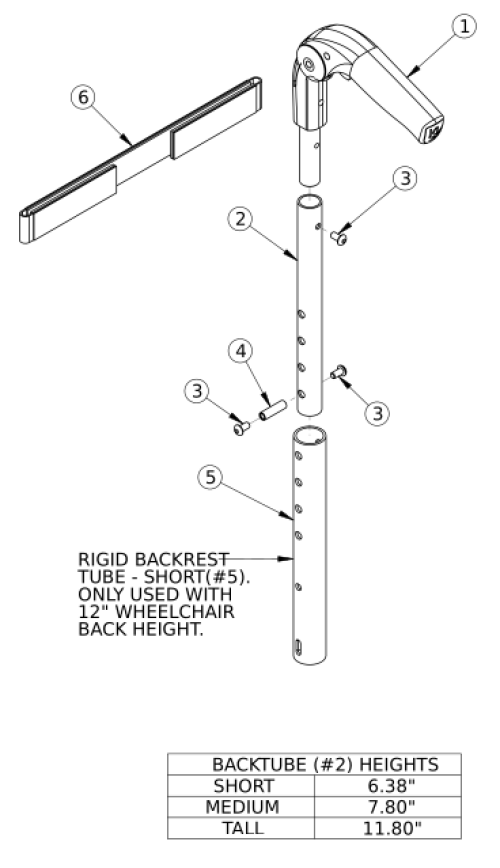

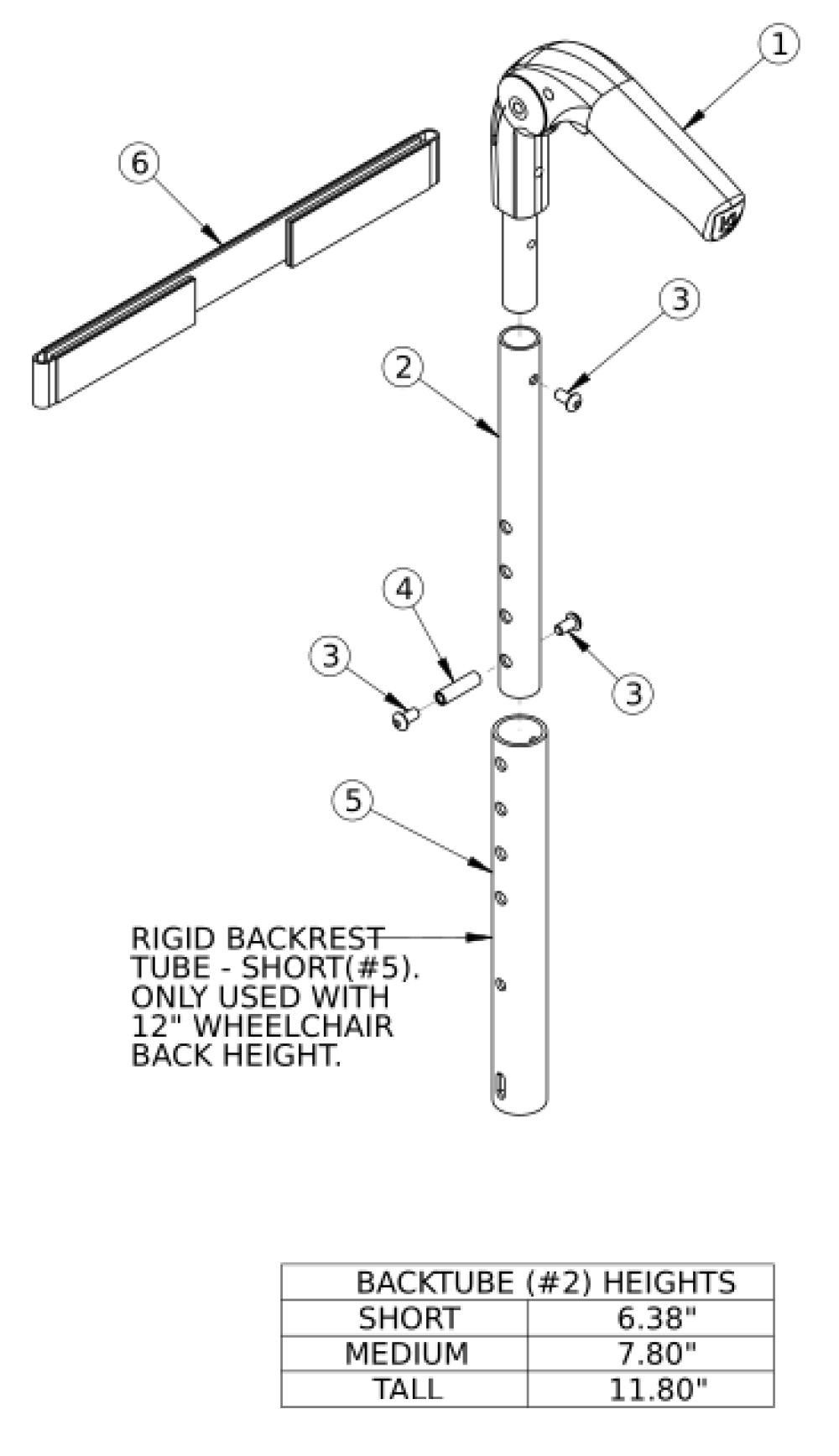

Name: Rogue: (discontinued 1) Rogue Fold Down Push Handle
Manufacturer: Ki Mobility

(Click on image to enlarge)

Pos.	Part #	Description	Remarks	Price	UOM
1, 2a, 3, 4, 5	502167	Fold Down Push Handle Assm 12" Back Height Rigid		$99.96	EA
1, 2a, 3, 4	501745	Fold Down Push Handle Assm Short Rigid		$99.96	EA
1, 2b, 3, 4	501746	Fold Down Push Handle Assm Medium Rigid		$99.96	EA
1, 2c, 3, 4	501747	Fold Down Push Handle Assm Tall Rigid		$99.96	EA
1	001735	Folding Handle Assembly Rigid- This is to replace an existing Fold Down Push Handle. If wanting to change to the Fold Down Push Handle, order one of the following complete assemblies based on the desired back height: 502167, 501745, 501746 or 501747	This is to replace an existing Fold Down Push Handle. If wanting to change to the Fold Down Push Handle, order one of the following complete assemblies based on the desired back height: 502167, 501745, 501746 or 501747	$52.92	EA
2a	001754	Fold Down Push Handle Tube, 6.38", Rigid		$52.92	EA
2b	001755	Fold Down Push Handle Tube, 7.8", Rigid		$52.92	EA
2c	001756	Fold Down Push Handle Tube, 11.8", Rigid		$52.92	EA
3	100669	M5 x 10 BTN SHCS BLKZC w/Patch		$1.77	EA
4	000073	M5 x 24 Threaded Barrel		$4.23	EA
5	002038	Rigid Backrest Tube Short- Only used with 12" back height	Only used with 12" back height	$29.10	EA
6a	001748	Tension Strap Folding Handle 9-11 Wide		$20.51	EA
6b	001749	Tension Strap Folding Handle 12-13 Wide		$21.86	EA
6c	001750	Tension Strap Folding Handle 14-15 Wide		$23.30	EA
6d	001751	Tension Strap Folding Handle 16-17 Wide		$24.60	EA
6e	001752	Tension Strap Folding Handle 18-19 Wide		$26.05	EA
6f	001753	Tension Strap Folding Handle 20-22 Wide		$27.38	EA
