Quickie Qs5 X

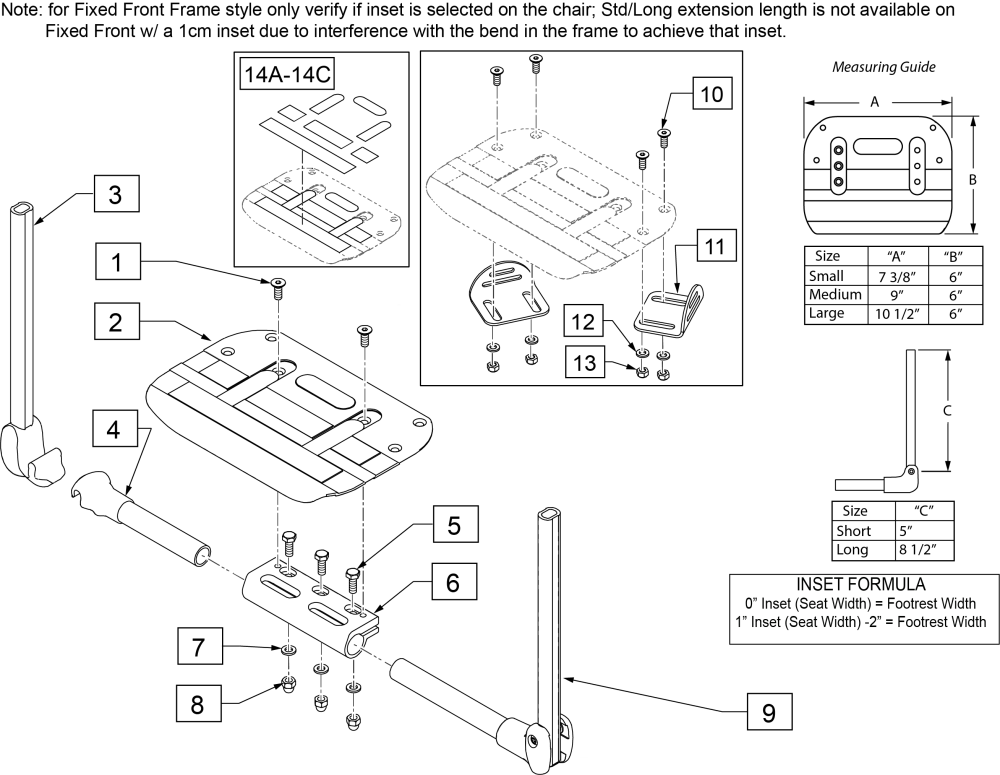

Name: Quickie Qs5 X: Platform Carbon Fiber Footplate
Manufacturer: Sunrise Medical
(Click on image to enlarge)
Manufacturer: Sunrise Medical
Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 5 - 8 | 06802227 | FOOTREST CLAMP |
$75.00
|
EA |
|
|
| 10 - 13 | 068890 | STOP BRACKET FOR FOOTBOARD |
$344.00
|
EA |
|
|
| 14A | 132004 | ANTISLIP STCKR CRBN FTPT S KIT- 11-12 | 11-12 | N/A | EA | Please Call |
| 14B | 132005 | ANTISLIP STCKR CRBN FTPT M KIT- 13-14 | 13-14 | N/A | EA | Please Call |
| 14C | 132006 | ANTISLIP STCKR CRBN FTPT L KIT- 15-20 | 15-20 | N/A | EA | Please Call |
| 1, 2, 14A | 162925 | PLTFRM CARB PLATE 32/34 CM- 11-12 | 11-12 |
$221.00
|
EA |
|
| 1, 2, 14B | 162926 | PLTFRM CARB PLATE 36/38 CM- 13-14 | 13-14 |
$258.00
|
EA |
|
| 1, 2, 14C | 162927 | PLTFRM CARB PLATE 40-50 CM- 15-20 | 15-20 |
$258.00
|
EA |
|
| 1 - 9 | 169937 | COMP PLATFORM FP 11W |
$350.00
|
EA |
|
|
| 1 - 9 | 169938 | COMP PLATFORM FP 12W |
$350.00
|
EA |
|
|
| 1 - 9 | 169939 | COMP PLATFORM FP 13W |
$350.00
|
EA |
|
|
| 1 - 9 | 169940 | COMP PLATFORM FP 14W |
$350.00
|
EA |
|
|
| 1 - 9 | 169941 | COMP PLATFORM FP 15W |
$350.00
|
EA |
|
|
| 1 - 9 | 169942 | COMP PLATFORM FP 16W |
$350.00
|
EA |
|
|
| 1 - 9 | 169943 | COMP PLATFORM FP 17W |
$350.00
|
EA |
|
|
| 1 - 9 | 169944 | COMP PLATFORM FP 18W |
$350.00
|
EA |
|
|
| 1 - 9 | 169945 | COMP PLATFORM FP 19-20W |
$350.00
|
EA |
|
