Quickie Qs5 X

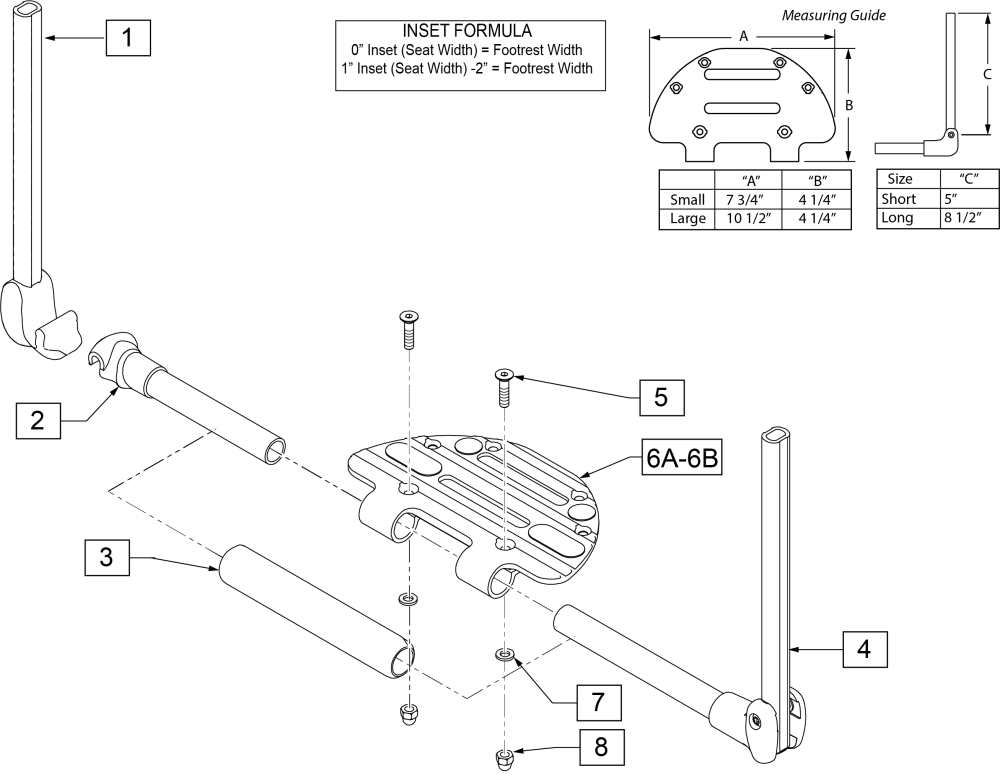

Name: Quickie Qs5 X: Platform Ultra Lite Footplate
Manufacturer: Sunrise Medical
(Click on image to enlarge)
Manufacturer: Sunrise Medical
Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 3, 5, 6A, 7, 8 | 162903 | ULTRA LITE FOOT PLT SML- Small 32-38 | Small 32-38 |
$115.00
|
EA |
|
| 3, 5, 6B, 7, 8 | 162904 | ULTRA LITE FOOT PLT LRG- Large 40-50 | Large 40-50 |
$143.00
|
EA |
|
| 3 | 066203-000 | TUBE FRONT COVER | N/A | EA | Please Call | |
| 5, 7, 8 | 169927 | PLTFRM ULTRA LT FP HDWR | N/A | EA | Please Call | |
| 1 - 5, 6A, 7, 8 | 169928 | UL LT PLATFORM FP 11 |
$200.00
|
EA |
|
|
| 1 - 5, 6A, 7, 8 | 169929 | UL LT PLATFORM FP 12 |
$200.00
|
EA |
|
|
| 1 - 5, 6A, 7, 8 | 169930 | UL LT PLATFORM FP 13 |
$200.00
|
EA |
|
|
| 1 - 5, 6A, 7, 8 | 169931 | UL LT PLATFORM FP 14 |
$200.00
|
EA |
|
|
| 1 - 5, 6A, 7, 8 | 169932 | UL LT PLATFORM FP 15 |
$200.00
|
EA |
|
|
| 1 - 5, 6A, 7, 8 | 169933 | UL LT PLATFORM FP 16 |
$200.00
|
EA |
|
|
| 1 - 5, 6A, 7, 8 | 169934 | UL LT PLATFORM FP 17 |
$200.00
|
EA |
|
|
| 1 - 5, 6A, 7, 8 | 169935 | UL LT PLATFORM FP 18 |
$200.00
|
EA |
|
|
| 1 - 5, 6A, 7, 8 | 169936 | UL LT PLATFORM FP 19-20 |
$200.00
|
EA |
|
