Loading...Focus CR

Focus Cr Rear Anti-tip

Name: Focus CR: Focus Cr Rear Anti-tip
Manufacturer: Ki Mobility

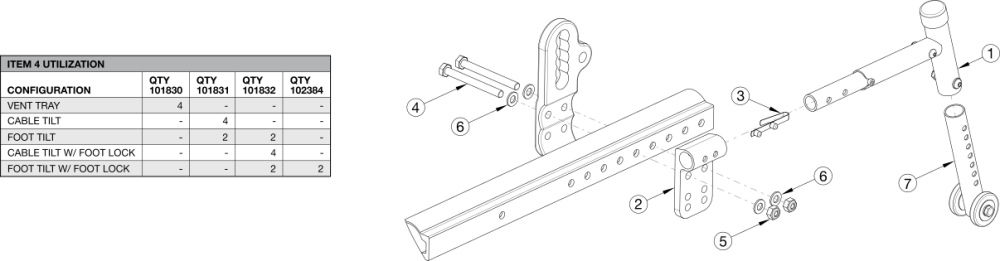

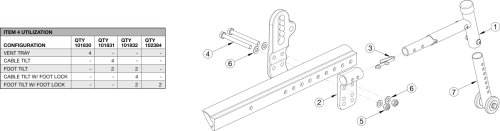

Focus Cr Rear Anti-tip parts diagram
(Click on image to enlarge)

*Anti-tip assemblies are based on rear wheel size *See Focus CR Vent and Battery Tray page if a Vent Tray is on the chair because different Anti-Tips are needed.
Pos.Part #DescriptionPriceBuy
1, 3, 7 - 10501483Anti-Tip Assembly 12-16" Each Tilt
$72.10
1, 3, 7 - 10501484Anti-Tip Assembly 20-22" Each Tilt
$72.10
1, 3, 7 - 10501485Anti-Tip Assembly 24" Each Tilt
$72.10
1, 3, 7 - 10501135Anti-Tip Assembly 12-16" Pair Focus
$144.20
1, 3, 7 - 10501136Anti-Tip Assembly 20-22" Pair Focus
$144.20
1, 3, 7 - 10501137Anti-Tip Assembly 24" Pair Focus
$144.20
2001413Receiver Anti-Tip Long Tilt
$25.75
3100533Detent Button
$3.52
4a101830M8 x 70 HHCS Blk Zn
$2.58
4b101831M8 x 80 HHCS Blk Zn
$5.67
4c101832M8 x 90 HHCS Blk Zn
$3.61
4d102384M8 x 100 HHCS BLK ZC PART THD
$3.61
5100659M8 Nylock Nut Blk Zn
$1.03
6101858Washer Flat M8 Blk Zn
$0.52
7100506Anti-Tip Tube Wheel
$3.83
8101826M6 x 50 HHCS Blk Zn
$2.06
9100658M6 Nylock Nut Blk Zn
$1.03
10100746M6 Flat Washer Blk Zn
$1.55
