Focus Cr
Name: Focus CR: Focus Cr Combination Attendant Foot Lock
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

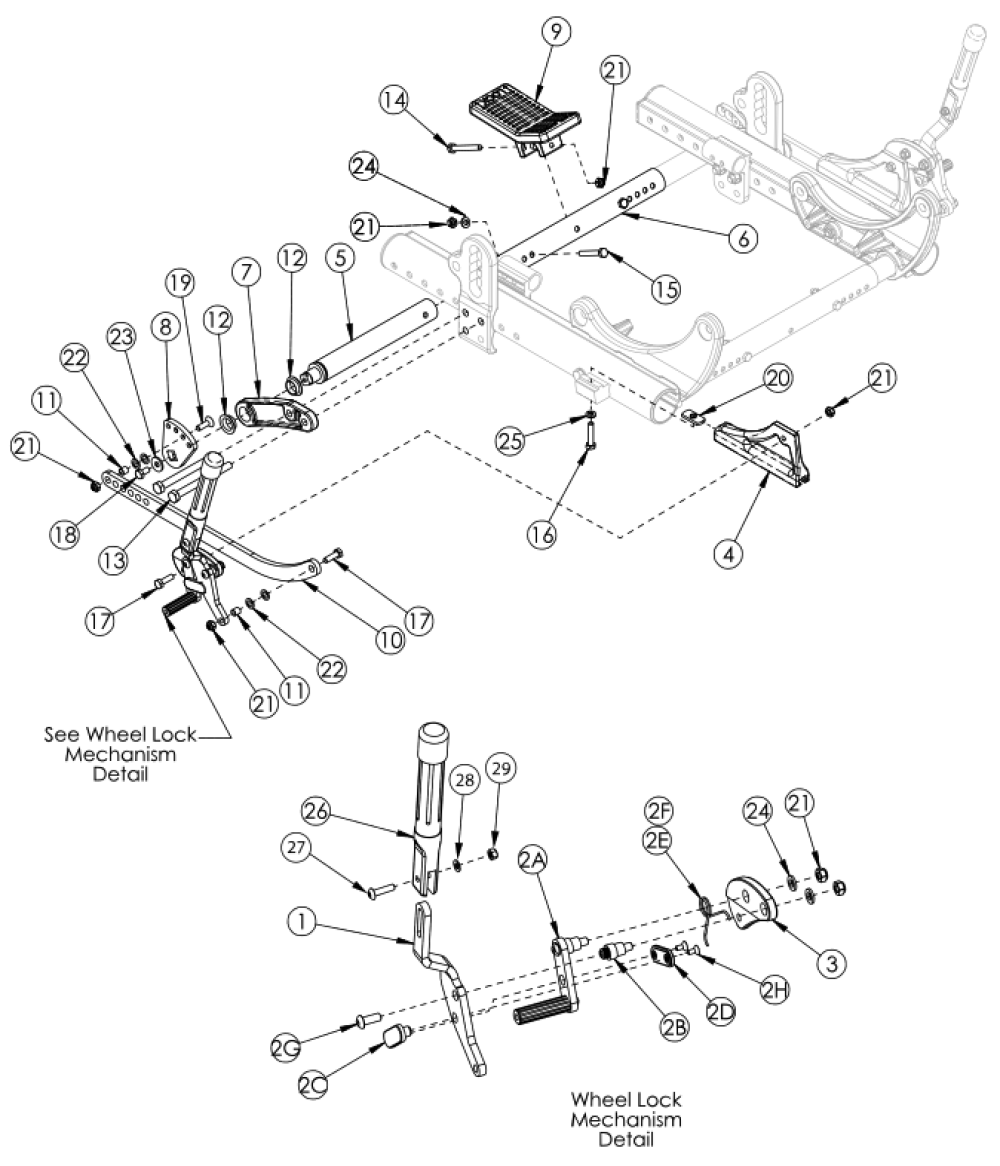

Part Picture
(Click on image to enlarge)
Standard vs Inverted Axle PlatesGrowth Struts based on Frame Width Range
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1a, 2a - 2h, 26 - 29 | 003393 | Combo Wheel Lock Assembly Push with Extension, Right |
$54.58
|
EA |
|
|
| 1b, 2a - 2h, 26 - 29 | 003394 | Combo Wheel Lock Assembly Push with Extension, Left |
$54.58
|
EA |
|
|
| 1a, 1b, 2a - 2h, 26 - 29 | 503737 | Combo Wheel lock Assembly Push with Extension PAIR- Use this kit to retrofit to the Combination Attendant Foot Lock when the Attendant Foot Lock is already present. Contains parts needed for push to lock. | Use this kit to retrofit to the Combination Attendant Foot Lock when the Attendant Foot Lock is already present. Contains parts needed for push to lock. |
$109.12
|
EA |
|
| 1 - 5, 7 - 9, 10, 11 - 14, 16 - 29 | 503738 | Combo Foot Lock Kit, 12-16" Wheel- Use this kit to retrofit to the Combination Attendant Foot Lock when the Attendant Foot Lock is not present. Contains parts needed for push to lock. In addition, please note the appropriate Base/Axle/Foot Lock Strut Assembly is required. | Use this kit to retrofit to the Combination Attendant Foot Lock when the Attendant Foot Lock is not present. Contains parts needed for push to lock. In addition, please note the appropriate Base/Axle/Foot Lock Strut Assembly is required. |
$681.02
|
EA |
|
| 6a, 15, 21, 24 | 501123 | Base/Axle/Foot Lock Strut Assembly Small Focus |
$27.74
|
EA |
|
|
| 6b, 15, 21, 24 | 501124 | Base/Axle/Foot Lock Strut Assembly Medium Focus |
$27.74
|
EA |
|
|
| 6c, 15, 21, 24 | 501125 | Base/Axle/Foot Lock Strut Assembly Large Focus |
$27.74
|
EA |
|
|
| 6d, 15, 21, 24 | 114284 | Base/Axle/Foot Lock Strut Assembly X-Large Focus |
$30.08
|
EA |
|
|
| 3 | 003771 | Foot Wheel Lock Mount Tilt- Replaced 001296 | Replaced 001296 |
$33.33
|
|
|
| 4a | 001138 | Plate Wheel Lock Right Tilt |
$18.27
|
EA |
|
|
| 4b | 001139 | Plate Wheel Lock Left Tilt |
$18.27
|
EA |
|
|
| 5 | 001145 | Strut Foot Lock Tilt |
$84.32
|
|
||
| 6a | 001011 | Growth Strut, Base, Small Tilt |
$21.18
|
EA |
|
|
| 6b | 001012 | Growth Strut, Base, Medium Tilt |
$21.18
|
EA |
|
|
| 6c | 001013 | Growth Strut, Base, Large Tilt |
$21.18
|
EA |
|
|
| 6d | 112005 | Growth Strut, Base, X-Large Tilt |
$23.50
|
EA |
|
|
| 7 | 001427 | Tube Mount Foot Lock Tilt |
$20.00
|
|
||
| 8 | 001150 | Index Plate Foot Lock Tilt |
$36.99
|
|
||
| 9 | 001397 | Pedal Foot Lock 2-Way Tilt |
$12.23
|
EA |
|
|
| 10 | 001428 | Linkage Foot Lock Short TILT- Used with 12" - 16" rear wheels | Used with 12" - 16" rear wheels |
$30.00
|
|
|
| 11 | 001156 | Pivot Bushing Tilt |
$6.29
|
|
||
| 12 | 001157 | IGUS Bushing GFM-1618-06 |
$17.65
|
|
||
| 13a | 102384 | M8 x 100 HHCS Blk Zc Part THD- Use quantity 1 of 102384 and quantity 1 of 101832 per side when Foot Tilt is present | Use quantity 1 of 102384 and quantity 1 of 101832 per side when Foot Tilt is present |
$4.12
|
|
|
| 13b | 101832 | M8 x 90 HHCS Blk Zn- Use quantity 2 per side when Hand Tilt is present | Use quantity 2 per side when Hand Tilt is present |
$4.12
|
EA |
|
| 14 | 101826 | M6 x 50 HHCS Blk Zn |
$2.36
|
EA |
|
|
| 15 | 101825 | M6 x 40 HHCS Blk Zn |
$1.17
|
EA |
|
|
| 16 | 101824 | M6 x 30 HHCS Blk Zn |
$2.36
|
EA |
|
|
| 17 | 101823 | M6 x 20 HHCS Blk Zn |
$1.17
|
EA |
|
|
| 18 | 101822 | M6 x 12 HHCS BLKZC w/Patch |
$1.17
|
EA |
|
|
| 19 | 100866 | M6 x 20 CLS12.9 DIN7991 FSHCS Blk Zc w/Patch |
$2.94
|
|
||
| 20 | 001141 | Weld Nut NDM 06028 Zinc |
$2.94
|
EA |
|
|
| 21 | 100658 | M6 Nylock Nut Blk Zn |
$1.17
|
EA |
|
|
| 22 | 101861 | Nylon Washer 5/16 x 1/2 x .03 |
$0.60
|
EA |
|
|
| 23 | 101853 | M6 Washer Blk Zn |
$0.60
|
EA |
|
|
| 24 | 100746 | M6 Flat Washer Blk Zn |
$1.77
|
EA |
|
|
| 25 | 101835 | M6 Lock Washer Blk Zn |
$0.60
|
EA |
|
|
| 26 - 29 | 100854 | Brake Extension Replacement |
$39.98
|
EA |
|
|
| 27 | 101117 | M5 x 22 BTN SHCS BLK ZC |
$1.77
|
EA |
|
|
| 28 | 101856 | Flat Washer, M5, Blk Zn |
$0.60
|
EA |
|
|
| 29 | 100657 | M5 Nylock Nut Blk Zn |
$0.60
|
EA |
|
|
| 7, 12 | 501435 | Foot Lock Tube Mount with Bearings Focus |
$27.90
|
EA |
|
