Focus Cr

Name: Focus CR: Focus Cr Dual Hand Tilt Mechanism Reclining Back
Manufacturer: Ki Mobility

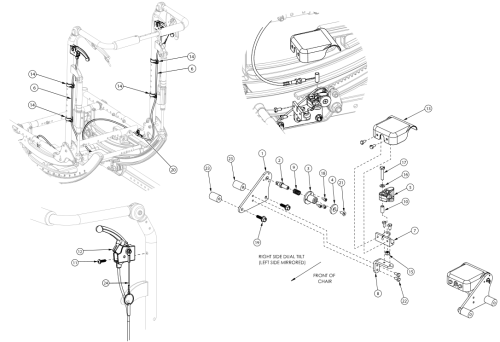

Focus Cr Dual Hand Tilt Mechanism Reclining Back parts diagram
(Click on image to enlarge)

This design effective starting with serial numbers FCR0026599 and FCHD002333. If serial number is prior to FCR0026599 and FCHD002333 new back cane assemblies are required in addition to the hand tilt mechanism.
Pos. Part # Description Price UOM Buy
1 - 5, 7a, 7b, 8 - 10, 13, 15 - 18, 19a, 21, 22 506274 Dual Tilt Lock Mechanism Kit, Focus- For complete dual hand tilt mechanism, select appropriate Hand Tilt Cable/Trigger Kit in addition to this kit
$496.03
EA
1 - 5, 7a, 7b, 8 - 10, 13, 15 - 18, 19b, 21 - 23 506275 Dual Tilt Lock Mechanism Kit, Heavy Duty, Focus- For complete dual hand tilt mechanism, select appropriate Hand Tilt Cable/Trigger Kit in addition to this kit
$622.11
EA
6a, 11, 12, 14, 20 506791 Hand Tilt Cable/Trigger Kit with Medium Cable, Recline, Focus- Used with Short Recline Back Post
$148.43
EA
6b, 11, 12, 14, 20 506792 Hand Tilt Cable/Trigger Kit with Long Cable, Recline, Focus- Used with Tall Recline Back Post
$149.40
EA
1 004280 Mount Plate, Tilt Lock
$16.22
2 004281 Pin, Plunger, Tilt Lock
$69.02
3 004282 Housing, Plunger, Tilt Lock
$11.77
4 004283 Thrust Washer, Tilt Lock
$8.11
EA
5 004284 Cam Lever, Drive, Tilt Lock
$36.21
EA
1 - 5, 7a, 8 - 10, 13, 15 - 18, 19a, 21, 22 506276 Tilt Lock Mechanism Dual Hand, Right
$248.02
EA
1 - 5, 7b, 8 - 10, 13, 15 - 18, 19a, 21, 22 506277 Tilt Lock Mechanism Dual Hand, Left
$248.02
EA
1 - 5, 7a, 8 - 10, 13, 15 - 18, 19b, 21 - 23 506278 Tilt Lock Mechanism Dual Hand, Heavy Duty Right
$311.05
EA
1 - 5, 7b, 8 - 10, 13, 15 - 18, 19b, 21 - 23 506279 Tilt Lock Mechanism Dual Hand, Heavy Duty Left
$311.05
EA
6a 004301 Cable, Tilt, Medium- Used with Short Recline Back Post
$118.78
EA
6b 004302 Cable, Tilt, Long- Used with Tall Recline Back Post
$121.13
EA
7a 004287 Linkage Mount, Right
$51.75
EA
7b 004288 Linkage Mount, Left
$51.75
EA
8 004289 Bracket, Mount, Tilt Lock
$17.40
EA
9 004290 Spring, Comp, .42OD x 1.0L x .038W
$1.17
10 004291 Bushing, Pivot, Tilt Lock
$7.65
11 100734 M5 x 16 PHMS ZC
$1.77
EA
12 002800 Lever Assembly Vertical Tilt
$15.14
EA
11, 12, 24 110139 Lever Assembly with Lanyard Vertical Tilt
$38.06
EA
13 004298 Cover, Tilt Lock
$14.58
EA
14 001117 Cable Clip 1"
$4.28
EA
15 100658 M6 Nylock Nut Blk Zn
$1.17
EA
16 100746 M6 Flat Washer Blk Zn
$1.77
EA
17 101824 M6 x 30 HHCS Blk Zn
$2.36
EA
18 102800 M4 x 8mm SHCS Blk Zn
$0.60
EA
19a 103510 M6 x 1 x 20 HHCS SFLG CLS8.8 Blk Zn DIN6921- Used with Standard Weight Capacity
$1.17
19b 103511 M6 x 1 x 45 HHCS SFLG CLS8.8 Blk Zn DIN6921- Used with Heavy Duty Option
$3.53
20 001239 P-Clip 3/16"
$7.06
EA
21 103522 M5 x 0.8 x 12 FHCS CLS 10.9 Nyl Blk Zn DIN7991
$1.17
EA
22 200427 M5 x 10 CLS8.8 HHCS ZC w/Patch DIN933
$0.60
EA
23 001405 Spacer, .69OD x .24ID x .1.01Lg- Used with Heavy Duty Option
$29.16
24 001124 Pin with Lanyard
$21.17
EA
