Loading...Focus CR

Focus Cr Axle Plate

Name: Focus CR: Focus Cr Axle Plate
Manufacturer: Ki Mobility

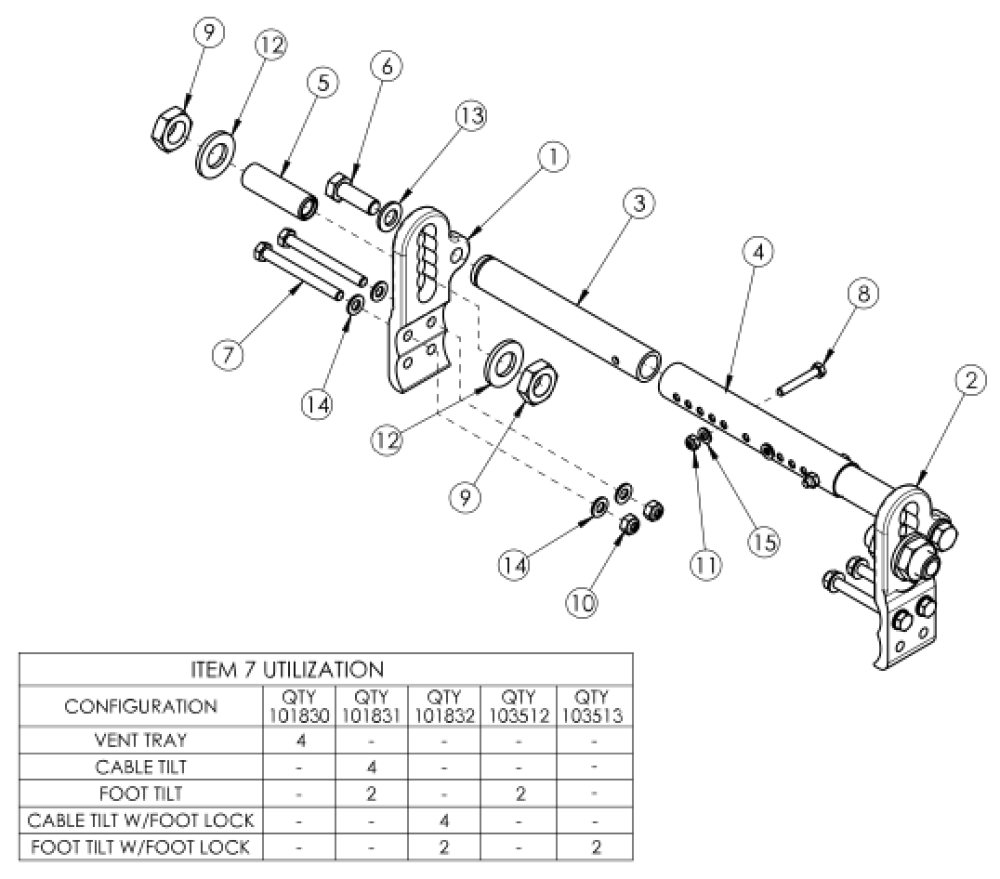

Focus Cr Axle Plate parts diagram
(Click on image to enlarge)

If retrofitting to the Self Propel Axle Plate, new base frames are required. See Focus CR Base Frame or Focus CR Heavy Duty Base Frame page.

For axle plates used with the drum brake, see Focus CR Drum Brake page.

Pos.Part #DescriptionPriceBuy
1a003767Axle Plate Right - Tilt- Replacement for part# 001065 which was used on serial numbers prior to FCR0025346 and FCHD002317
$85.57
1b003159Axle Plate, Self Propel, Right Focus
$139.05
2a003768Axle Plate Left - Tilt- Replacement for part# 001066 which was used on serial numbers prior to FCR0025346 and FCHD002317
$85.57
2b003160Axle Plate, Self Propel, Left Focus
$139.05
3001067Axle Strut Tilt
$40.46
4a001011Growth Strut Base Small Tilt
$18.54
4b001012Growth Strut Base Medium Tilt
$18.54
4c001013Growth Strut Base Large Tilt
$18.54
5001419HD Axle Receiver Tilt
$19.68
6101833HHCS M12 X 1.75 X 35 ENVRBLK W/PRE5, DIN933
$8.24
7a101830M8 x 70 HHCS Blk Zn
$2.58
7b101831M8 x 80 HHCS Blk Zn
$5.67
7c101832M8 x 90 HHCS Blk Zn
$3.61
7d103512M8 x 1.25 x 110 HHCS CLS10.9 Blk Zn DIN931
$4.12
7e103513M8 x 1.25 x 120 HHCS CLS10.9 Blk Zn DIN931
$4.12
8101825M6 x 40 HHCS Blk Zn
$1.03
9101836Nut M20 x 1.5 Thin Blk Zn
$3.61
10100659M8 Nylock Nut Blk Zn
$1.03
11100658M6 Nylock Nut Blk Zn
$1.03
12101855Washer 3/4 SAE G8 Blk Zn
$2.06
13101860Washer Flat M12 Blk Zn
$1.03
14101858Washer Flat M8 Blk Zn
$0.52
15100746M6 Flat Washer Blk Zn
$1.55
1a, 2a, 3, 5 - 7e, 9, 10, 12 - 14506498Axle Plate Assembly Focus PAIR- Replacement for kit# 501445
$392.37
1b, 2b, 3, 5 - 7e, 9, 10, 12 - 14505264Self Propel Axle Plate Assembly Focus- If retrofitting to the Self Propel Axle Plate, new base frames are required
$499.32
