Catalyst 4

Name: Catalyst 4: Catalyst 4 Armrests - Tall Height Adjustable Flip Back T-arm
Manufacturer: Ki Mobility

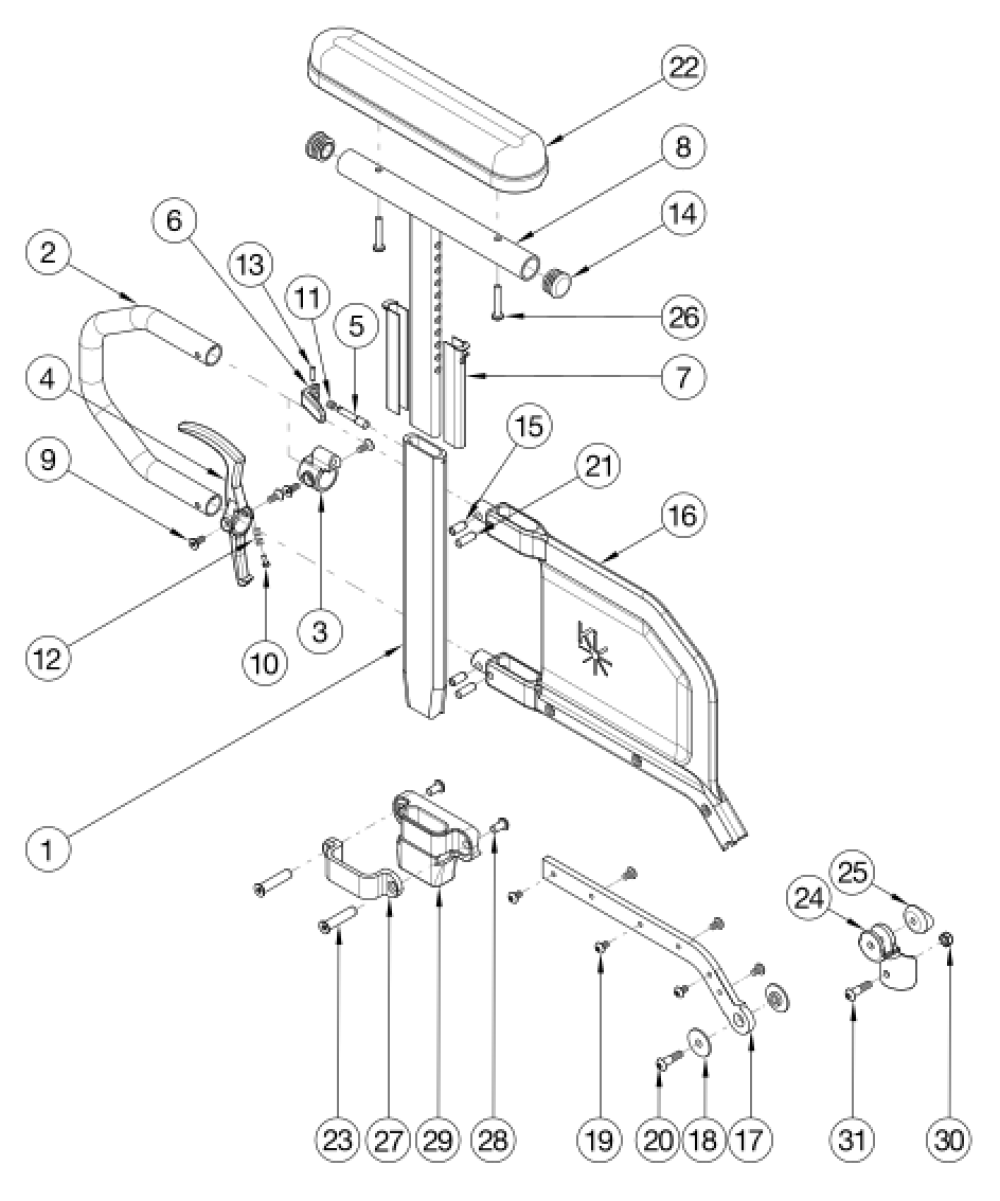

Catalyst 4 Armrests - Tall Height Adjustable Flip Back T-arm parts diagram
(Click on image to enlarge)

Pos. Part # Description Price UOM Buy
1 - 7, 8a, 9 - 15, 16a, 17a, 18 - 21, 22b, 23 - 32 116230 Height Adjustable Tall Flip Back T-Arm Short Desk with Standard Pad and Receiver Assembly, Catalyst 4
$460.61
EA
1 - 7, 8b, 9 - 15, 16a, 17a, 18 - 21, 22a, 23 - 32 116231 Height Adjustable Tall Flip Back T-Arm Short Full with Standard Pad and Receiver Assembly, Catalyst 4
$460.61
EA
1 - 7, 8a, 9 - 15, 16b, 17b, 18 - 21, 22b, 23 - 32 116232 Height Adjustable Tall Flip Back T-Arm Long Desk with Standard Pad and Receiver Assembly, Catalyst 4
$460.61
EA
1 - 7, 8b, 9 - 15, 16b, 17b, 18 - 21, 22a, 23 - 32 116233 Height Adjustable Tall Flip Back T-Arm Long Full with Standard Pad and Receiver Assembly, Catalyst 4
$460.61
EA
1 - 7, 8a, 9 - 15, 16a, 17a, 18 - 21, 22b, 24 - 26, 31, 32 116226 Height Adjustable Tall Flip Back T-Arm Short Desk with Standard Pad Assembly, Catalyst 4
$394.17
EA
1 - 7, 8b, 9 - 15, 16a, 17a, 18 - 21, 22a, 24 - 26, 31, 32 116227 Height Adjustable Tall Flip Back T-Arm Short Full with Standard Pad Assembly, Catalyst 4
$394.17
EA
1 - 7, 8a, 9 - 15, 16b, 17b, 18 - 21, 22b, 24 - 26, 31, 32 116228 Height Adjustable Tall Flip Back T-Arm Long Desk with Standard Pad Assembly, Catalyst 4
$394.17
EA
1 - 7, 8b, 9 - 15, 16b, 17b, 18 - 21, 22a, 24 - 26, 31, 32 116229 Height Adjustable Tall Flip Back T-Arm Long Full with Standard Pad Assembly, Catalyst 4
$394.17
EA
1 - 7, 9 - 13, 15, 16a, 17a, 19, 21 114152 Height Adjustable Flip Back T-Arm Short Lower Assy, Tall- Does not include t-arm upper, arm pad or arm pad screws
$170.30
EA
1 - 7, 9 - 13, 15, 16b, 17b, 19, 21 114153 Height Adjustable Flip Back T-Arm Long Lower Assy, Tall- Does not include t-arm upper, arm pad or arm pad screws
$170.30
EA
1 - 7, 8a, 9 - 15, 16a, 17a, 19, 21 114436 Height Adjustable Flip Back T-Arm Desk, Short, Tall- Does not include arm pad or arm pad screws
$325.86
EA
1 - 7, 8b, 9 - 15, 16a, 17a, 19, 21 114437 Height Adjustable Flip Back T-Arm Short, Full, Tall- Does not include arm pad or arm pad screws
$325.86
EA
1 - 7, 8a, 9 - 15, 16b, 17b, 19, 21 114438 Height Adjustable Flip Back T-Arm Long, Desk, Tall- Does not include arm pad or arm pad screws
$325.86
EA
1 - 7, 8b, 9 - 15, 16b, 17b, 19, 21 114439 Height Adjustable Flip Back T-Arm Long, Full, Tall- Does not include arm pad or arm pad screws
$325.86
EA
1 - 7, 9 - 13, 15, 16a, 17a, 18 - 21, 24, 25 505617 Height Adjustable Flip Back T-Arm Short Retrofit Assembly, Catalyst 4- This kit is used to retrofit from a Height Adjustable T-Arm to a Height Adjustable Flip Back Tall T-Arm. This kit is to retrofit one side.
$216.29
EA
1 - 7, 9 - 13, 15, 16b, 17b, 18 - 21, 24, 25 505618 Height Adjustable Flip Back T-Arm Long Retrofit Assembly, Catalyst 4- This kit is used to retrofit from a Height Adjustable T-Arm to a Height Adjustable Flip Back Tall T-Arm. This kit is to retrofit one side.
$218.64
EA
18, 20, 24, 25 112957 Armrest Flip Back Height Adj T-Arm Hinge Assembly, PAIR, Catalyst 4- This kit is for a pair of hinge assemblies. A pair is required as a replacement as of May 19th, 2021
$46.12
EA
3, 5, 6, 9, 11, 13 504560 Height Adjustable Flip Back T-Arm Latch Assembly
$50.87
EA
4, 9, 10, 12 504561 Height Adjustable Flip Back T-Arm Release Lever Assembly
$13.03
EA
23, 27 - 30 501730 Height Adj T-Arm Receiver Assm 1" CAT
$62.30
EA
31, 32 504577 Height Adjustable Flip Back T-Arm Mounting Hardware Assembly- This kit contains various mounting hardware for multiple configurations
$15.29
EA
1 115983 Height Adjustable Flip Back T-Arm Post Tall
$28.10
EA
2 113138 Height Adjustable T-Arm Transfer Tube, Tall
$36.74
EA
7 000090 Height Adjustable T Armrest Shim
$2.86
8a, 14 112906 Height Adjustable T Armrest Upper Desk w/ Tube End Plug
$85.82
EA
8b, 14 112907 Height Adjustable T Armrest Upper Full w/ Tube End Plug
$85.82
EA
14 100803 Tube End Plug 7/8"
$1.77
EA
15, 16a, 21 113143 Height Adjustable Flip Back T-Arm Short Shield, Tall
$37.31
EA
15, 16b, 21 113142 Height Adjustable Flip Back T-Arm Long Side Shield, Tall
$37.31
EA
17a, 19 504564 Height Adjustable Flip Back T-Arm Metal Insert Short
$37.63
EA
17b, 19 504565 Height Adjustable Flip Back T-Arm Metal Insert Long
$39.99
EA
22a 100500 Arm Pad Full
$26.45
EA
22b 100501 Arm Pad Desk
$26.45
EA
23 100866 M6 x 20 CLS12.9 DIN7991 FSHCS Blk Zc w/Patch
$2.94
26 100696 M5 x 30mm PPH Capscrew
$1.77
EA
27 000065 M6 x 23.68 Threaded Barrel
$4.63
EA
28 000087 Height Adjustable T-Arm Receiver 1"
$17.07
EA
29 000088 Height Adjustable T Armrest Bracket
$30.69
EA
30 100667 M6 x 12 BTN SHCS BLKZC w/Patch
$1.77
EA
