Loading...Catalyst 4

60 Degree Extension Mount Hanger

Name: Catalyst 4: 60 Degree Extension Mount Hanger
Manufacturer: Ki Mobility

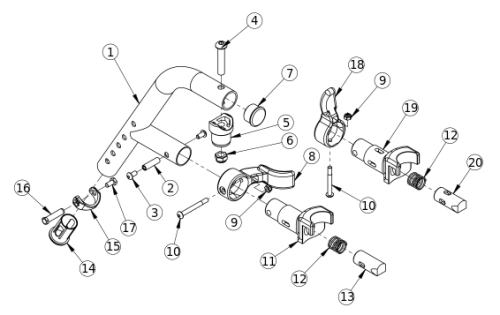

60 Degree Extension Mount Hanger parts diagram
(Click on image to enlarge)

Pos.Part #DescriptionPriceBuy
1 - 17100420_ _ _Hanger Assm 60 Extension Mount Classic Latch Left _ _ _N/APlease Call
1 - 17100419_ _ _Hanger Assm 60 Extension Mount Classic Latch Right _ _ _N/APlease Call
1 - 7, 9, 10, 12, 14 - 20504633_ _ _Hanger Assm 60 Extension Mount 4-Way - In-LineN/APlease Call
1 - 7, 9, 10, 12, 14 - 20504655_ _ _Hanger Assm 60 Extension Mount 4-Way - Out LeftN/APlease Call
1 - 7, 9, 10, 12, 14 - 20504656_ _ _Hanger Assm 60 Extension Mount 4-Way - Out RightN/APlease Call
1, 7, 14100421_ _ _Hanger Tube Assm 60 Extension Mount _ _ _N/APlease Call
8 - 13003417Classic Hanger Latch Assembly, Left
$62.53
8 - 13003416Classic Hanger Latch Assembly, Right
$62.53
9, 10, 12, 18 - 20003225Assembled 4-Way In Line Hanger Release
$36.05
9, 10, 12, 18 - 20003225INSTAssembled 4-Way In Line Hanger Release with Instruction
$36.05
9, 10, 12, 18 - 20003643Assembled 4-Way Out Hanger Release, Left
$36.05
9, 10, 12, 18 - 20003643INSTAssembled 4-Way Out Hanger Release, Left with Instruction
$36.05
9, 10, 12, 18 - 20003642Assembled 4-Way Out Hanger Release, Right
$36.05
9, 10, 12, 18 - 20003642INSTAssembled 4-Way Out Hanger Release, Right with Instruction
$36.05
2000073M5 x 24 Threaded Barrel
$3.71
3100669M5 x 10 BTN SHCS BLKZC w/Patch
$1.55
4100673M8 x 45 BTN SHCS BLKZC
$1.55
5000032Footrest Hanger Pivot Saddle
$5.15
6100659M8 Nylock Nut Blk Zn
$1.03
7100804Tube End Plug 1"
$1.55
8001158Lever Swing Away Short
$7.17
9100657M5 Nylock Nut Blk Zn
$0.52
10001374M5 x 40 BHCS P/THD BLKZC
$2.10
11000031Hanger Bracket
$23.26
12000119Hanger Spring
$2.99
13000352Hanger Release Pin
$14.96
14000034Sleeve 3/4" x 1 1/2"
$3.59
15000988Fastener Retainer
$3.86
16000987Threaded Fastener
$3.71
17200427M5 x 10 CLS8.8 HHCS ZC w/Patch DIN933
$0.52
18003228Hanger Latch, 4-Way, Lever
$3.09
18003228INSTHanger Latch, 4-Way, Lever with Instruction
$3.09
19003226Hanger Latch, 4-Way, Bracket
$5.15
19003226INSTHanger Latch, 4-Way, Bracket with Instruction
$5.15
20003227Hanger Latch, 4-Way, Pin
$19.57
20003227INSTHanger Latch, 4-Way, Pin with Instruction
$19.57
