Catalyst 4

Name: Catalyst 4: Catalyst Height Adjustable T-arm
Manufacturer: Ki Mobility

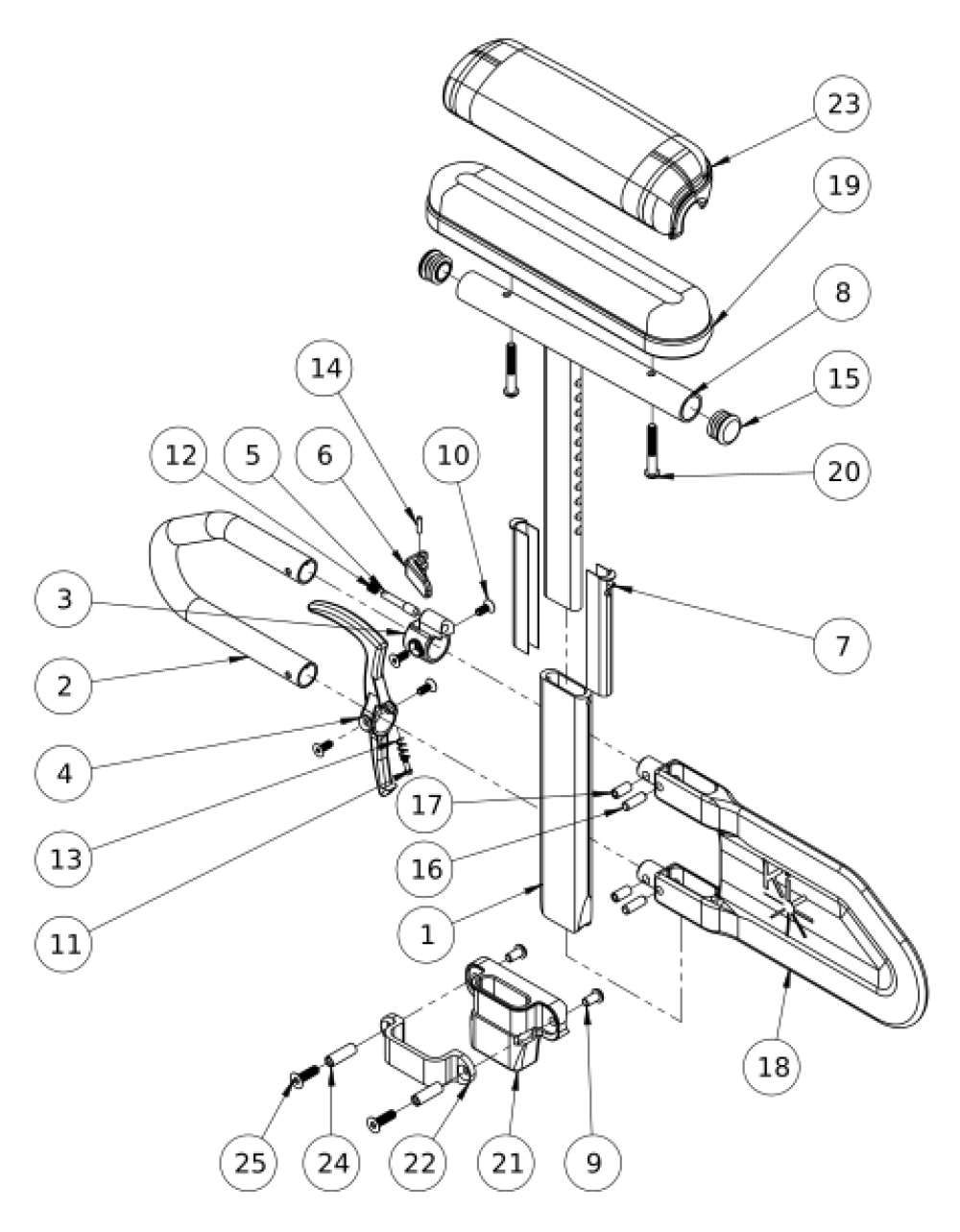

Catalyst Height Adjustable T-arm parts diagram
(Click on image to enlarge)

Pos. Part # Description Price UOM Buy
1 - 7, 8a, 9 - 18a, 19a, 20a, 21, 22, 24, 25 505500 Height Adj T-Arm Assm w/ Long Side Shield and Standard Pad Full, 1" Receiver, PAIR CAT
$605.32
EA
1 - 7, 8a, 9 - 18a, 19a, 20a, 21, 22, 24, 25 505499 Height Adj T-Arm Assm w/ Long Side Shield and Standard Pad Full, 1" Receiver
$302.66
EA
1 - 7, 8a, 9 - 18b, 19a, 20a, 21, 22, 24, 25 505653 Height Adj T-Arm Assm w/ Short Side Shield and Standard Pad Full, 1" Receiver, PAIR CAT
$605.32
EA
1 - 7, 8a, 9 - 18b, 19a, 20a, 21, 22, 24, 25 505652 Height Adj T-Arm Assm w/ Short Side Shield and Standard Pad Full, 1" Receiver
$302.66
EA
1 - 7, 8a, 9 - 18a, 19b, 20a, 21, 22, 24, 25 505502 Height Adj T-Arm Assm w/ Long Side Shield and Standard Pad Desk, 1" Receiver, PAIR CAT
$605.32
EA
1 - 7, 8a, 9 - 18a, 19b, 20a, 21, 22, 24, 25 505501 Height Adj T-Arm Assm w/ Long Side Shield and Standard Pad Desk, 1" Receiver CAT
$302.66
EA
1 - 7, 8a, 9 - 18b, 19b, 20a, 21, 22, 24, 25 505655 Height Adj T-Arm Assm w/ Short Side Shield and Standard Pad Desk, 1" Receiver, PAIR CAT
$605.32
EA
1 - 7, 8a, 9 - 18b, 19b, 20a, 21, 22, 24, 25 505654 Height Adj T-Arm Assm w/ Short Side Shield and Standard Pad Desk, 1" Receiver CAT
$302.66
EA
1 - 7, 8a, 9 - 18a, 20b, 21, 22, 23a, 24, 25 505504 Height Adj T-Arm Assm w/ Long Side Shield and Waterfall Pad Full, 1" Receiver, PAIR CAT
$626.88
EA
1 - 7, 8a, 9 - 18a, 20b, 21, 22, 23a, 24, 25 505503 Height Adj T-Arm Assm w/ Long Side Shield and Waterfall Pad Full, 1" Receiver CAT
$313.44
EA
1 - 7, 8a, 9 - 18b, 20b, 21, 22, 23a, 24, 25 505657 Height Adj T-Arm Assm w/ Short Side Shield and Waterfall Pad Full, 1" Receiver, PAIR CAT
$626.88
EA
1 - 7, 8a, 9 - 18b, 20b, 21, 22, 23a, 24, 25 505656 Height Adj T-Arm Assm w/ Short Side Shield and Waterfall Pad Full, 1" Receiver CAT
$313.44
EA
1 - 7, 8a, 9 - 18a, 20b, 21, 22, 23b, 24, 25 505506 Height Adj T-Arm Assm w/ Long Side Shield and Waterfall Pad Desk, 1" Receiver, PAIR CAT
$626.88
EA
1 - 7, 8a, 9 - 18a, 20b, 21, 22, 23b, 24, 25 505505 Height Adj T-Arm Assm w/ Long Side Shield and Waterfall Pad Desk, 1" Receiver CAT
$313.44
EA
1 - 7, 8a, 9 - 18b, 20b, 21, 22, 23b, 24, 25 505659 Height Adj T-Arm Assm w/ Short Side Shield and Waterfall Pad Desk, 1" Receiver, PAIR CAT
$626.88
EA
1 - 7, 8a, 9 - 18b, 20b, 21, 22, 23b, 24, 25 505658 Height Adj T-Arm Assm w/ Short Side Shield and Waterfall Pad Desk, 1" Receiver CAT
$313.44
EA
1 - 7, 8a, 10 - 18a, 19a, 20a 505492 Height Adj T-Arm Assm w/ Long Side Shield and Standard Pad Full, PAIR
$525.61
EA
1 - 7, 8a, 10 - 18a, 19a, 20a 505491 Height Adj T-Arm Assm w/ Long Side Shield and Standard Pad Full
$262.81
EA
1 - 7, 8a, 10 - 18b, 19a, 20a 505645 Height Adjustable T-Arm Assembly w/ Short Side Shield and Standard Pad Full, Pair
$525.61
EA
1 - 7, 8a, 10 - 18b, 19a, 20a 505644 Height Adjustable T-Arm Assembly w/ Short Side Shield and Standard Pad Full
$262.81
EA
1 - 7, 8a, 10 - 18a, 19b, 20a 505494 Height Adj T-Arm Assm w/ Long Side Shield and Standard Pad Desk, PAIR
$525.61
EA
1 - 7, 8a, 10 - 18a, 19b, 20a 505493 Height Adj T-Arm Assm w/ Long Side Shield and Standard Pad Desk
$262.81
EA
1 - 7, 8a, 10 - 18b, 19b, 20a 505647 Height Adjustable T-Arm Assembly w/ Short Side Shield and Standard Pad Desk, Pair
$525.61
EA
1 - 7, 8a, 10 - 18b, 19b, 20a 505646 Height Adjustable T-Arm Assembly w/ Short Side Shield and Standard Pad Desk
$262.81
EA
1 - 7, 8a, 10 - 18a, 20b, 23a 505496 Height Adj T-Arm Assm w/ Long Side Shield and Waterfall Pad Full, PAIR
$546.12
EA
1 - 7, 8a, 10 - 18a, 20b, 23a 505495 Height Adj T-Arm Assm w/ Long Side Shield and Waterfall Pad Full
$273.05
EA
1 - 7, 8a, 10 - 18b, 20b, 23a 505649 Height Adjustable T-Arm Assembly w/ Short Side Shield and Waterfall Pad Full, Pair
$546.12
EA
1 - 7, 8a, 10 - 18b, 20b, 23a 505648 Height Adjustable T-Arm Assembly w/ Short Side Shield and Waterfall Pad Full
$273.05
EA
1 - 7, 8a, 10 - 18a, 20b, 23b 505498 Height Adj T-Arm Assm w/ Long Side Shield and Waterfall Pad Desk, PAIR
$546.12
EA
1 - 7, 8a, 10 - 18a, 20b, 23b 505497 Height Adj T-Arm Assm w/ Long Side Shield and Waterfall Pad Desk
$273.05
EA
1 - 7, 8a, 10 - 18b, 20b, 23b 505651 Height Adjustable T-Arm Assembly w/ Short Side Shield and Waterfall Pad Desk, Pair
$546.12
EA
1 - 7, 8a, 10 - 18b, 20b, 23b 505650 Height Adjustable T-Arm Assembly w/ Short Side Shield and Waterfall Pad Desk
$273.05
EA
3, 5, 6, 10, 12, 14 505490 Height Adjustable T-Arm Upper Latch Assembly
$45.41
EA
4, 10, 11, 13 505507 Height Adjustable T-Arm Release Lever Assembly
$9.50
EA
16, 17, 18a 505508 Height Adj T-Arm Long Side Shield Assembly
$43.85
EA
16, 17, 18b 506082 Height Adjustable T-Arm Short Shield Assembly
$18.40
EA
9, 21, 22, 24, 25 501730 Height Adj T-Arm Receiver Assm 1" CAT
$62.30
EA
1 - 7, 10 - 14, 16, 17, 18b 004160 Height Adjustable T-Arm Lower Assembly Short- Does not include t-arm upper, arm pad or arm pad screws
$148.81
EA
1 - 7, 10 - 14, 16, 17, 18a 004161 Height Adjustable T-Arm Lower Assembly Long- Does not include t-arm upper, arm pad or arm pad screws
$148.81
EA
1 - 7, 8a, 10 - 18a 003465 Height Adjustable T-Arm Long Desk- Does not include arm pad or arm pad screws
$232.80
EA
1 - 7, 8b, 10 - 18a 003466 Height Adjustable T-Arm Long Full- Does not include arm pad or arm pad screws
$232.80
EA
1 - 7, 8a, 10 - 18b 003463 Height Adjustable T-Arm Short Desk- Does not include arm pad or arm pad screws
$232.80
EA
1 - 7, 8b, 10 - 18b 003464 Height Adjustable T-Arm Short Full- Does not include arm pad or arm pad screws
$232.80
EA
1 000089 Height Adjustable T Armrest Post
$28.10
EA
2 000095 Height Adjustable T Armrest Transfer Tube
$31.41
EA
7 000090 Height Adjustable T Armrest Shim
$2.86
8a, 15 112906 Height Adjustable T Armrest Upper Desk w/ Tube End Plug
$85.82
EA
8b, 15 112907 Height Adjustable T Armrest Upper Full w/ Tube End Plug
$85.82
EA
9 100667 M6 x 12 BTN SHCS BLKZC w/Patch
$1.77
EA
10 003458 M5 X 12mm FHCS BLK ZN W/ Patch
$1.17
11 000152 Height Adjustable T Armrest Release Spring Button
$1.21
EA
13 000135 Height Adjustable T Armrest Release Lever Spring
$1.21
EA
15 100803 Tube End Plug 7/8"
$1.77
EA
16 003641 .25" x .75" Dowel Pin
$1.17
EA
17 003457 M5 x 14mm Barrel Nut
$1.17
EA
19a 100500 Arm Pad Full
$26.45
EA
19b 100501 Arm Pad Desk
$26.45
EA
20a 100696 M5 x 30mm PPH Capscrew- Used with Standard Arm Pads
$1.77
EA
20b 100654 M5 x 40 DIN7985 PH Pan HD M/S ZC- Used with Waterfall Arm Pads
$1.77
21 000087 Height Adjustable T-Arm Receiver 1"
$17.07
EA
22 000088 Height Adjustable T Armrest Bracket
$30.69
EA
23a 102452 Waterfall Arm Pad Full
$36.71
EA
23b 102521 Waterfall Arm Pad Desk
$36.71
EA
24 000065 M6 x 23.68 Threaded Barrel
$4.63
EA
25 100866 M6 x 20 CLS12.9 DIN7991 FSHCS Blk Zc w/Patch
$2.94
